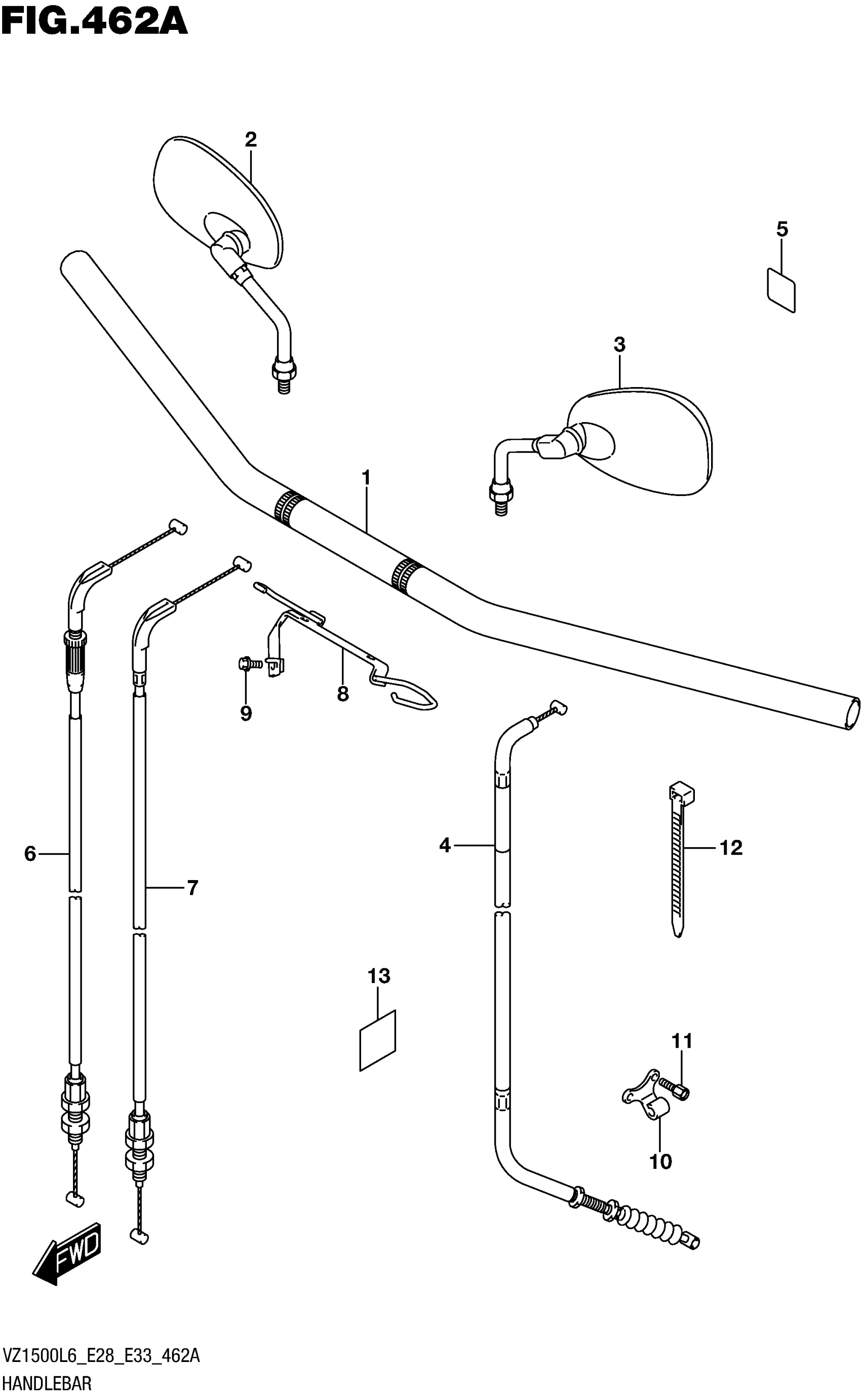

Suzuki VZ1500L6 (2016) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-40H10

$329.65

2

MIRROR ASSY, REAR VIEW RH

56500-41F90

$171.78

3

MIRROR ASSY, REAR VIEW LH

56600-41F90

$170.95

4

CABLE ASSY, CLUTCH

58200-40H00

$94.90

5

TAPE, HEAD PIPE

87873-56K50

$11.18

6

CABLE ASSY, THROTTLE NO.1

58300-40H00

$48.82

7

CABLE ASSY, THROTTLE NO.2

58300-40H10

$42.68

8

GUIDE, CABLE

58620-40H00

Unavailable

9

BOLT

01547-0612B

$1.22

10

STOPPER, CABLE

58634-40H00

$17.40

11

BOLT

01547-0612A

$2.01

12

CLAMP (L:190)

09407-19401

$3.32

13

PROTECTOR, WIRING HARNESS

36611-41F00

Unavailable
