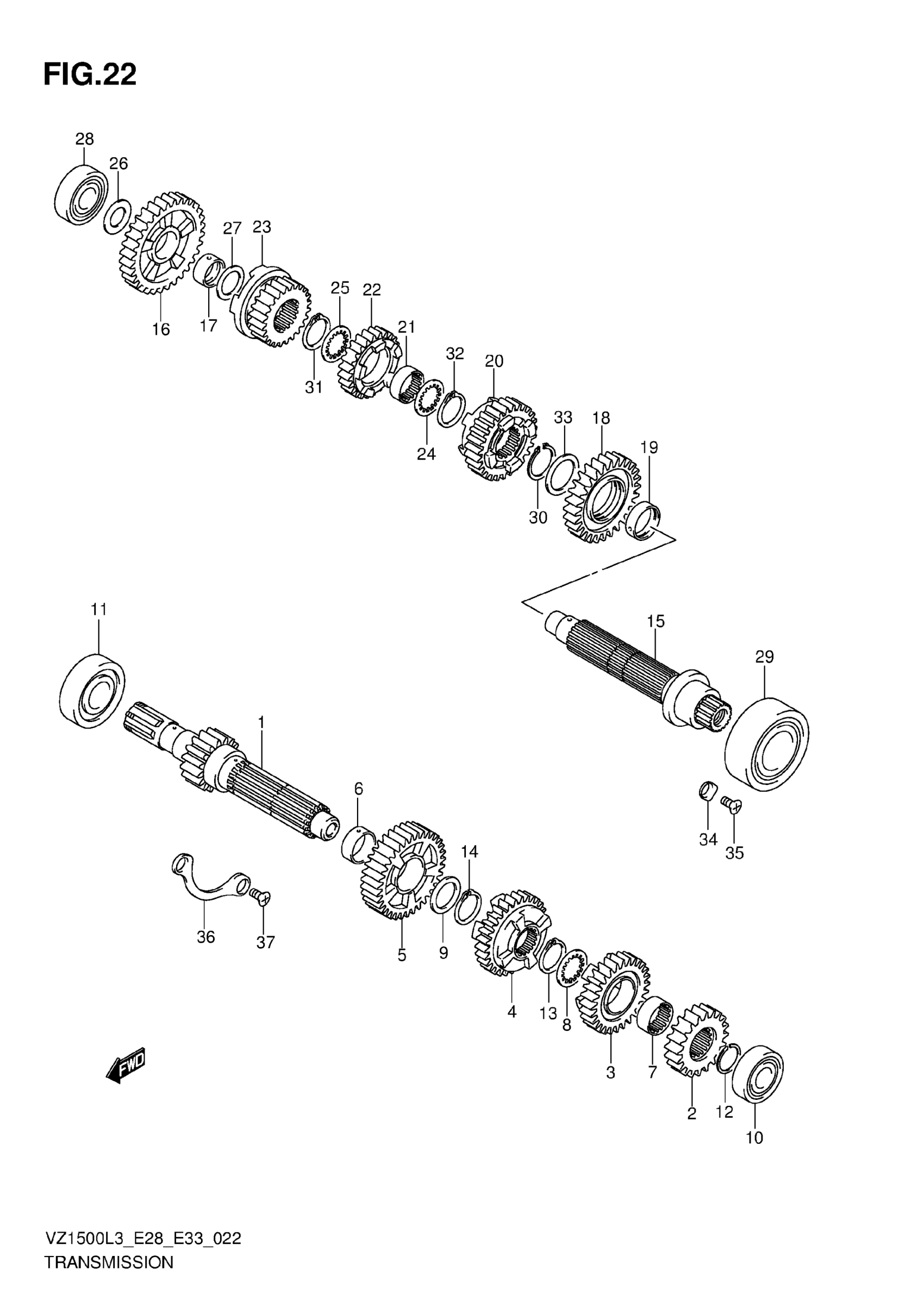

Find the part on the Transmission diagram for your 2013 Suzuki VZ1500L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ1500L3 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CNTR (NT:16)

24120-40H00

1

$273.42

In stock

2

1

$172.47

In stock

3

1

$207.97

In stock

4

1

$248.58

In stock

5

1

$241.17

In stock

6

BUSH, 5TH DRIVE GEAR

24252-24F10

1

$40.03

In stock

7

BUSH, 3RD DRIVE GEAR

24262-24F10

1

$40.03

In stock

8

LOCK WASHER

09167-27003

1

$7.38

In stock

9

SHIM (27X36X2.5)

09181-27014

1

$6.87

In stock

10

1

$42.13

In stock

11

1

$79.03

In stock

12

CIRCLIP

09380-27004

1

$3.58

In stock

13

CIRCLIP

09380-27006

1

$2.92

In stock

14

CIRCLIP

09380-27006

1

$2.92

In stock

15

SHAFT, DRIVE

24130-40H00

1
Out of stock

16

1

$232.28

In stock

17

BUSH, 1ST DRIVEN GEAR

24312-24F10

1

$40.03

In stock

18

1

$232.28

In stock

19

BUSH, 2ND DRIVEN GEAR

24322-48G00

1

$36.25

In stock

20

1

$249.22

In stock

21

BUSH, 4TH DRIVEN GEAR

24332-24F10

1

$38.53

In stock

22

1

$217.12

In stock

23

1

$232.80

In stock

24

LOCK WASHER | LH

09167-30008

1

$6.65

In stock

25

LOCK WASHER | RH

09167-30008

1

$6.65

In stock

26

SHIM (22X34X1) | RH

09181-22223

1

$3.97

In stock

27

SHIM (24X34X1) | LH

09181-24005

1

$3.46

In stock

28

1

$76.22

In stock

29

BEARING (35X72X27) | LH

09267-35004

1
Out of stock

30

CIRCLIP

09380-30009

1

$3.39

In stock

31

CIRCLIP | RH

09380-30009

1

$3.39

In stock

32

CIRCLIP | LH

09380-30009

1

$3.39

In stock

33

WASHER

08211-30403

1

$4.45

In stock

34

RETAINER

24741-20A00

2

$2.92

In stock

35

SCREW (6X12)

09126-06011

2
Out of stock

36

1

$11.37

In stock

37

SCREW (6X12)

09126-06011

2
Out of stock
