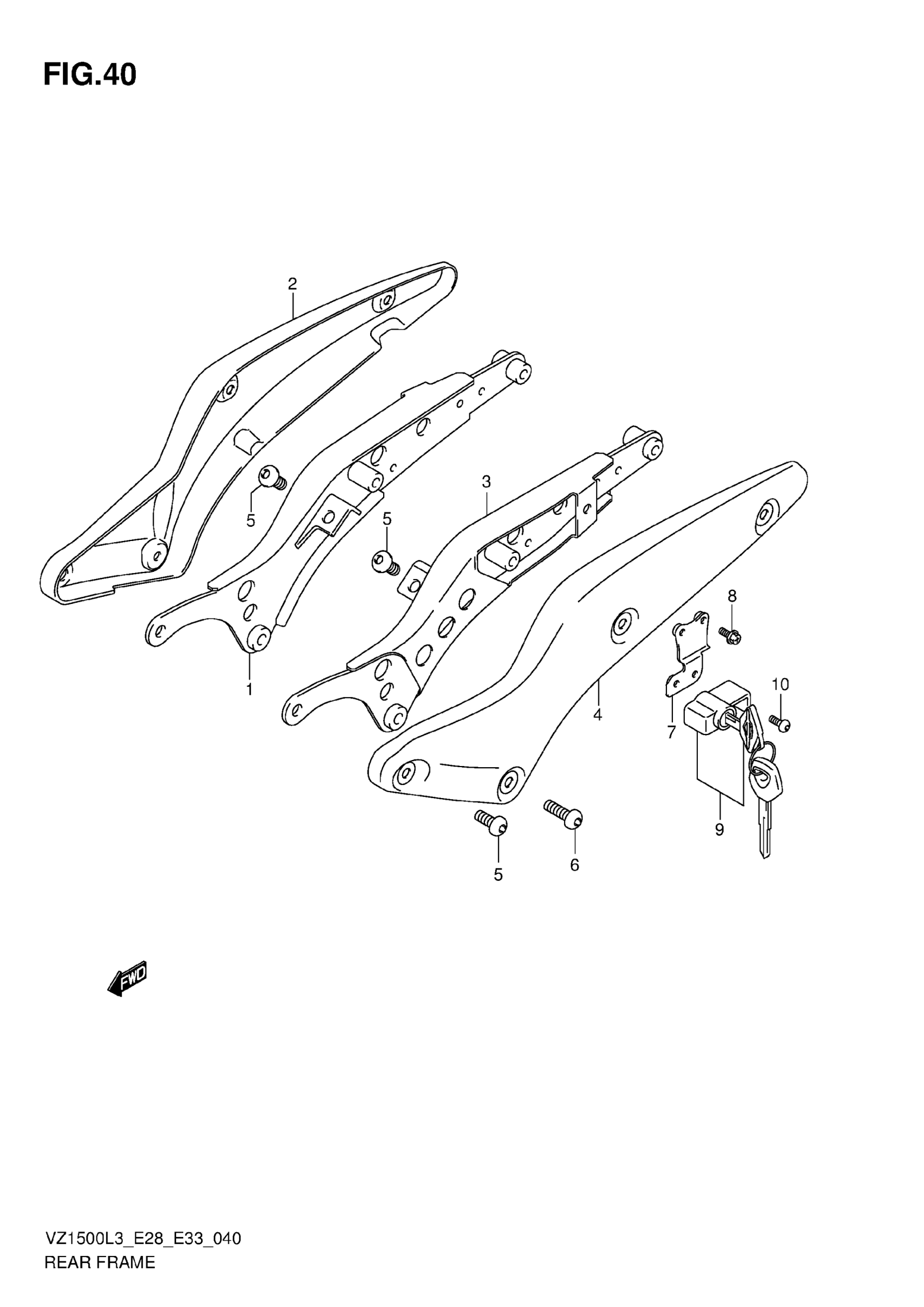

Suzuki VZ1500L3 (2013) REAR FRAME Diagram

#

Description
Price

1

FRAME, REAR RH

42650-40H01

$263.08

2

PLATE, REAR FRAME RH

42651-40H00

Unavailable

3

FRAME, REAR LH

42660-40H01

Unavailable

4

PLATE, REAR FRAME LH

42661-40H00

$629.05

5

BOLT (10X25)

09139-10003

$6.34

6

BOLT (10X35)

09139-10005

$10.33

7

BRACKET, LOCK

95710-40H00

Unavailable

8

SCREW

02162-0612A

$1.93

9

LOCK SET HELMET

95700-41821

$171.60

10

SCREW (6X14)

09139-06089

$3.30
