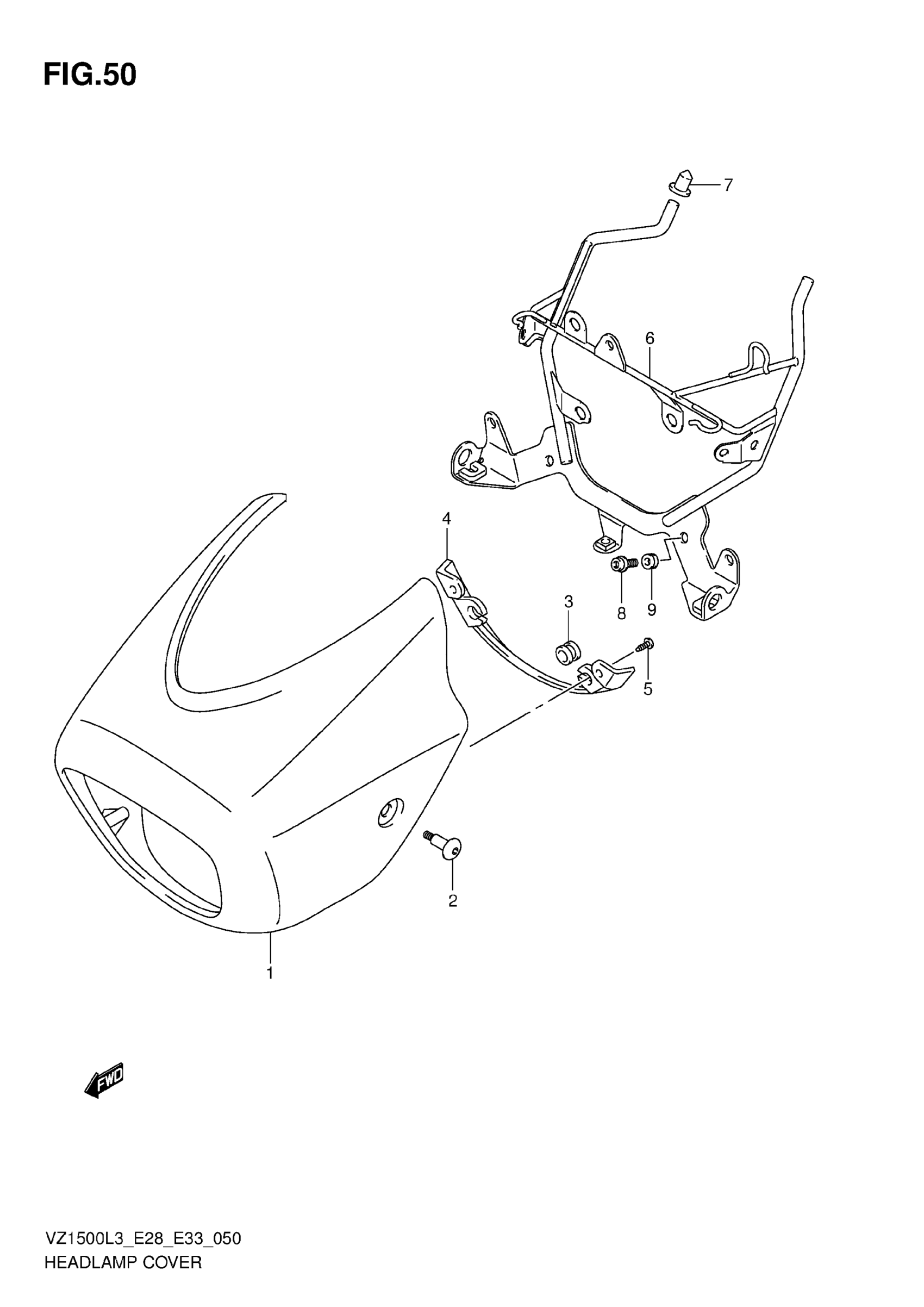

Suzuki VZ1500L3 (2013) HEADLAMP COVER Diagram

#

Description
Price

1

COVER, HEADLAMP (GRAY)

51811-40H00-YLF

$298.73

1

COVER, HEADLAMP (BLACK)

51811-40H00-YVB

$276.85

2

SCREW (6X22)

09139-06191

$3.69

3

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

4

PLATE

51812-40H00

$16.88

5

SCREW

03541-0516A

$1.37

6

BRACE, COVER

51850-40H10

$314.32

7

CUSHION

51831-21D00

$4.31

8

BOLT

07120-0816A

$2.80

9

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12
