2013 Suzuki VZ1500L3 Front Wheel Diagram

← All diagrams

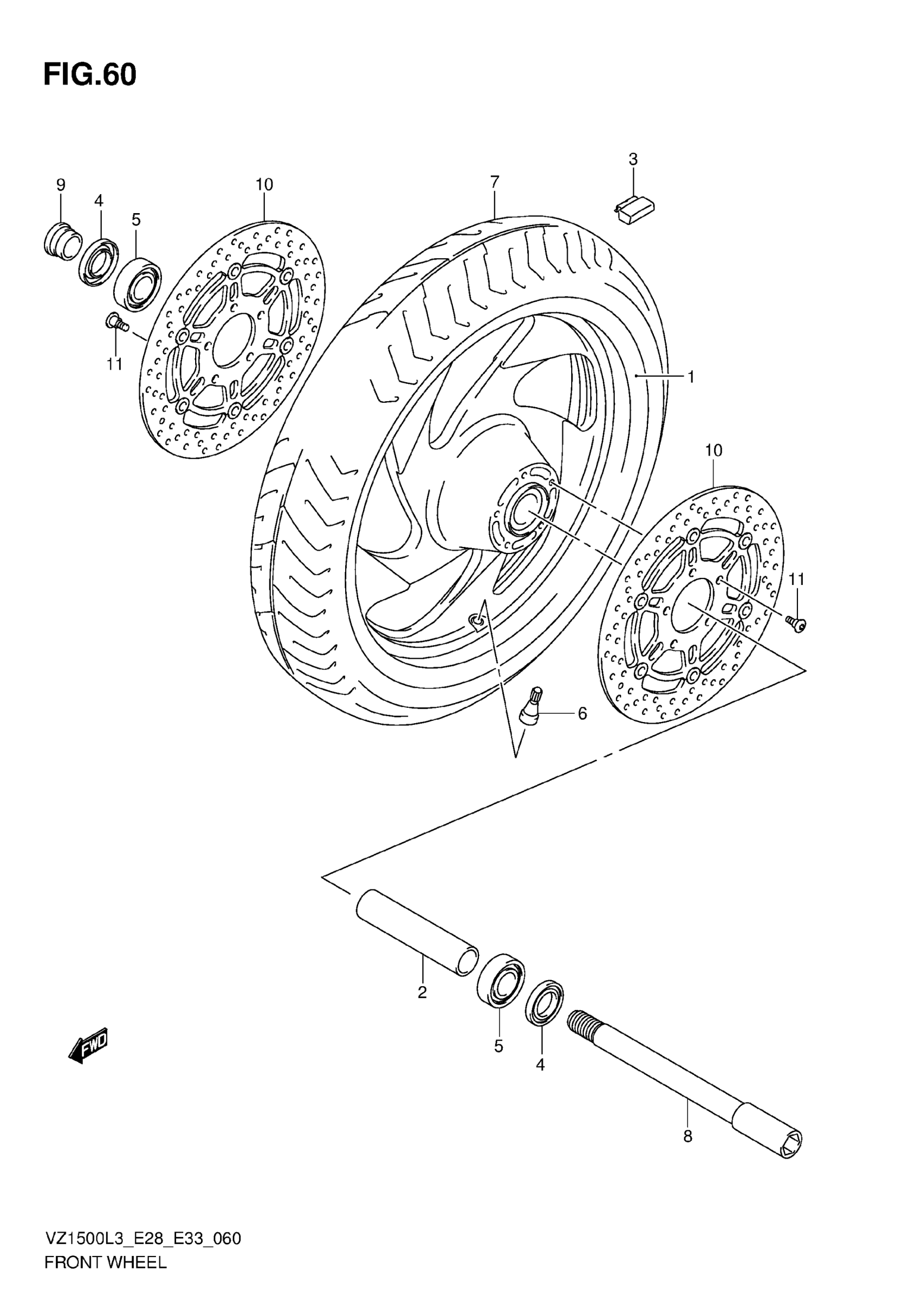

Find the part on the Front Wheel diagram for your 2013 Suzuki VZ1500L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ1500L3 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (18M/CXMT3.50) (SILVER)

54111-40H00-20H

1
Out of stock

2

SPACER, FRONT WHEEL BEARING

54731-48G00

1
Out of stock

3

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

3

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

BEARING (25X52X15)

09262-25072

2
Out of stock

6

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

7

TIRE, FRONT (120/70ZR18M/C)

55110-40H00

1
Out of stock

8

AXLE, FRONT

54711-48G00

1
Out of stock

9

SPACER, FRONT AXLE LH

54741-48G00

1
Out of stock

10

DISC, FRONT BRAKE

59210-08F30

2
Out of stock

11

BOLT (8X21)

09106-08160

10
Out of stock
