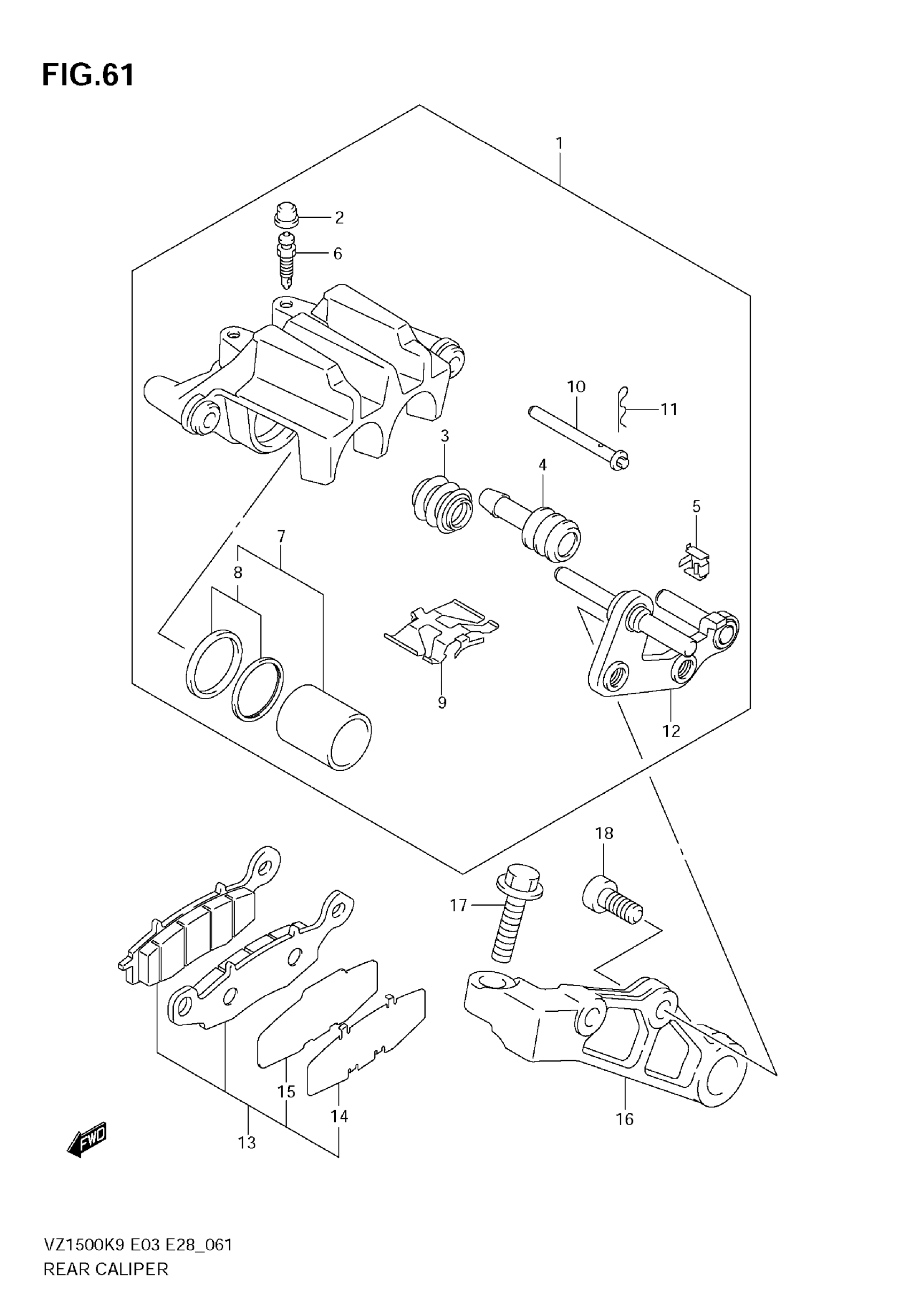

2009 Suzuki VZ1500 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZ1500 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 12

69100-01D40-999

1
Out of stock

2

CAP, BLEEDER PLUG

55156-66310

2
Out of stock

3

BOOT, AXLE

59112-44B00

1
Out of stock

4

INSULATOR, AXLE

59113-01D00

1
Out of stock

5

.GUIDE, PAD

59116-33D00

1
Out of stock

6

BLEEDER

59121-03B00

2
Out of stock

7

PISTON SET

69100-01840

1
Out of stock

8

SEAL SET, PISTON

59300-33841

1
Out of stock

9

SPRING, PAD

69115-01D40

1
Out of stock

10

PIN, PAD

69141-01D40

1
Out of stock

11

.CLIP, PAD PIN

69142-45000

1
Out of stock

12

CARRIER, CALIPER

69150-01D40

1
Out of stock

13

PAD & SHIM SET | Includes Item(s) 14 - 15

69100-01890

1
Out of stock

14

.SHIM, PAD NO.2

59172-33D00

1
Out of stock

15

INSULATOR

69172-01D40

1
Out of stock

16

BRACKET, REAR CALIPER

69721-48G20

1
Out of stock

17

BOLT, CALIPER BRACKET

09103-12109

1
Out of stock

18

BOLT, REAR CALIPER

09106-10062

2
Out of stock
