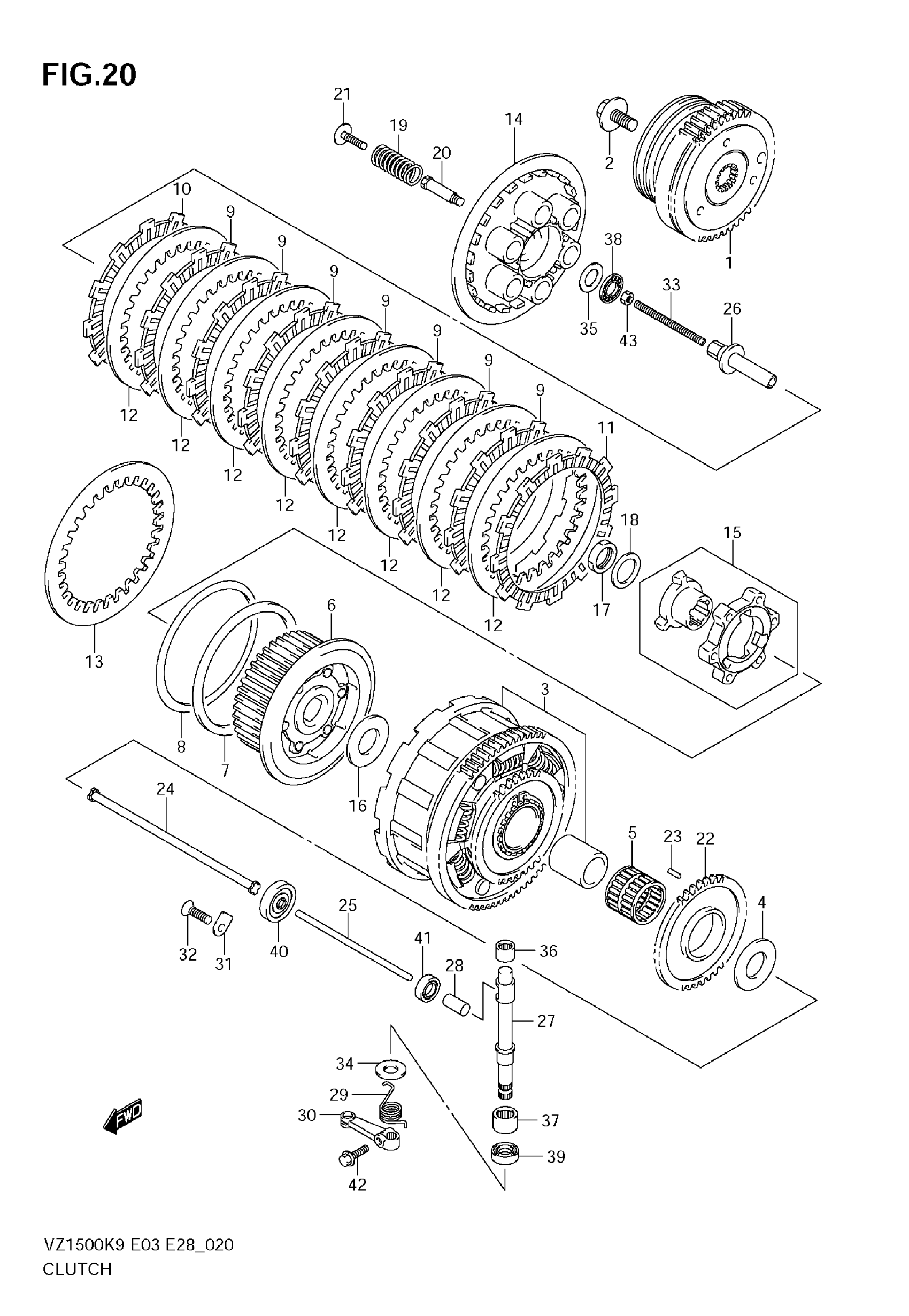

Suzuki VZ1500 (2009) CLUTCH Diagram

#

Description
Price

1

GEAR SET,PRI DR This part replaces 21100-40810.

21100-40811

$797.73

2

BOLT, PRI DRIVE (14X28)

09103-14010

$19.02

3

GEAR This part replaces 21200-40890.

21200-40891

$608.33

4

WASHER, PRI (70X112X1.0)

09160-25074

$10.00

5

BEARING (35X40X39.8)

09263-35013

$33.05

6

HUB, SLEEVE

21410-40H00

Unavailable

7

.SEAT,WAVE WASHER

21471-24F00

$13.64

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.25

9

PLATE, CLUTCH DRIVE NO.1

21441-24F40

$40.03

10

PLATE, CLUTCH DRIVE NO.2

21441-24F10

$22.99

11

PLATE, CLUTCH DRIVE NO.3

21442-24F00

$23.09

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.09

13

PLATE, CLUTCH DRIVEN, NO.2

21451-24F10

$11.09

14

DISC, CLUTCH PRESSURE

21462-16G00

$76.32

15

CAM SET, CLUTCH

21610-02F20

$277.12

16

WASHER, CLUTCH SLEEVE | 25X50X3.5

09160-25079

Unavailable

17

NUT, CLUTCH SLEEVE HUB

09159-24010

$12.27

18

WASHER, CLUTCH SLEEVE

09164-24008

$5.00

19

SPRING, CLUTCH

21413-40H00

$8.91

20

BOLT, CLUTCH SPRING SUPPORT This part replaces 21481-24F30.

21481-24F32

$9.72

21

BOLT, CLUTCH SPRING

21482-24F30

$3.37

22

GEAR, OIL PUMP DRIVE (NT:55)

16321-40H00

Unavailable

23

PIN

09261-04009

$1.56

24

ROD, CLUTCH

23110-24F00

$21.87

25

ROD, CLUTCH PUSH, L

23111-40H00

Unavailable

26

PIECE, CLUTCH PUSH

23121-41G00

$55.32

27

CAMSHAFT, CLUTCH RELEASE

23122-40H00

Unavailable

28

CAP, CLUTCH PUSH ROD

23123-41G00

$10.46

29

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

30

ARM, CLUTCH RELEASE

23271-48G00

$86.48

31

RETAINER

24741-20A00

$2.80

32

SCREW, CL PUSH | 6X12

09126-06011

$2.09

33

SCREW, CLUTCH PUSH ROD

09134-06015

$6.44

34

WASHER, CLUTCH RELEASE | 10.5X24X1.0

09160-10020

$1.93

35

WASHER, CLUTCH PUSH PIECE | 15.5X28X1.0

09160-15045

$3.62

36

BEARING, CL RLSE CAM LOWER | 10X14X10

09263-10014

$12.57

37

BEARING, CL RLSE CAM UPPER | 12X18X12

09263-12027

$6.79

38

BEARING, CLUTCH PUSH PIECE | 15X28X2.0

09263-15003

$7.70

39

SEAL, CL RLSE CAMSHAFT OIL | 10X20X6

09282-10012

$7.42

40

SEAL, CLUTCH PUSH ROD OIL | 6X18X5

09283-06005

$12.27

41

SEAL, CLUTCH PUSH ROD CAP | 10X17X5

09285-10004

$3.13

42

BOLT, CL RELEASE ARM

01547-0620A

$2.10

43

NUT, CLUTCH RELEASE ADJ

08310-0006A

$1.89
