1996 Yamaha Vmax-4 800 (VX800W) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1996 Yamaha Vmax-4 800 (VX800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

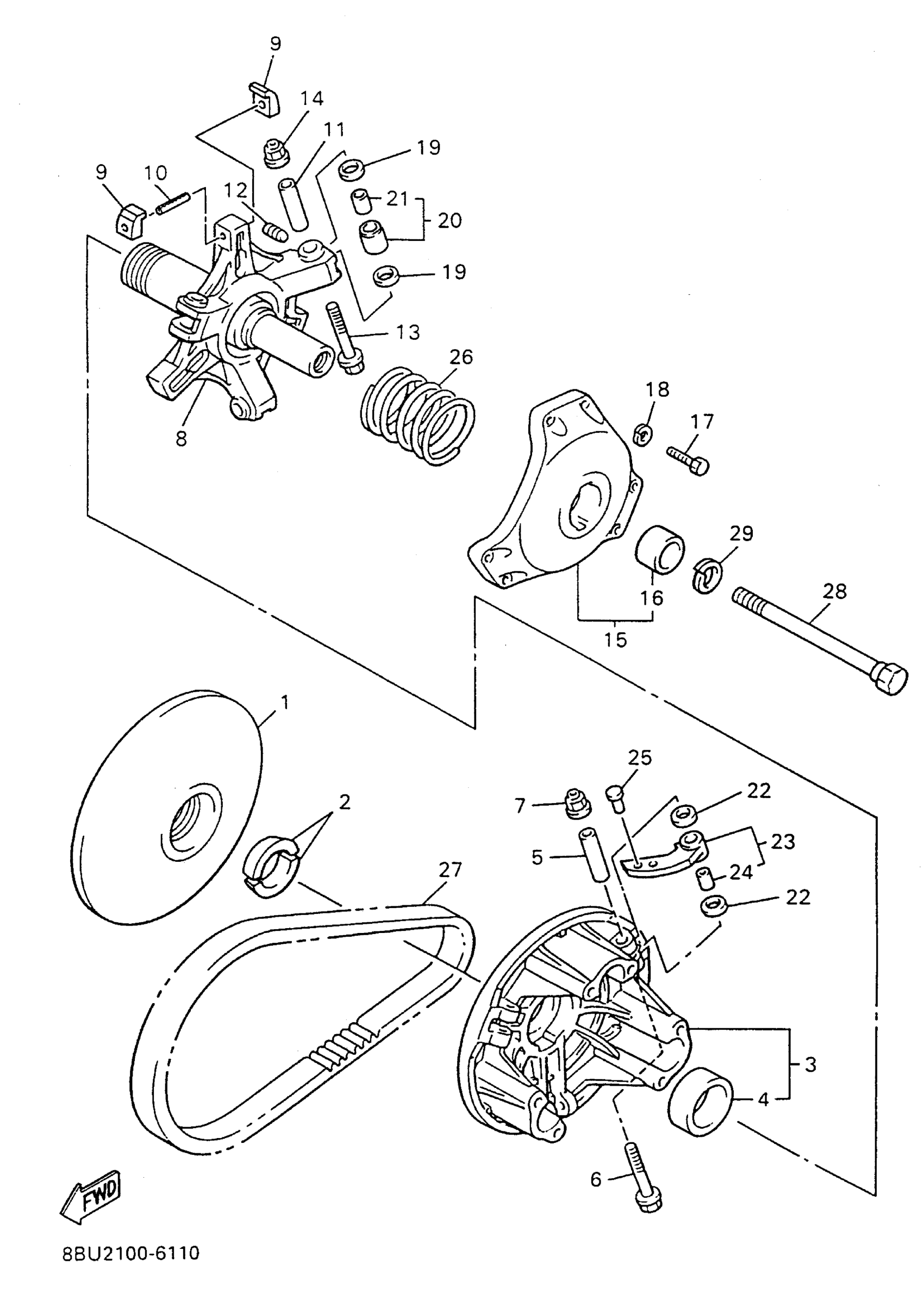

1996 Yamaha Vmax-4 800 (VX800W) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8BV-17611-19-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1
Out of stock

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

1
Out of stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

7

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

8

SPIDER COMPLETE

8BW-17640-11-00

—
Out of stock

9

SLIDER

8BW-17653-00-00

1
Out of stock

10

PIN, SPRING (7F7)

91609-50032-00

1
Out of stock

11

COLLAR

90387-0514T-00

1
Out of stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

14

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

15

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

—
Out of stock

16

. BUSH, BIMETAL FORMED

90384-28244-00

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—
Out of stock

18

WASHER(6TA)

92907-06600-00

—
Out of stock

19

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

20

ROLLER, COMP

8BH-17624-00-00

1
Out of stock

21

. BUSH, SOLID

90380-08244-00

1
Out of stock

22

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

23

WEIGHT COMP

8BU-17605-00-00

—
Out of stock

24

. BUSH, SOLID

90380-08244-00

1
Out of stock

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

—
Out of stock

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

—
Out of stock

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

—
Out of stock

26

SPRING, COMPRESSION(89L)

90501-521J6-00

—
Out of stock

26

PRIMARY SPRING

90501-525J8-00

—
Out of stock

26

SPRING, COMPRESSION(8AV)

90501-550J8-00

—
Out of stock

26

SPRING, COMPRESSION(8AY)

90501-582J1-00

—
Out of stock

26

SPRING, COMPRESSION(8CG)

90501-585J3-00

—
Out of stock

26

SPRING, COMPRESSION

90501-586J9-00

1
Out of stock

26

SPRING, COMPRESSION(8AY)

90501-602J0-00

—
Out of stock

26

SPRING, COMPRESSION(8CG)

90501-605J5-00

—
Out of stock

27

V-BELT

8BU-17641-01-00

1
Out of stock

28

. BOLT (L=1653MM)

88R-17647-00-00

1
Out of stock

29

WASHER(JN5)

92907-16100-00

—
Out of stock
