1995 Yamaha Vmax-4 800 (VX800V) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Yamaha Vmax-4 800 (VX800V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

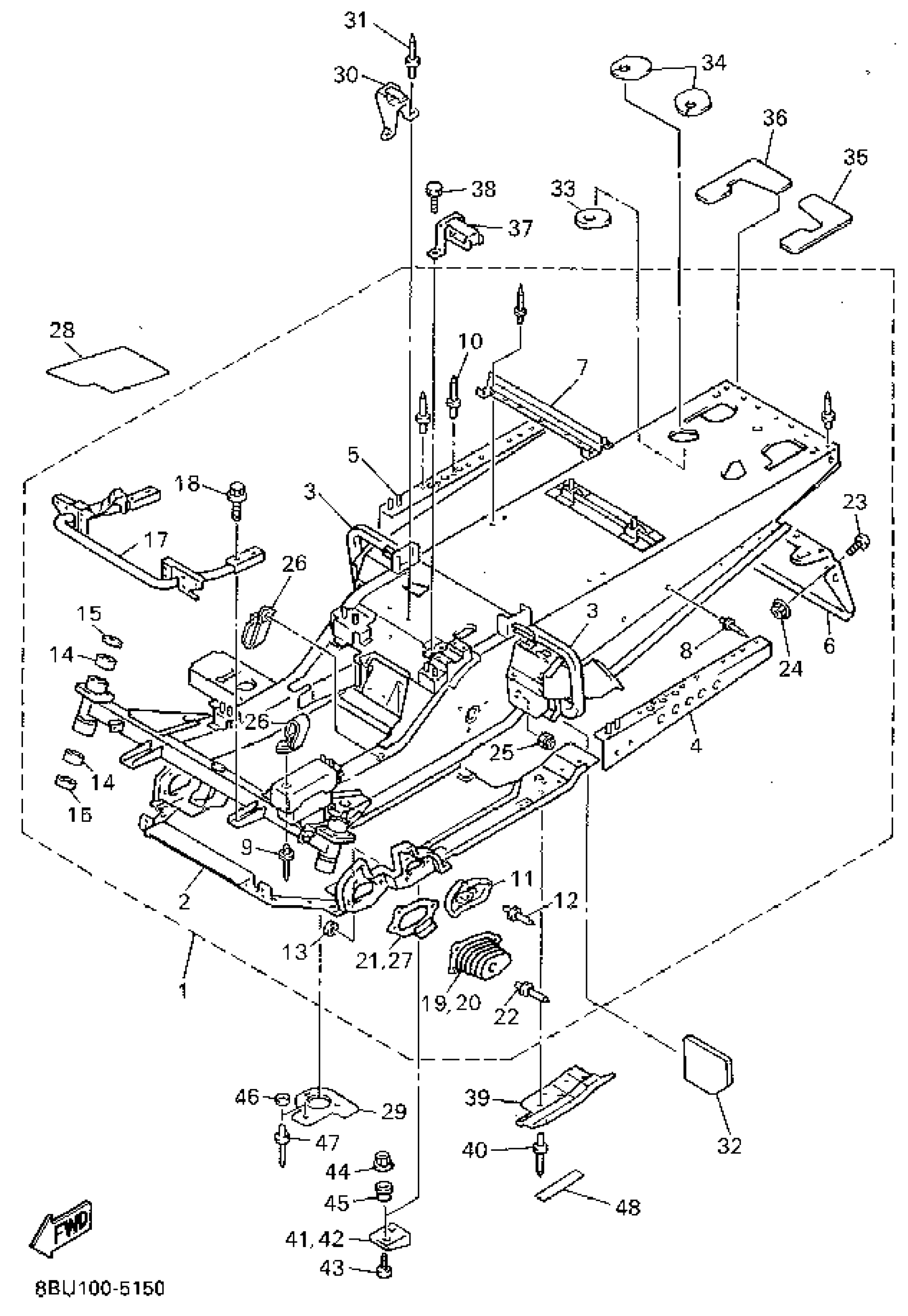

1995 Yamaha Vmax-4 800 (VX800V) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BU-21910-00-00

1
Out of stock

2

. PANEL, SUB FRAME 1

89A-21912-00-00

1
Out of stock

3

. REINFORCEMENT, FOOTREST 1

89A-21926-00-00

1
Out of stock

4

. PATCH 4

8AB-21964-00-00

1
Out of stock

5

. PATCH 5

8AB-21965-00-00

1
Out of stock

6

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

7

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

8

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

9

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

10

RIVET(89R)

90269-04044-00

—
Out of stock

11

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

12

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

13

WASHER, PLATE

90201-04027-00

1
Out of stock

14

. BUSH, SOLID

90380-38205-00

1
Out of stock

15

. OIL SEAL

93102-38441-00

1
Out of stock

16

. OIL SEAL

93103-38172-00

1
Out of stock

17

. BUMPER, FRONT 2

89A-77512-00-00

1
Out of stock

18

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

19

. COVER 1

89A-2198F-00-00

1
Out of stock

20

. COVER 3

89A-2198J-00-00

1
Out of stock

21

. WASHER 2

89A-77526-00-00

1
Out of stock

22

RIVET, BLIND (8M6)

90267-48051-00

—

$1.88

In stock

23

SCREW,BINDING

98907-08014-00

1
Out of stock

24

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

25

NUT, NYLON

95707-06300-00

—

$3.20

In stock

26

CLAMP(51Y)

90465-08277-00

—
Out of stock

27

. WASHER 1

89A-77525-00-00

1
Out of stock

28

SHIELD, HEAT

89A-2199H-01-00

1
Out of stock

29

SHIELD, NOISE

89A-2199F-00-00

1
Out of stock

30

BRACKET 4

89A-2196G-00-00

1
Out of stock

31

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

32

COVER 2

89A-2198G-10-00

1
Out of stock

33

PATCH 5

82M-21965-00-00

1
Out of stock

34

PATCH 5

88R-21965-00-00

1
Out of stock

35

COVER 6

8AB-1246J-00-00

1
Out of stock

36

COVER 7

8AB-1246K-00-00

1
Out of stock

37

BRACKET 3

89A-2196F-00-00

1
Out of stock

38

BOLT(4GV)

97017-05012-00

—

$6.17

In stock

39

FRAME UNDER 1

89A-2196A-01-00

1
Out of stock

40

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

41

PAD 1

89A-77151-00-00

1
Out of stock

42

PAD 2

89A-77152-00-00

1
Out of stock

43

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

44

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

45

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

46

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

47

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

48

TRIM, LOWER

89A-77214-00-00

—

$6.66

In stock
← Bumper Guard Luggage BOX →
