1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Headlight Diagram

← All diagrams

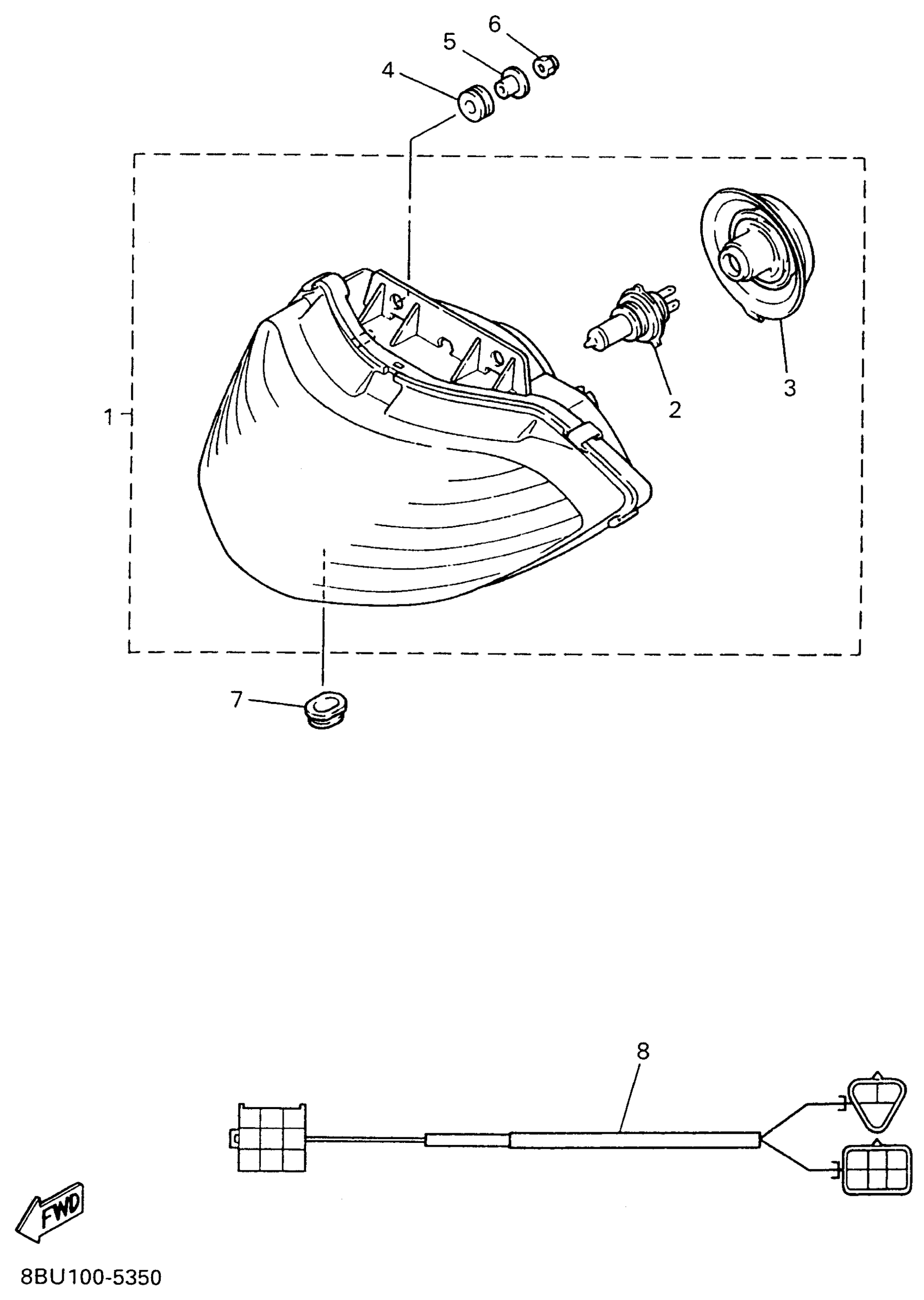

Find the part on the Headlight diagram for your 1996 Yamaha Vmax-4 Mountain MAX (VX800STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASY

8AB-84310-01-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

89A-84397-00-00

—

$11.09

In stock

4

GROMMET (1E5)

90480-13163-00

1

$6.33

In stock

5

COLLAR(42G)

90387-062L2-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

GROMMET

90480-01580-00

1
Out of stock

8

CORD, HEADLIGHT

8BW-84359-00-00

1
Out of stock
