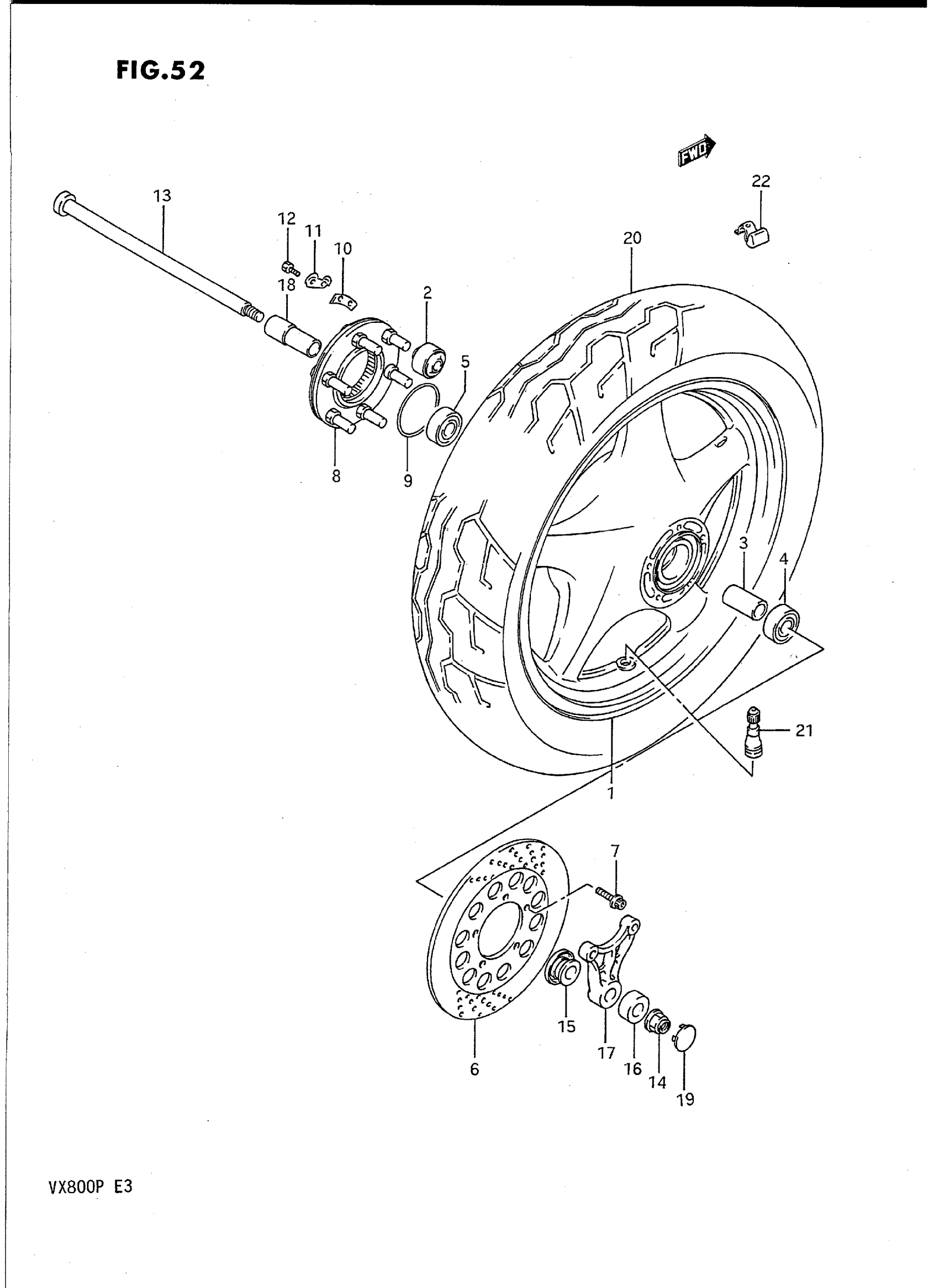

Suzuki VX800P (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL SET, REAR (MT3.50X17) | MODEL L This part replaces 64100-45830-12Z.

64100-45830-23W

Unavailable

1

WHEEL SET, REAR (MT3.50X17) | MODEL M/N/P; Includes Item(s) 2

64100-45830-23W

Unavailable

2

BUSHING

09319-12019

$12.00

3

SPACER, HUB

09180-17099

Unavailable

4

BEARING This part replaces 08123-63037.

08123-6303B

$14.23

5

BEARING, LH

08143-63037

$20.38

6

DISC, REAR BRAKE (BLACK) | MODEL L This part replaces 69211-45C00.

69211-45C10

Unavailable

6

DISC, REAR BRAKE (BLACK) | MODEL M/N/P

69211-45C10

Unavailable

7

BOLT This part replaces 07120-08308.

07120-08307

$5.17

8

JOINT, HUB DRIVEN This part replaces 64680-07A01.

64680-45113

$306.47

9

O RING

09280-65003

$4.03

10

WASHER, THRUST

64677-45110

$3.80

11

WASHER

09169-06030

$3.42

12

BOLT

09119-06049

$1.63

13

AXLE,REAR This part replaces 64711-45C01.

64711-45C0V

Unavailable

14

NUT This part replaces 08319-31148.

08319-3114A

$8.84

15

SPACER, RH This part replaces 64740-31301.

64740-38B00

$28.58

16

SPACER, AXLE RH

64741-45C02

Unavailable

17

BRACKET, CALIPER

69721-43400

Unavailable

18

SPACER, AXLE LH

64772-34201

$26.03

19

CAP, AXLE RH

64791-38B00

$24.98

20

TIRE, REAR | MODEL LEXECUTED LOCALLY This part replaces 65110-45C10.

65100-20CB0

Unavailable

20

TIRE, REAR (150/70-17 69H) | MODEL M This part replaces 65110-45C01.

65110-10D10

Unavailable

20

TIRE, REAR (150/70-17 69H) | MODEL N/P This part replaces 65110-45C20.

65110-10D10

Unavailable

21

VALVE ASSY

43130-24A00

$8.10

22

BALANCER (10G)

55411-00A00

$1.35

22

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$5.14

22

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
