1997 Yamaha Vmax-4 800 (VX800A) SKI Diagram

← All diagrams

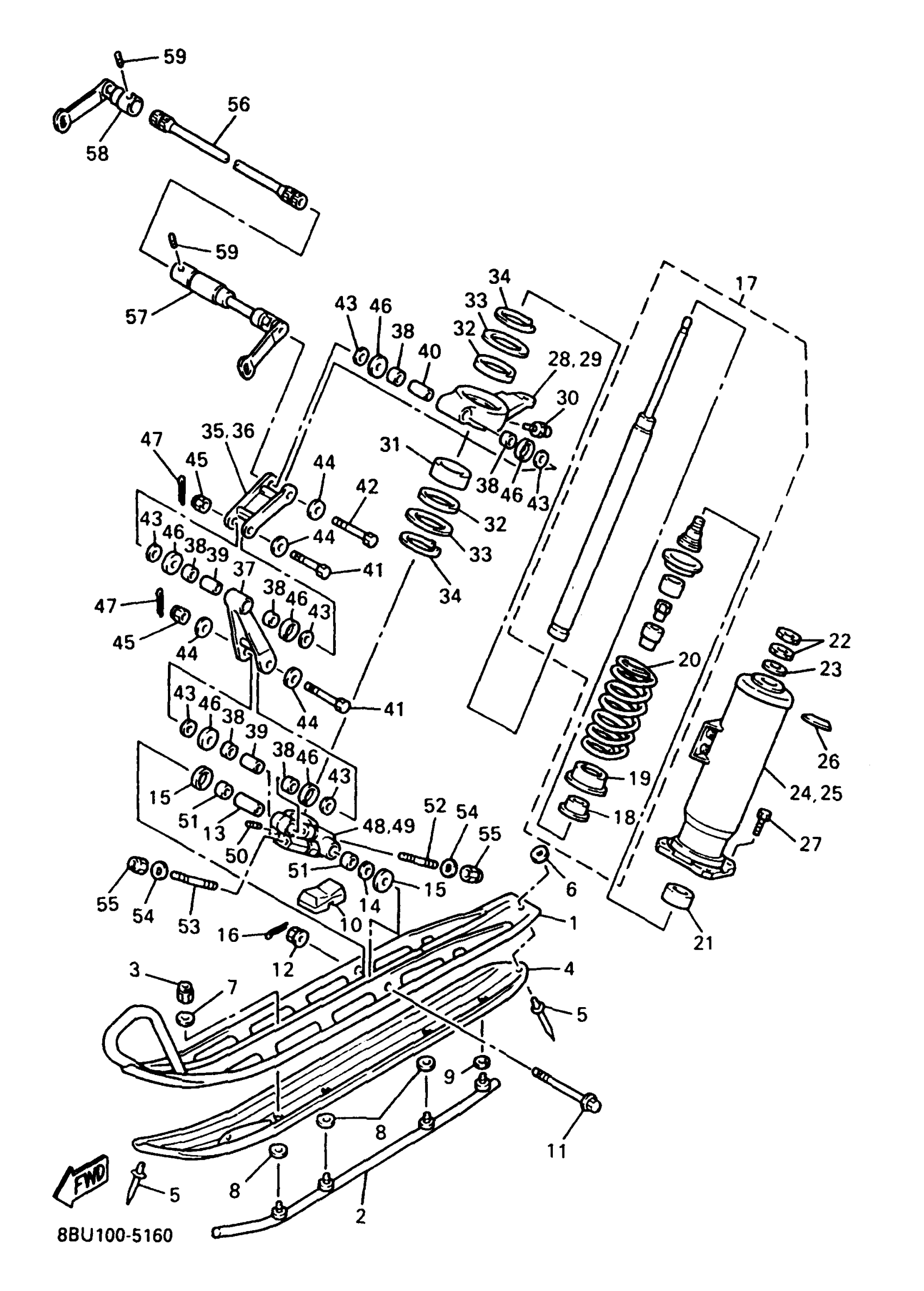

Find the part on the SKI diagram for your 1997 Yamaha Vmax-4 800 (VX800A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Vmax-4 800 (VX800A) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AX-23710-00-00

1
Out of stock

2

RUNNER 1

89A-23731-11-00

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

RUNNER 2

8BU-23732-00-00

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1

$5.77

In stock

6

WASHER, PLATE

90201-04027-00

1
Out of stock

7

WASHER (853)

90201-08326-00

1

$6.17

In stock

8

WASHER, PLATE(J40)

90201-08455-00

1
Out of stock

9

WASHER PLATE 141181390000

90201-08085-00

1

$6.38

In stock

10

STOPPER 1

89A-23743-00-00

1
Out of stock

11

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

13

COLLAR

90387-102Y0-00

1
Out of stock

14

WASHER, PLATE

90201-146R1-00

1
Out of stock

15

SPACER

89A-23787-00-00

1
Out of stock

16

PIN, COTTER

91490-20025-00

—

$1.31

In stock

17

DAMPER SUB-ASSY.

8BU-22401-00-00

1
Out of stock

18

. SEAT, SPRING UPPER

87F-22213-00-00

1
Out of stock

19

. SEAT, SPRING 2

8AX-23777-00-00

1
Out of stock

20

. SPRING, COMPRESSION

90501-825J0-00

1
Out of stock

21

. WASHER

8AX-23779-00-00

1
Out of stock

22

NUT(3MA)

90170-18392-00

—

$8.49

In stock

23

WASHER(8BT)

92907-18200-00

—
Out of stock

24

HOLDER, ABSORBER

8BU-2376J-00-00

1
Out of stock

25

HOLDER, ABSORBER 2

8BU-2377J-00-00

1
Out of stock

26

INDICATOR 2

8AX-77742-00-00

1
Out of stock

27

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

28

ARM, OUTSIDE 1

89A-23851-00-00

1
Out of stock

29

ARM, OUTSIDE 2

89A-23852-00-00

1
Out of stock

30

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

31

BUSH, BIMETAL FORMED

90384-55227-00

1
Out of stock

32

OIL SEAL

93109-55063-00

1
Out of stock

33

WASHER, PLATE

90201-555P8-00

1
Out of stock

33

WASHER, PLATE

90201-555P9-00

1
Out of stock

34

CIRCLIP(4BB)

99009-55400-00

—

$4.29

In stock

35

ARM, FRONT 1

89A-2382E-00-00

1
Out of stock

36

ARM, FRONT 4

89A-2383F-00-00

1
Out of stock

37

ARM, FRONT 2

89A-2382F-00-00

1
Out of stock

38

BEARING, STEERING UPPER

89A-23873-00-00

—
Out of stock

39

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

40

COLLAR

90387-101Y8-00

1
Out of stock

41

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

42

BOLT

90101-10743-00

1
Out of stock

43

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

44

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

45

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

46

WASHER(82M)

90209-14296-00

—

$9.10

In stock

47

PIN, COTTER

91490-20025-00

—

$1.31

In stock

48

BRACKET 1

8BU-2376E-00-00

1
Out of stock

49

BRACKET 2

8BU-2377E-00-00

1
Out of stock

50

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

51

—

$9.15

In stock

52

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

53

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

54

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

55

NUT, NYLON

95717-08300-00

1

$2.57

In stock

56

BAR, STABILIZER FRONT

8BU-2386E-00-00

1
Out of stock

57

JOINT, STABILIZER 1

8BU-2385L-00-00

1
Out of stock

58

JOINT, STABILIZER2

8BU-2385M-00-00

1
Out of stock

59

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock
