1997 Yamaha Vmax-4 800 (VX800A) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1997 Yamaha Vmax-4 800 (VX800A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

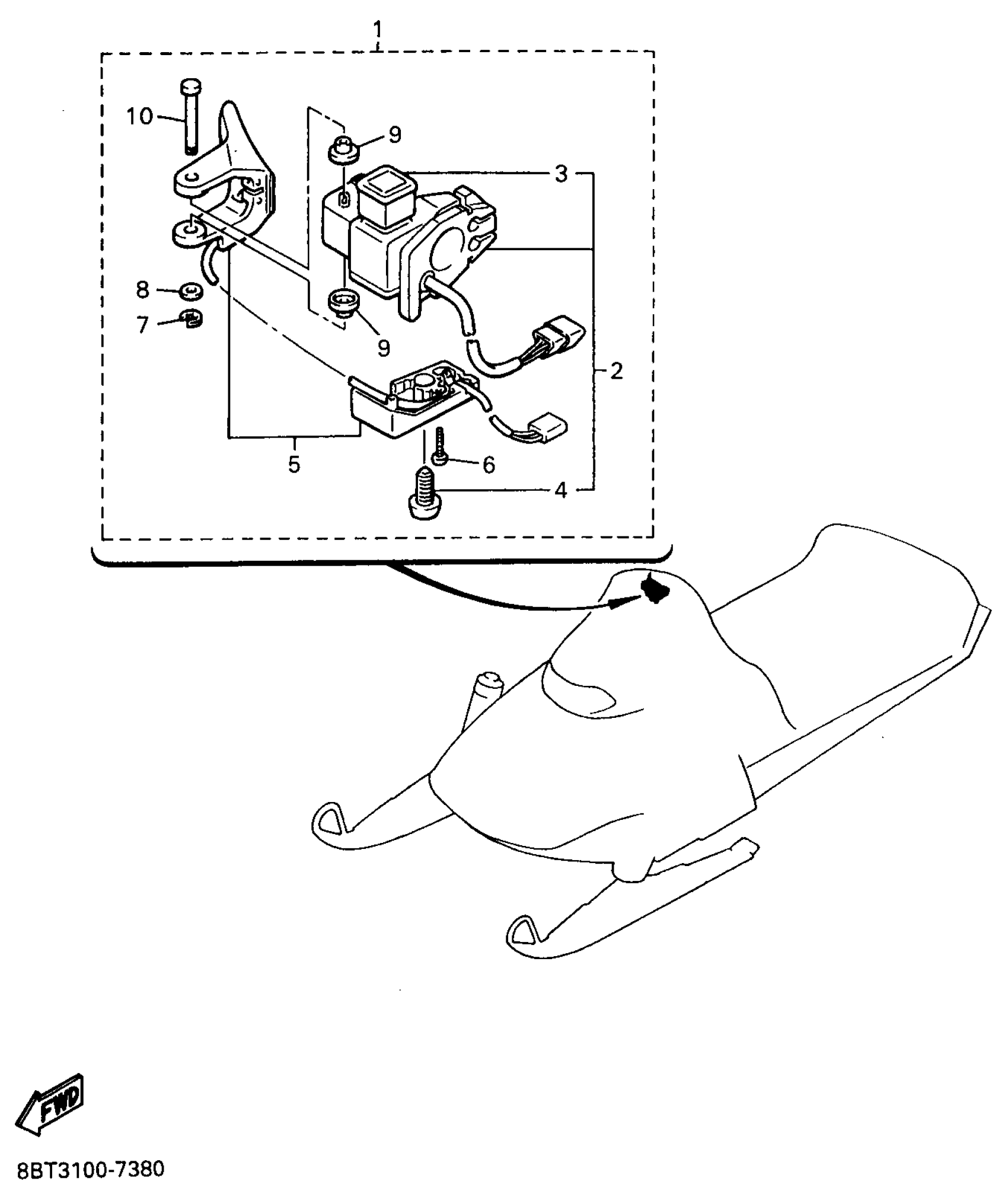

1997 Yamaha Vmax-4 800 (VX800A) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASY 2

8AB-82720-00-00

1
Out of stock

2

. SWITCH, HANDLE 3 (RIGHT)

8AV-83963-00-00

1
Out of stock

3

ENGINE STOP SWITCH ASSY

8AU-82575-09-00

1

$106.94

In stock

4

SCREW, ADJUSTING

84M-83928-00-00

1
Out of stock

5

. THUMB WARMER ASSEMBLY

8BU-82970-00-00

1
Out of stock

6

SCREW, TAPPING(3NX)

97707-30514-00

—
Out of stock

7

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

8

WASHER, SPECIAL

85G-83663-00-00

1

$7.22

In stock

9

CAP 1

85G-83956-00-00

1

$6.66

In stock

10

SHAFT

8R6-8399F-00-00

1

$10.85

In stock
