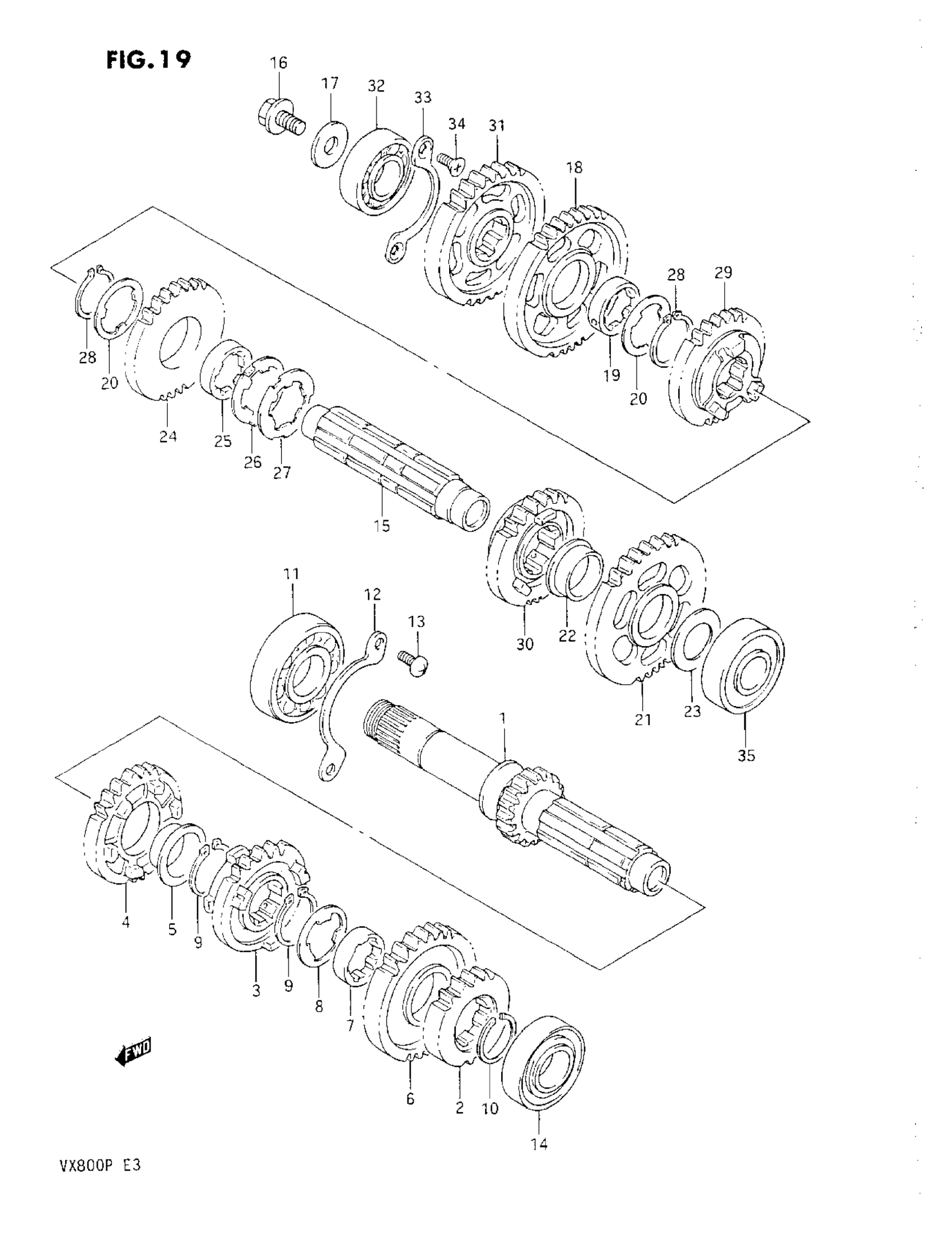

Suzuki VX800 (1993) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 24120-45C01.

24120-45C11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 24120-45C02.

24120-45C11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 24120-45C10.

24120-45C11

Unavailable

2

GEAR, 2ND DRIVE (NT:19) | MODEL L/M/N

24221-38A01

Unavailable

2

GEAR, 2ND DRIVE (NT:19) | MODEL P This part replaces 24221-38A20.

24221-38A01

Unavailable

3

GEAR, 3RD DRIVE (NT:22)

24231-45C00

Unavailable

4

GEAR, 4TH DRIVE (NT:25)

24241-38A00

Unavailable

5

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$26.85

6

GEAR, 5TH DRIVE (NT:27) This part replaces 24251-38A00.

24251-38A01

Unavailable

7

BUSH,6TH DRIVE GEAR This part replaces 24252-38A00.

24252-38A10

Unavailable

8

WASHER

09167-25016

$4.03

9

SNAP RING

09380-25003

$2.80

10

CIRCLIP

09380-25010

$2.80

11

BEARING, RH

09262-25080

$42.13

12

RETAINER

24741-38A00

Unavailable

13

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

14

BEARING, DRIVE SHAFT, LH This part replaces 09262-20081.

09262-20139

$48.87

15

DRIVESHAFT

24131-38A03

Unavailable

16

NOZZLE,DRIVE SHAFT

24135-38A02

$10.35

17

WASHER

08211-10305

$4.62

18

GEAR, 1ST DRIVEN (NT:32) | MODEL L/M/N

24311-38A01

Unavailable

18

GEAR, 1ST DRIVEN (NT:32) | MODEL P

24311-38A20

Unavailable

19

BUSH

24332-07A00

Unavailable

20

LOCK WASHER

09167-28001

$5.00

21

GEAR, 2ND DRIVEN (NT:31) | MODEL L/M/N

24321-38A00

Unavailable

21

GEAR, 2ND DRIVEN (NT:31) | MODEL P This part replaces 24321-38A20.

24321-38A00

Unavailable

22

BUSH

09301-22002

Unavailable

23

WASHER

08211-20341

$3.05

24

GEAR, 3RD DRIVEN (NT:27)

24331-38A02

Unavailable

25

BUSH

24332-07A00

Unavailable

26

LOCK WASHER, RH

09169-28001

$4.18

27

LOCK WASHER, LH

09167-28002

$5.17

28

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.28

29

GEAR, 4TH DRIVEN (NT:25)

24341-45C00

Unavailable

30

NO DESCRIPTION AVAILABLE This part replaces 24351-45C20.

24351-45C21

Unavailable

31

GEAR, REDUCTION DRIVE (NT:30)

24621-38A00

Unavailable

32

BEARING, RH

09262-20073

$21.00

33

RETAINER

24751-38A00

Unavailable

34

SCREW This part replaces 02122-06128.

02122-06127

$1.83

35

BEARING, LH

09262-20080

$42.13
