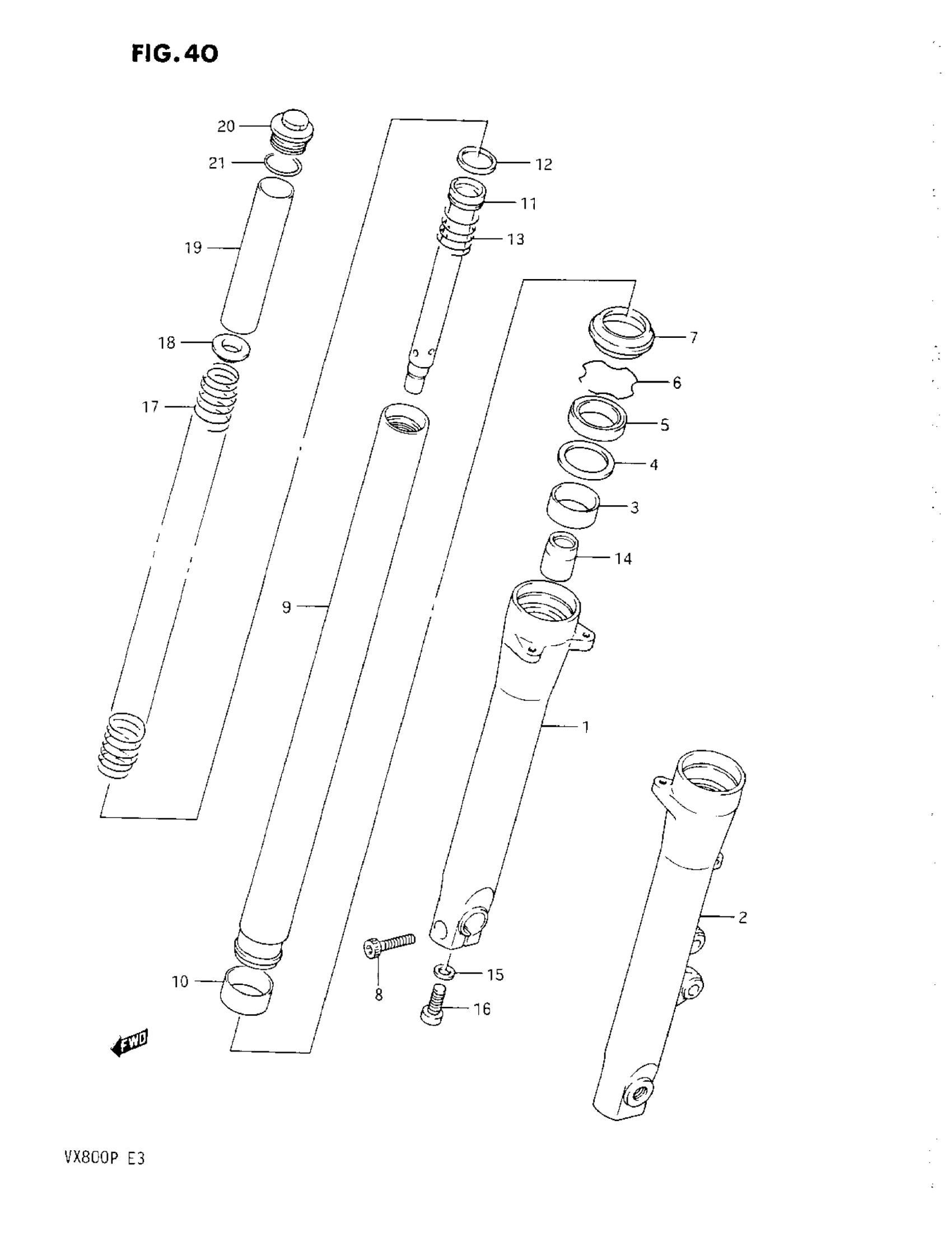

Suzuki VX800 (1993) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-45C20

Unavailable

1

DAMPER ASSY, LH

51104-45C21

Unavailable

1

TUBE, OUTER RH

51130-45C00

Unavailable

2

TUBE, OUTER LH

51140-45C01

Unavailable

3

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

$23.09

4

WASHER

51158-05A00

$5.34

5

SEAL, OIL This part replaces 51153-06C00.

51153-27C20

$12.48

6

RING, SNAP

51156-49440

$4.75

7

SEAL, DUST This part replaces 51173-06C00.

51173-46E00

$21.72

8

BOLT This part replaces 07110-08407.

07130-08407

$2.88

9

TUBE, INNER

51110-45C00

Unavailable

10

.PISTON This part replaces 51121-28C00.

51121-26E10

$28.44

11

CYLINDER

51146-45C20

Unavailable

12

RING, PISTON

51196-05A00

$9.50

13

SPRING, REBOUND

51177-45C00

Unavailable

14

PIECE, OIL LOCK

51195-05C20

Unavailable

15

GASKET

51148-41310

$2.14

16

BOLT

51147-16510

$4.09

17

SPRING, MAIN

51171-45C20

Unavailable

18

WASHER, STEM This part replaces 51172-24A00.

51356-24B01

$7.13

19

SPACER

51176-45C20

Unavailable

20

BOLT, FORK

51351-45C00

Unavailable

21

O-RING

51117-40300

$2.92
