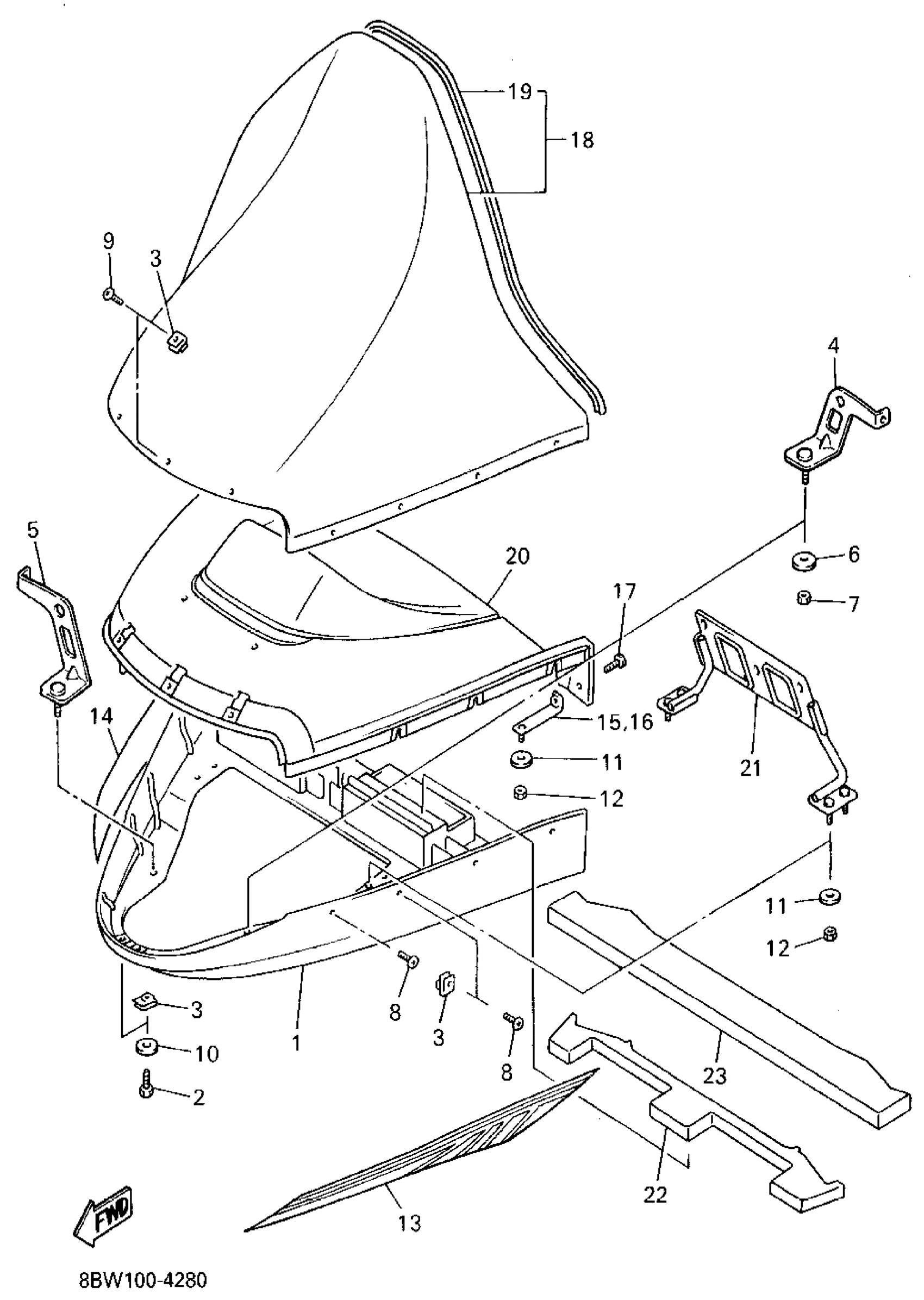

Find the part on the Windshield diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax-4 (VX750U) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAIRING

89A-77231-00-00

1
Out of stock

2

BOLT(6A1)

97095-05016-00

1

$1.46

In stock

3

NUT

89A-77144-00-00

1
Out of stock

4

STAY 1

8AB-77125-00-00

1
Out of stock

5

STAY 2

8AB-77126-00-00

1
Out of stock

6

WASHER, PLATE (3Y6)

90201-083A6-00

1
Out of stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

SCREW, BINDING(2EK)

90154-05042-00

1
Out of stock

9

SCREW, ROUND HEAD(88R)

90150-05028-00

1

$2.64

In stock

10

WASHER, PLATE (7N7)

90201-052E8-00

1

$3.20

In stock

11

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

12

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

13

EMBLEM 5

8BW-77355-00-00

1
Out of stock

14

EMBLEM 6

8BW-77356-00-00

1
Out of stock

15

PLATE, BACK UP 1

89A-77153-00-00

1
Out of stock

16

PLATE, BACK UP 2

89A-77154-00-00

1
Out of stock

17

SCREW, BINDING (10V)

90154-05013-00

—
Out of stock

18

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

1
Out of stock

19

TRIM,UPPER

87K-77213-00-00

1
Out of stock

20

COVER, HEADLIGHT

89A-77251-00-00

1
Out of stock

21

BRACKET, METER

89A-83519-00-00

1
Out of stock

22

LINING, SHROUD

8AB-77268-00-00

1
Out of stock

23

SHIELD, NOISE 2

89A-2199J-00-00

—

$80.97

In stock
