1994 Yamaha Vmax-4 (VX750U) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

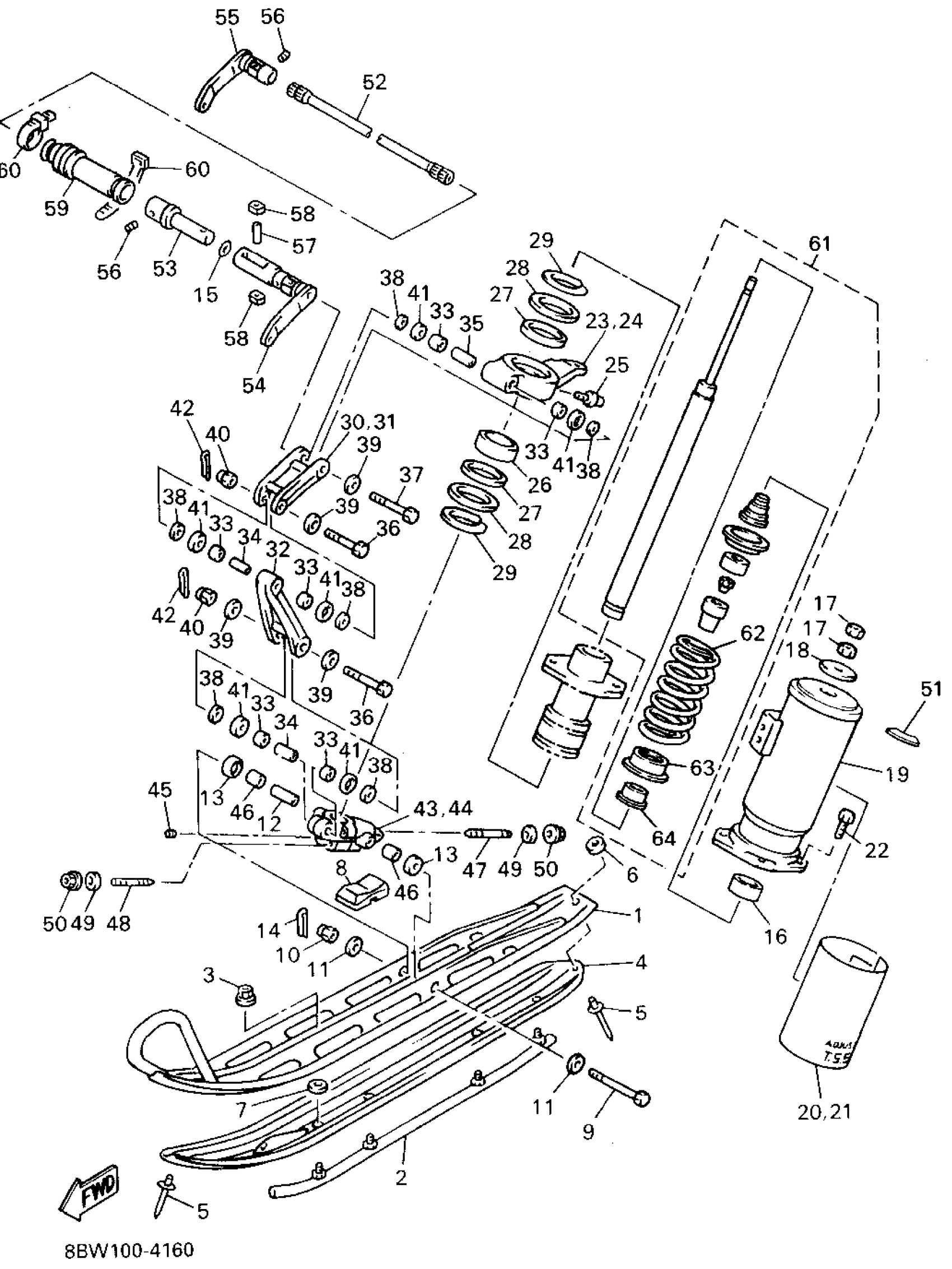

1994 Yamaha Vmax-4 (VX750U) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AX-23710-00-00

1
Out of stock

2

RUNNER 1 (89A-23731-11-00)

89A-23731-10-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

SKISKINS RED VMAX4

89A-23732-01-XX

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1

$5.77

In stock

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

7

WASHER (853)

90201-08326-00

1

$6.17

In stock

8

STOPPER 1

89A-23743-00-00

1
Out of stock

9

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

10

NUT, NYLON

95707-10300-00

1

$6.68

In stock

11

WASHER(6TA)

92907-10600-00

1
Out of stock

12

COLLAR

90387-102Y0-00

1
Out of stock

13

SPACER

89A-23787-00-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

O-RING

93210-15751-00

1
Out of stock

16

. WASHER

8AX-23779-00-00

1
Out of stock

17

NUT(3MA)

90170-18392-00

—

$8.49

In stock

18

WASHER (6E5)

92990-18200-00

1

$2.23

In stock

19

HOLDER, ABSORBER L

8AX-2376J-01-00

1
Out of stock

19

HOLDER, ABSORBER R

8AX-2377J-01-00

1
Out of stock

20

EMBLEM 15

8AX-77371-00-00

1
Out of stock

21

EMBLEM 16

8AX-77372-00-00

1
Out of stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

ARM, OUTSIDE 1

89A-23851-00-00

1
Out of stock

24

ARM, OUTSIDE 2

89A-23852-00-00

1
Out of stock

25

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

26

BUSH, BIMETAL FORMED

90384-55227-00

1
Out of stock

27

OIL SEAL

93109-55063-00

1
Out of stock

28

WASHER, PLATE

90201-555P8-00

1
Out of stock

28

WASHER, PLATE

90201-555P9-00

1
Out of stock

29

CIRCLIP(4BB)

99009-55400-00

—

$4.29

In stock

30

ARM, FRONT 1

89A-2382E-00-00

1
Out of stock

31

ARM, FRONT 4

89A-2383F-00-00

1
Out of stock

32

ARM, FRONT 2

89A-2382F-00-00

1
Out of stock

33

BEARING, STEERING UPPER

89A-23873-00-00

—
Out of stock

34

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

35

COLLAR

90387-101Y8-00

1
Out of stock

36

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

37

BOLT

90101-10743-00

1
Out of stock

38

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

39

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

40

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

41

WASHER(82M)

90209-14296-00

—

$9.10

In stock

42

PIN, COTTER

91490-20025-00

1

$1.31

In stock

43

BRACKET 1

89A-2376E-00-00

1
Out of stock

44

BRACKET 2

89A-2377E-00-00

1
Out of stock

45

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

46

—

$9.15

In stock

47

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

48

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

49

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

50

NUT, NYLON

95717-08300-00

1

$2.57

In stock

51

INDICATOR 2

8AX-77742-00-00

1
Out of stock

52

BAR, STABILIZER FRONT

89A-2386E-00-00

1
Out of stock

53

LINK, STABILIZER FRONT

89A-2386F-00-00

1
Out of stock

54

JOINT, STABILIZER 1

89A-2385L-00-00

1
Out of stock

55

JOINT, STABILIZER2

8BU-2385M-00-00

1
Out of stock

56

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

57

PIN, DOWEL

93605-25223-00

1
Out of stock

58

SLIDER

82M-2386R-00-00

1
Out of stock

59

COVER, STABILIZER FRONT

89A-2386H-00-00

1
Out of stock

60

BAND

1UA-82591-00-00

—
Out of stock

61

DAMPER SUB-ASSY.

8BU-22401-00-00

1
Out of stock

62

. SPRING, COMPRESSION

90501-852J9-00

1
Out of stock

63

. SEAT, SPRING 2

8AX-23777-00-00

1
Out of stock

64

. SEAT, SPRING UPPER

87F-22213-00-00

1
Out of stock
