1993 Yamaha Vmax-4 (VX750T) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

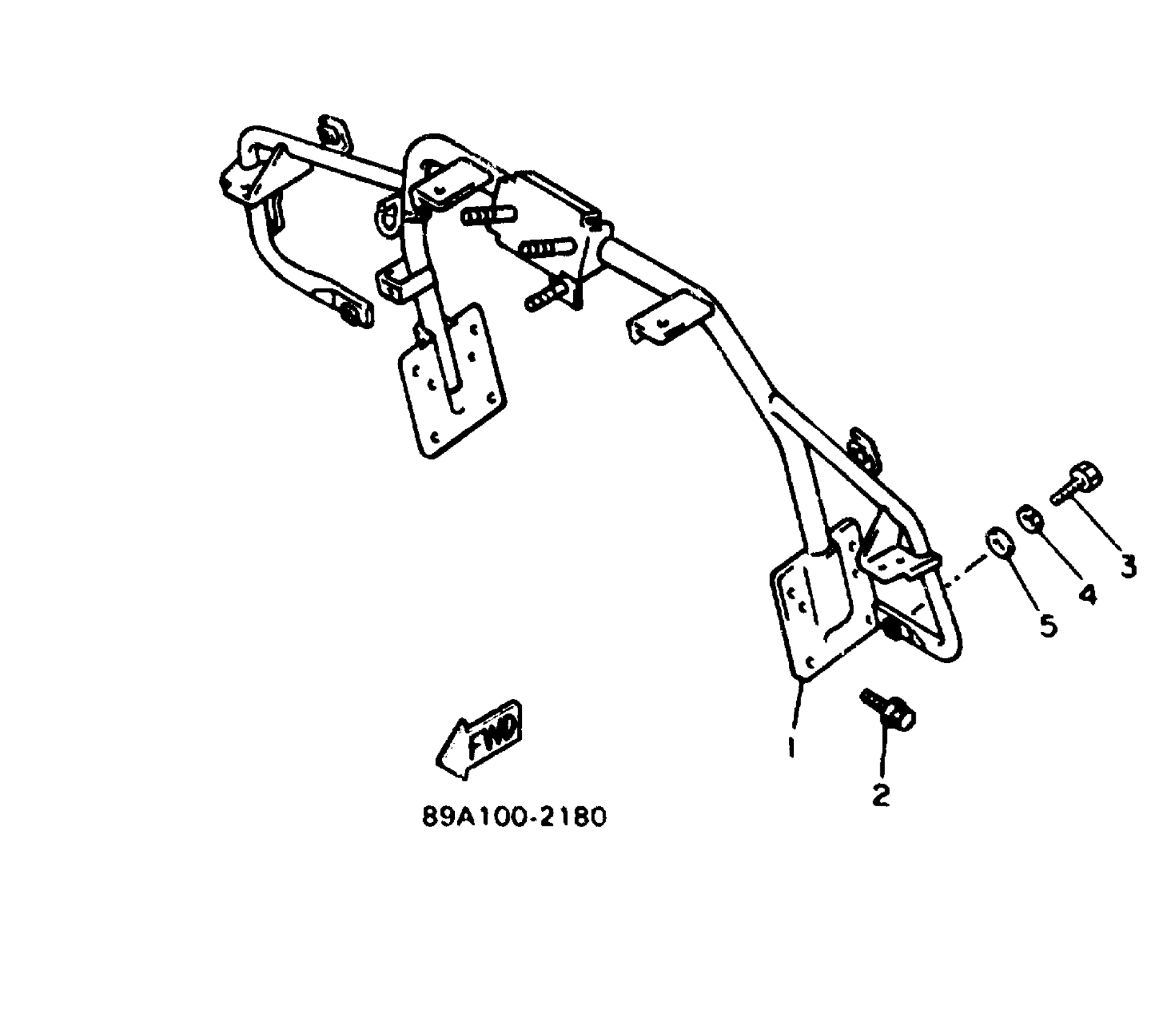

1993 Yamaha Vmax-4 (VX750T) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

89A-23870-02-00

1
Out of stock

2

BOLT, WASHER BASED

90105-08590-00

1
Out of stock

3

BOLT, HEXAGON

97017-08030-00

1

$6.85

In stock

4

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
← Steering Electrical 1 →
