PRIMARY SHEAVE

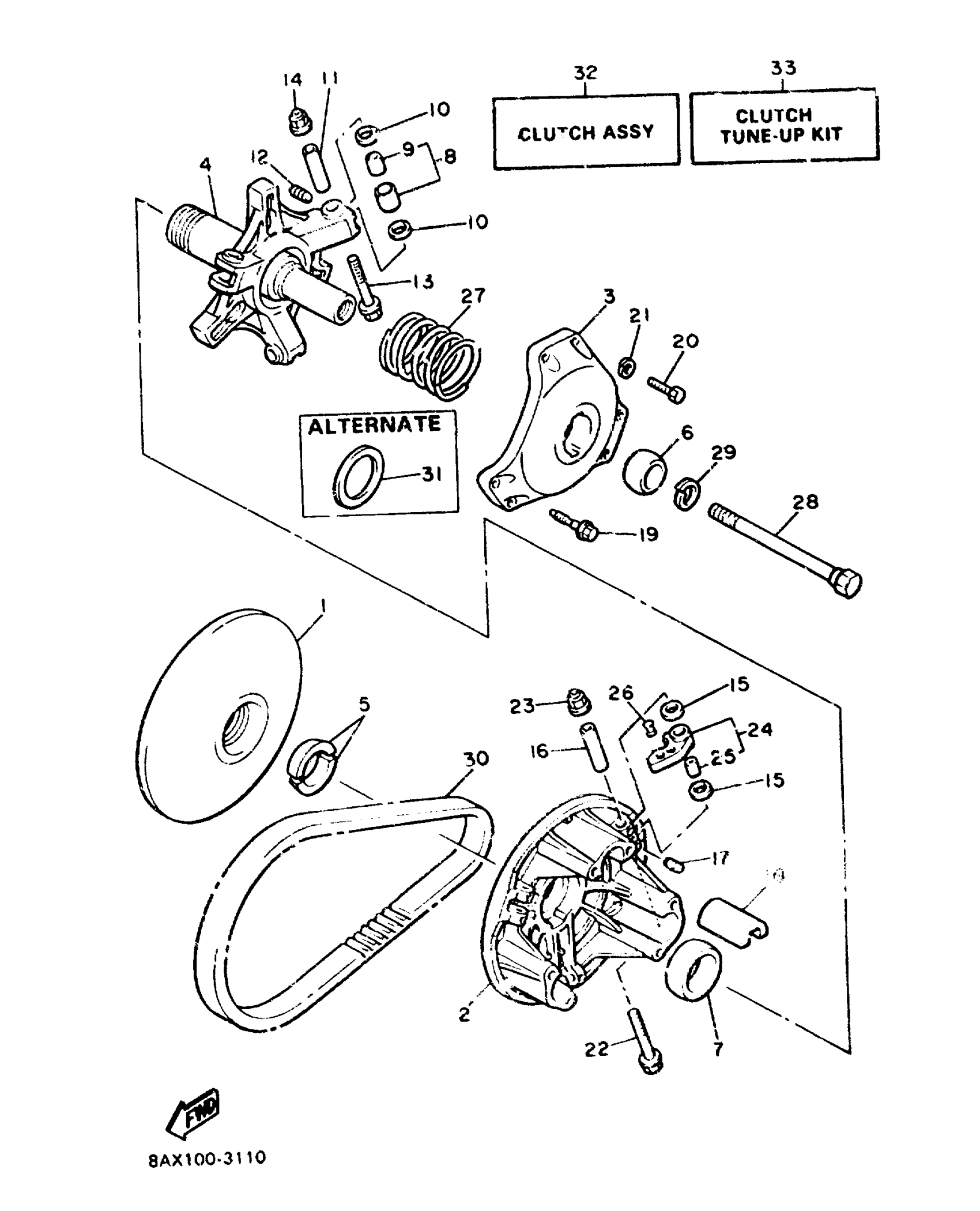

1993 Yamaha Vmax-4 (VX750T) Primary Sheave Diagram
Find the part on the Primary Sheave diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SHEAVE,PRI FIXED
8AX-17611-09-00
2
SHEAVE, PRIMARY SLIDING
8AX-17621-01-00
3
CAP
88R-17631-01-00
9
. BUSH, SOLID
90380-08244-00
10
WASHER, PLATE(88R)
90202-08204-00
12
BOLT, SET
90113-05041-00
15
WASHER, PLATE(88R)
90202-08204-00
17
BOLT, SET
90113-05041-00
19
BOLT(89J)
90109-066F4-00
25
. BUSH, SOLID
90380-08244-00
26
RIVET, COUNTER SUNK (8G8)
90261-06017-00
26
RIVET, COUNTER SUNK (8G8)
90261-06017-00
26
RIVET, COUNTERSUNK HEAD (LEAD)
90261-06031-00
27
SPRING, COMPRESSION
90501-524G5-00
28
. BOLT (L=1653MM)
88R-17647-00-00
30
V-BELT
8BU-17641-01-00
32
CLUTCH ASY
8BW-17601-19-00
33
CLUTCH TUNE-UP KIT
89A-00000-50-00
