1993 Yamaha Vmax-4 (VX750T) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

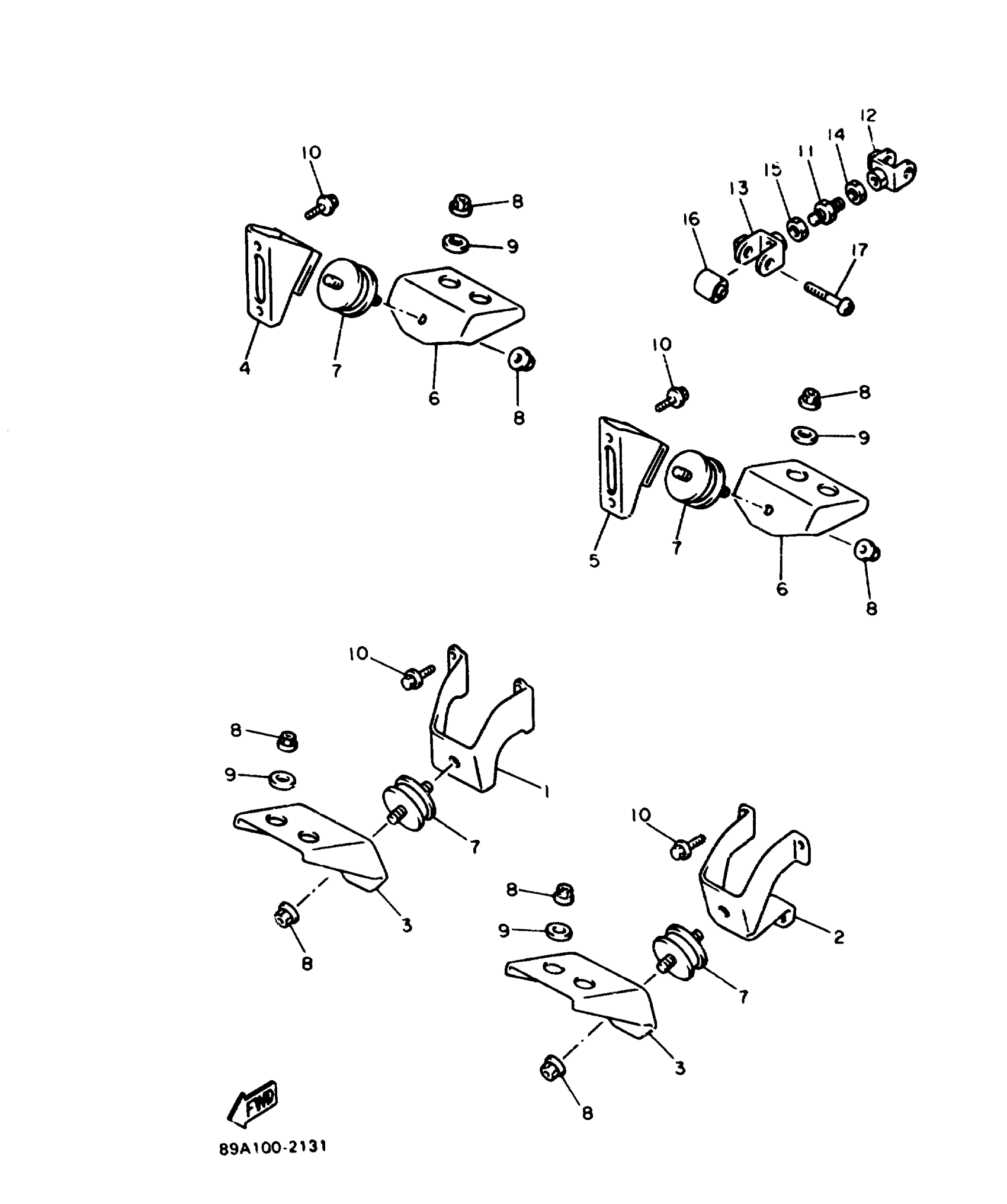

1993 Yamaha Vmax-4 (VX750T) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

89A-21415-00-00

1
Out of stock

2

BRACKET, FRONT UPPER 2

89A-21416-00-00

1
Out of stock

3

BRACKET, FRONT LOWER 1

89A-21417-00-00

1
Out of stock

4

BRACKET, REAR UPPER 1

89A-21425-00-00

1
Out of stock

5

BRACKET, REAR UPPER 2

89A-21426-00-00

1
Out of stock

6

BRACKET, REAR LOWER 1

89A-21427-00-00

1
Out of stock

7

DAMPER 2

8M6-21486-02-00

1
Out of stock

8

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

9

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

10

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

11

BOLT, ENGINE ADJUSTING

89A-21495-00-00

1
Out of stock

12

BRACKET 1

89A-2148U-00-00

1
Out of stock

13

BRACKET 2

89A-2148V-00-00

1
Out of stock

14

NUT(89A)

90170-12407-00

1

$8.57

In stock

15

NUT

90170-12406-00

1
Out of stock

16

DAMPER, RUBBER 1

89A-21485-00-00

1
Out of stock

17

BOLT, BUTTON HEAD

92017-10040-00

—

$5.69

In stock
