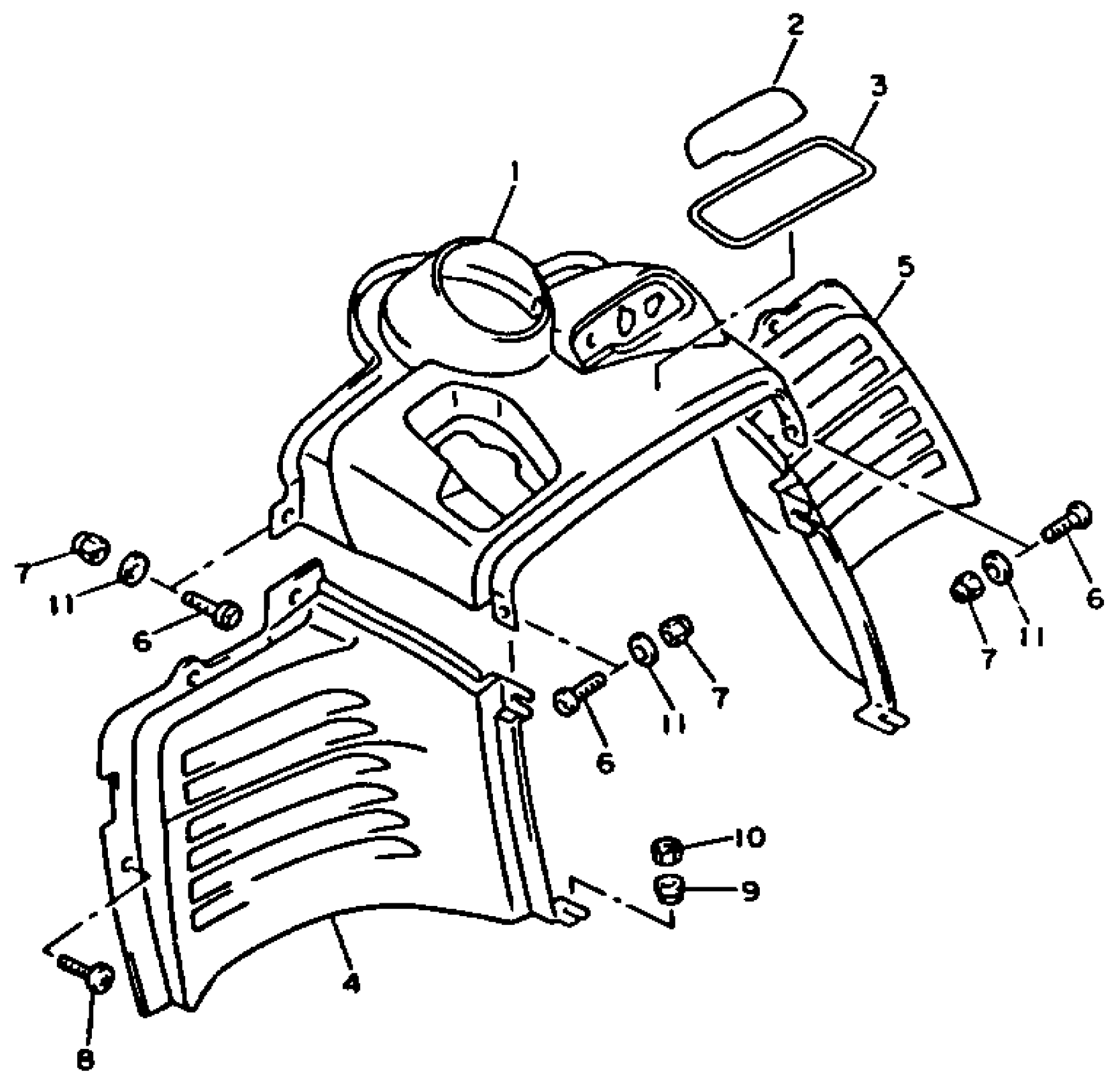

Find the part on the Instument Panel diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Vmax-4 (VX750S) Instument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL,INSTRUMENT

89A-77711-01-00

1
Out of stock

2

INDICATOR 1

89A-77741-01-00

1
Out of stock

3

LABEL,WARNING 1

89A-77761-11-00

1
Out of stock

4

LOUVER 1

89A-77131-01-00

1
Out of stock

5

LOUVER 2

89A-77132-01-00

1
Out of stock

6

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

SCREW, BINDING

98907-06012-00

1
Out of stock

9

COLLAR

90387-061R5-00

1
Out of stock

10

NUT, NYLON

95707-06300-00

1

$3.20

In stock

11

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock
