2001 Yamaha VX700F 8DS4 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2001 Yamaha VX700F 8DS4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

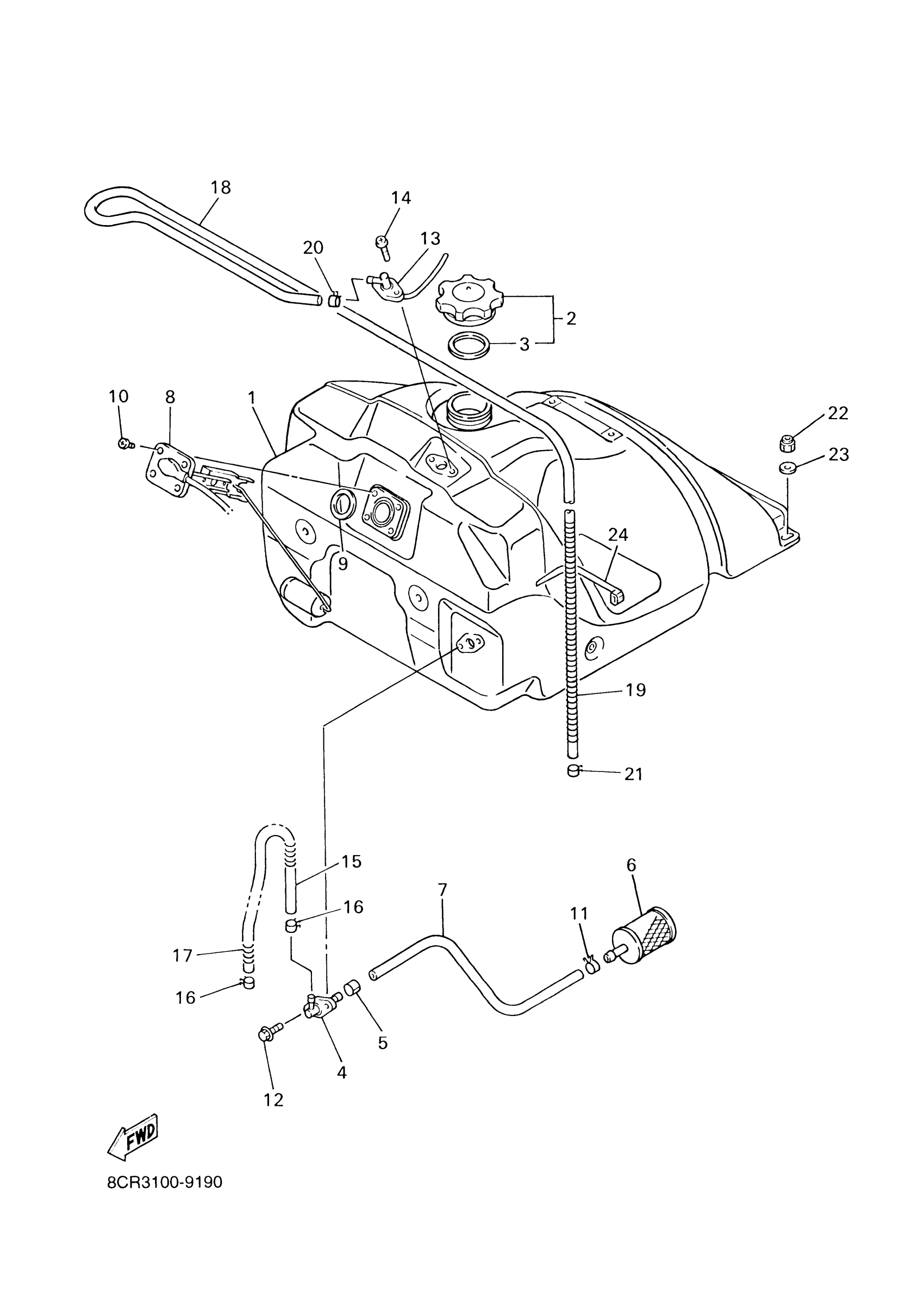

2001 Yamaha VX700F 8DS4 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

8CW-24111-10-00

—

$290.82

In stock

2

GAS CAP ASSY, W/O GAUGE

8CW-24610-01-00

1
Out of stock

3

GASKET, CAP

8CW-24612-00-00

1

$14.80

In stock

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

—

$55.60

In stock

5

CLIP

90468-04092-00

1

$2.54

In stock

6

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

7

PIPE, SUCTION 1

8CR-24335-01-00

1
Out of stock

8

SENDER UNIT ASSY, FUEL METER

8CW-85752-00-00

1
Out of stock

9

O-RING (102)

93210-41041-00

1

$5.86

In stock

10

SCREW, BINDING

98907-05008-00

1

$1.58

In stock

11

CLIP (7K7)

90467-11044-00

1
Out of stock

12

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

13

BREATHER COMP.

8CR-2418A-00-00

1
Out of stock

14

SCREW

90149-06021-00

1

$6.25

In stock

15

PIPE, FUEL 1

8CR-24311-10-00

1
Out of stock

16

CLIP (7K7)

90467-11044-00

1
Out of stock

17

SPRING, COMPRESSION (10L)

90501-08668-00

—
Out of stock

18

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

19

SPRING, COMPRESSION(7MX)

90501-084J0-00

—

$5.86

In stock

20

CLIP (2A6)

90468-02078-00

—

$5.80

In stock

21

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

22

NUT, NYLON

95717-08300-00

—

$2.57

In stock

23

WASHER, PLATE (3L7)

90201-08784-00

—

$2.54

In stock

24

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock
