- Vmax 700ER (VX700ERG)
Primary Sheave

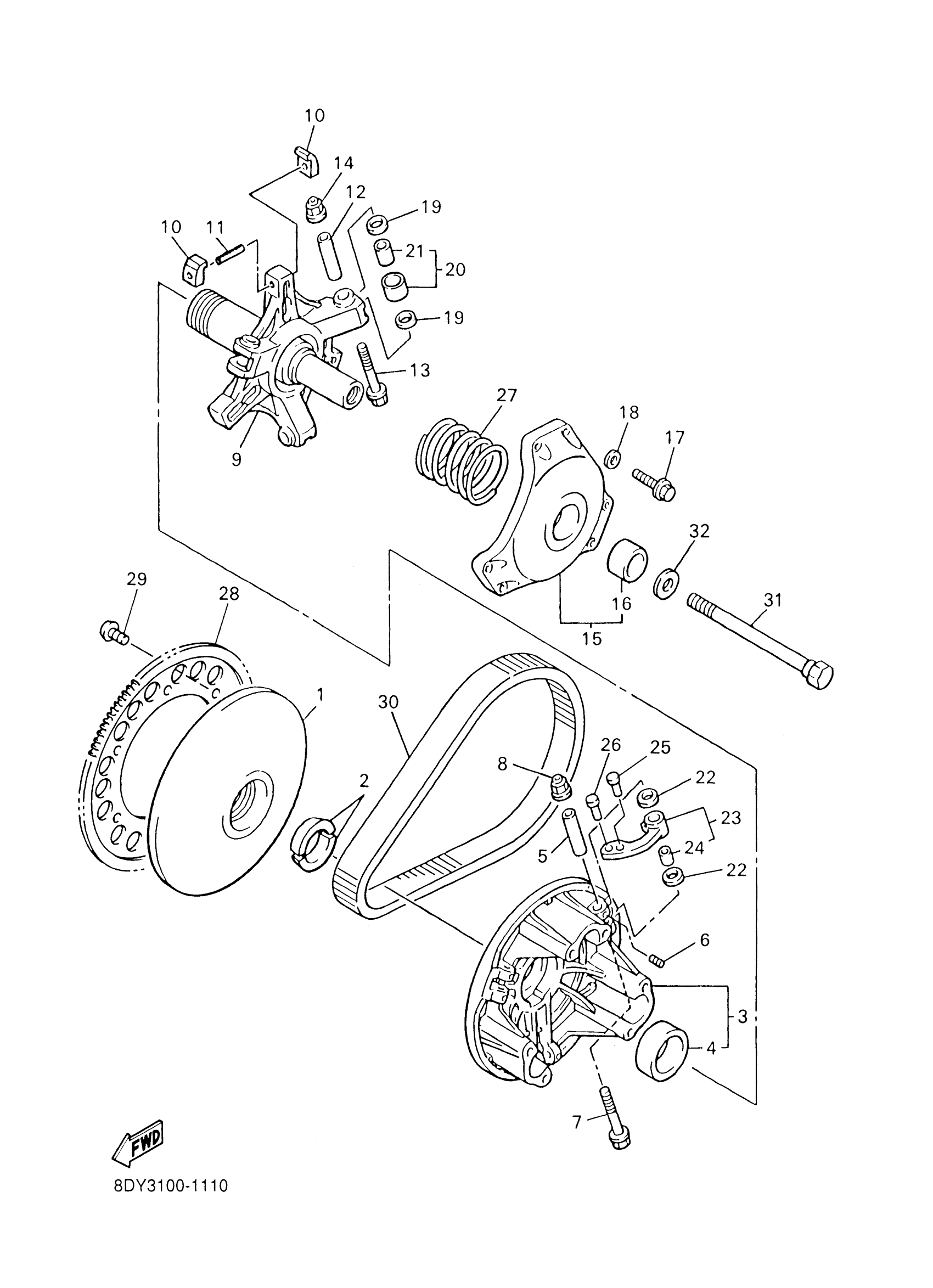

2002 Yamaha Vmax 700ER (VX700ERG) Primary Sheave Diagram
Find the part on the Primary Sheave diagram for your 2002 Yamaha Vmax 700ER (VX700ERG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
6
BOLT, SET
90113-05041-00
1
Out of stock
9
SPIDER COMP.
8CA-17640-12-00
1
Out of stock
19
WASHER, PLATE(8BV)
90202-09227-00
—
Out of stock
22
WASHER, PLATE(88R)
90202-08204-00
—
Out of stock
24
. BUSH, SOLID
90380-08244-00
1
Out of stock
More Drive & Transmission diagrams
