2000 Yamaha Vmax 700 (VX700D) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2000 Yamaha Vmax 700 (VX700D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

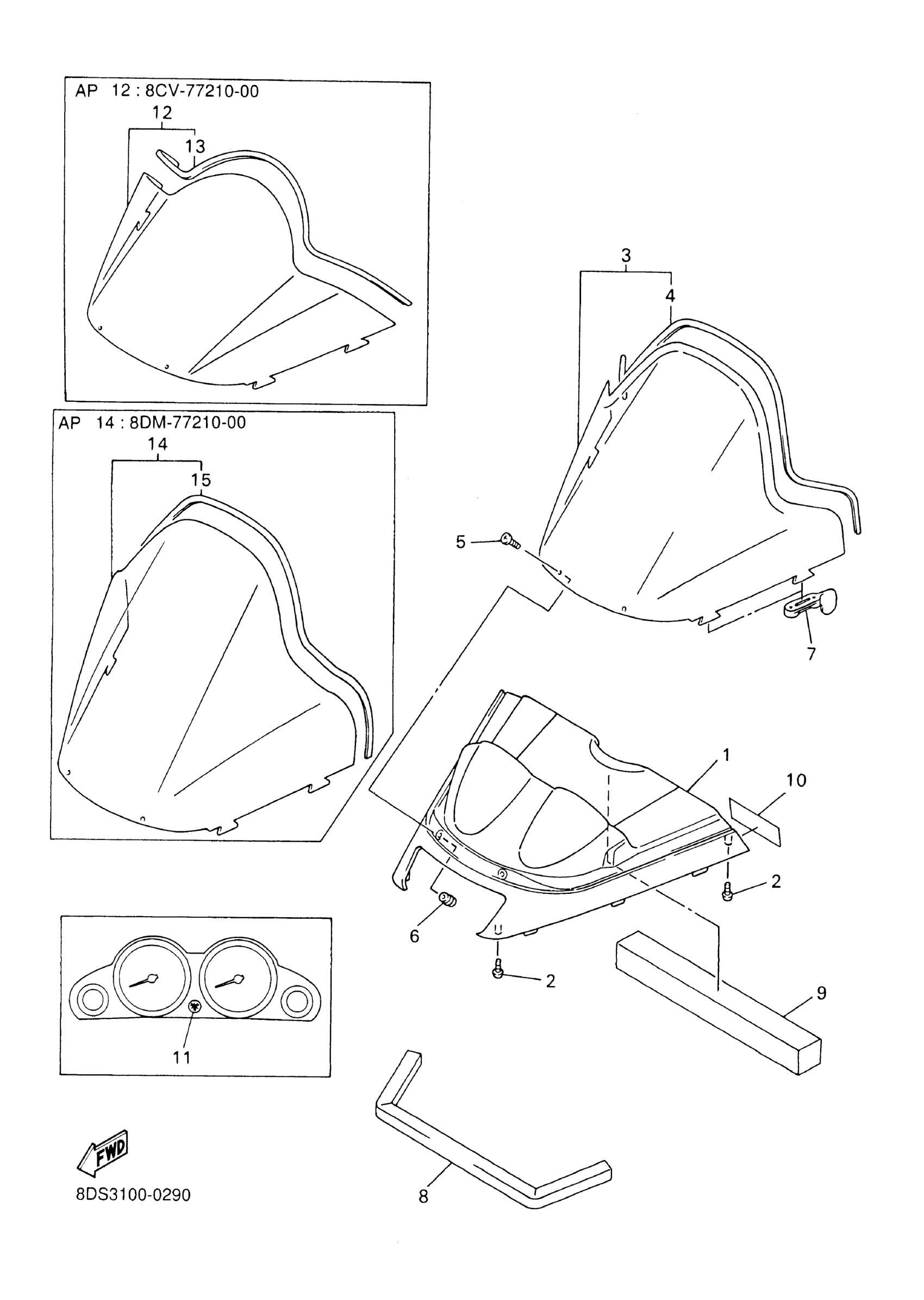

2000 Yamaha Vmax 700 (VX700D) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8DF-77251-01-00

1
Out of stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

WINDSHIELD, VMAX

8CR-77210-00-XX

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

FASTNER

82H-77223-00-00

1

$7.63

In stock

8

DAMPER, NOISE 19

8CR-77279-00-00

1
Out of stock

9

SHIELD, NOISE 2

8CR-2199J-00-00

1

$30.09

In stock

10

LABEL, WARNING 1

8DS-77761-00-00

1
Out of stock

11

EMBLEM

4XV-2341B-00-00

1

$23.12

In stock

12

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

1
Out of stock

13

TRIM,UPPER

87K-77213-00-00

1
Out of stock

14

WINDSHIELD COMP.

8DM-77210-00-00

1
Out of stock

15

TRIM, UPPER

8DM-77213-00-00

—

$35.48

In stock
