2000 Yamaha Vmax 700 (VX700D) Meter Diagram

← All diagrams

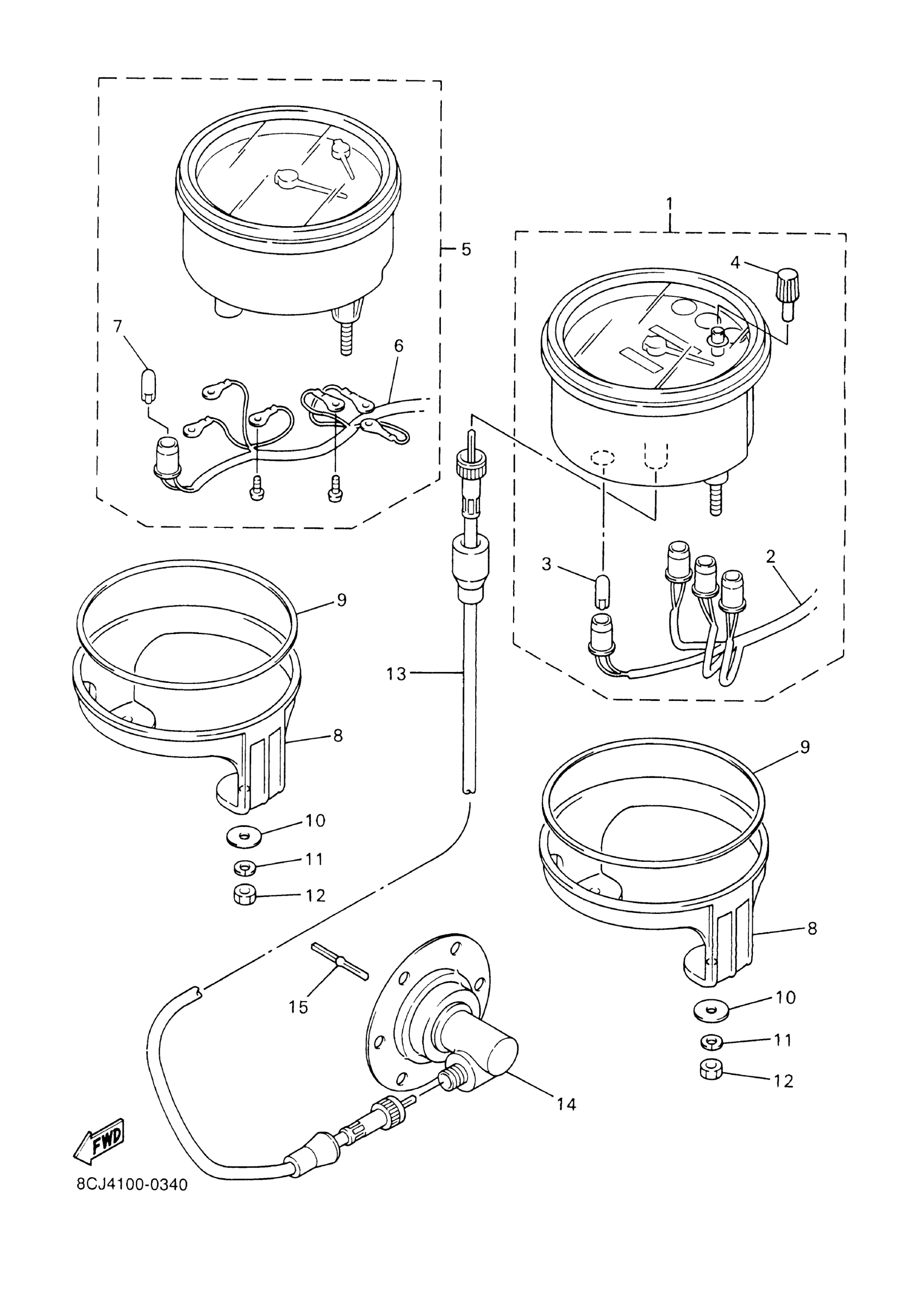

Find the part on the Meter diagram for your 2000 Yamaha Vmax 700 (VX700D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha Vmax 700 (VX700D) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY (MILE/H)

8DF-83510-40-00

1
Out of stock

2

. SOCKET CORD ASSY

8DF-83509-40-00

1
Out of stock

3

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

4

. KNOB, TRIP METER

8DF-83578-00-00

1
Out of stock

5

TACHOMETER ASSY

8DF-83540-42-00

—

$378.48

In stock

6

SOCKET CORD ASSY

8DF-83509-10-00

—

$55.09

In stock

7

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

8

BRACKET, METER

8DF-83519-40-00

1
Out of stock

9

DAMPER

8DF-83523-40-00

1
Out of stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

NUT(6TA)

95317-06600-00

1

$2.69

In stock

13

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

1

$72.28

In stock

14

METER GEAR HOUSING COMP.

8CR-47700-00-00

1

$142.55

In stock

15

JOINT

8K4-47715-00-00

1

$4.60

In stock
