- VX700D (VMAX 700) 8DS3 2000
CARBURETOR
2000 Yamaha Vmax 700 (VX700D) Carburetor Diagram

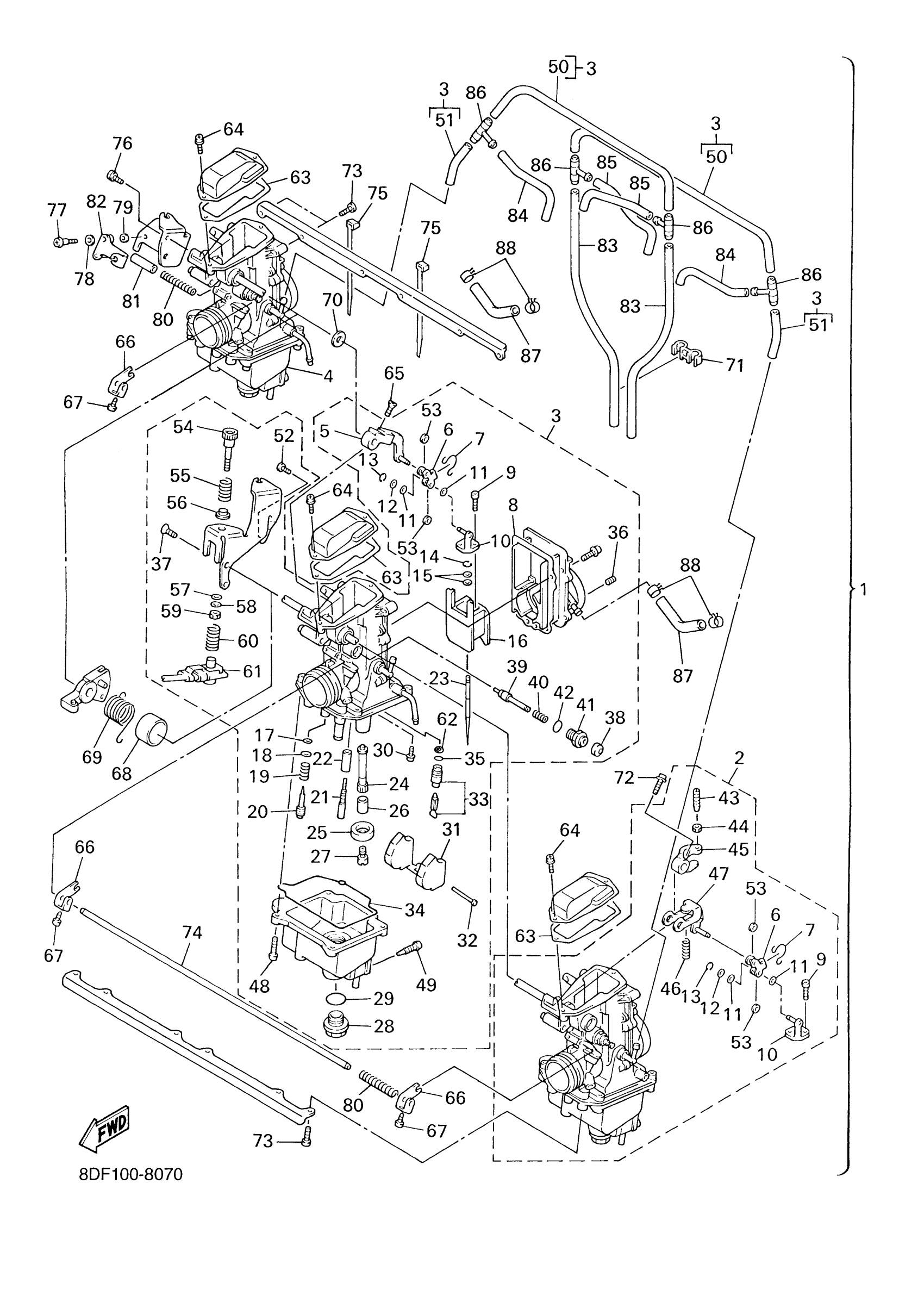

Find the part on the Carburetor diagram for your 2000 Yamaha Vmax 700 (VX700D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSY
8CH-14100-10-00
2
. CARBURETOR ASSY 1
8CH-14101-10-00
3
. CARBURETOR ASSY 2
8CH-14102-10-00
4
. CARBURETOR ASSY 3
8CH-14103-10-00
16
. VALVE, THROTTLE 1
89A-14112-35-00
21
. JET, PILOT (# 575)
3H1-14142-57-00
21
. JET, PILOT (# 60)
3H1-14142-60-00
21
.. JET, PILOT (# 625)
3H1-14142-62-00
23
. NEEDLE
275-14116-F1-00
24
. NOZZLE, MAIN
8CH-14141-58-00
27
JET, MAIN (#135)
3G2-14231-27-00
27
JET, MAIN (#140)
3G2-14231-28-00
27
JET, MAIN (#145)
3G2-14231-29-00
27
JET,MAIN #137.5
3G2-1423A-78-00
27
JET, MAIN (#136.3)
3G2-1423E-54-00
29
O-RING (541)
558-14147-00-00
30
SCREW
2LN-14565-00-00
32
PIN, FLOAT
537-14186-00-00
35
O-RING
8F2-14147-00-00
37
SCREW,FLAT
98707-05008-00
38
. COVER, PLUNGER CAP
302-14173-00-00
39
. PLUNGER, STARTER
4G0-14171-00-00
41
. CAP, PLUNGER
1FN-14174-00-00
45
. LEVER
89A-14276-00-00
47
. LEVER, STARTER
89A-14905-00-00
50
. PIPE
84M-14197-00-00
51
. PIPE 1
8CH-14348-00-00
58
. WASHER
1UF-14952-00-00
62
NET, FILTER
1J7-14994-00-00
65
. SCREW, FLAT HEAD (98702-04014-00 )
6K8-14523-10-00
66
. LEVER COMP. 1
89A-14208-00-00
68
. COLLAR
89A-14264-00-00
69
. SPRING
8CH-14589-00-00
70
. WASHER
3H1-14227-00-00
72
SCREW, PAN HEAD
98517-04016-00
74
. SHAFT, STARTER LEVER
8CH-14978-00-00
75
CLIP, PIPE
35H-14139-00-00
77
. PLUG, SCREW
22F-14115-00-00
79
. WASHER
3FV-14962-00-00
80
. SPRING, PLUNGER
1AE-14135-00-00
81
. CAP
89A-14118-00-00
82
. LEVER
89A-14588-00-00
83
. PIPE
8A7-14197-00-00
85
. PIPE
8F2-14197-00-00
87
. HOSE
8CH-14987-10-00
88
CLIP (3G0)
90467-10039-00
