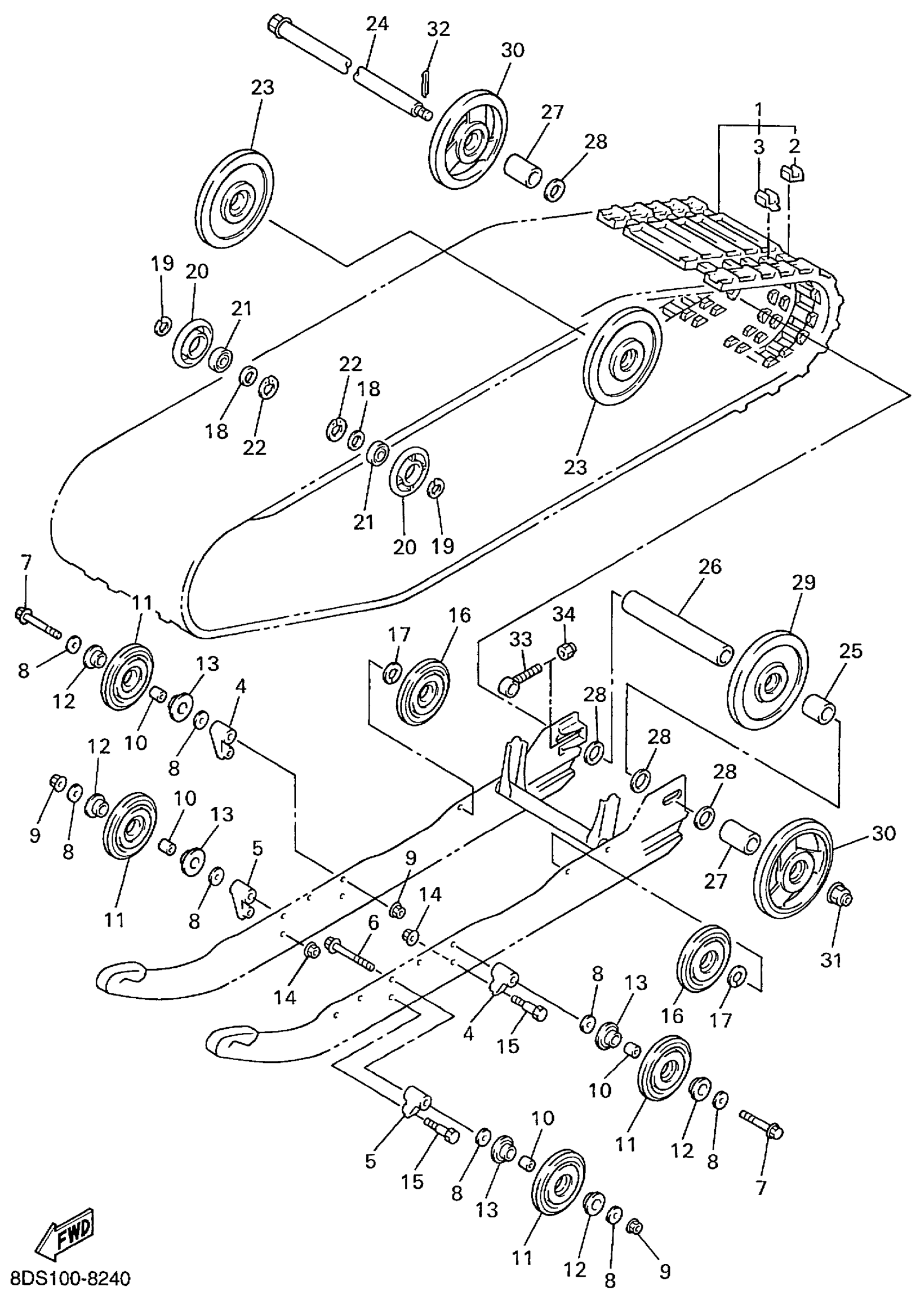

Yamaha VX700C (VMAX 700) 8DS2 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

8CH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

8CR-47113-00-00

$3.95

3

METAL, SLIDE

8CR-47115-00-00

$6.72

4

BRACKET 7

8DF-47419-00-00

Unavailable

5

BRACKET 7

8DF-47419-10-00

Unavailable

6

BOLT, WASHER BASED(59V)

90105-10392-00

$8.40

7

BOLT,FLANGE

95817-10090-00

$6.86

8

WASHER, PLATE(8CM)

90201-100S0-00

$5.00

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

10

COLLAR

90387-10079-00

Unavailable

11

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

12

SPACER

8CR-47341-01-00

Unavailable

13

SPACER

8CR-47341-11-00

$10.69

14

NUT, SELF-LOCKING

90185-08169-00

$7.09

15

BOLT(8CM)

90101-08774-00

$4.63

16

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

17

CIRCLIP(JF7)

99009-25400-00

$6.68

18

COLLAR(8AB)

90387-2004V-00

$9.15

19

CIRCLIP(1AR)

99009-20400-00

$6.17

20

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$53.83

21

BEARING(8AB)

93306-00444-00

$35.70

22

CIRCLIP(5U8)

99009-42500-00

$6.77

23

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

24

REAR AXLE COMP.

8L8-47520-02-00

$83.57

25

COLLAR

90387-2012E-00

$8.09

26

COLLAR

90387-2012C-00

$21.37

27

COLLAR

90387-2012D-00

$12.03

28

WASHER, PLATE(89W)

90201-205R6-00

$10.68

29

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

30

WHEEL RED PLASTIC ASSY

8CR-47550-21-RD

Unavailable

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

32

PIN, COTTER

91401-30025-00

$6.18

33

COLLAR 3

8K2-47479-01-00

$25.69

34

NUT, NYLON

95707-10300-00

$6.68
