1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

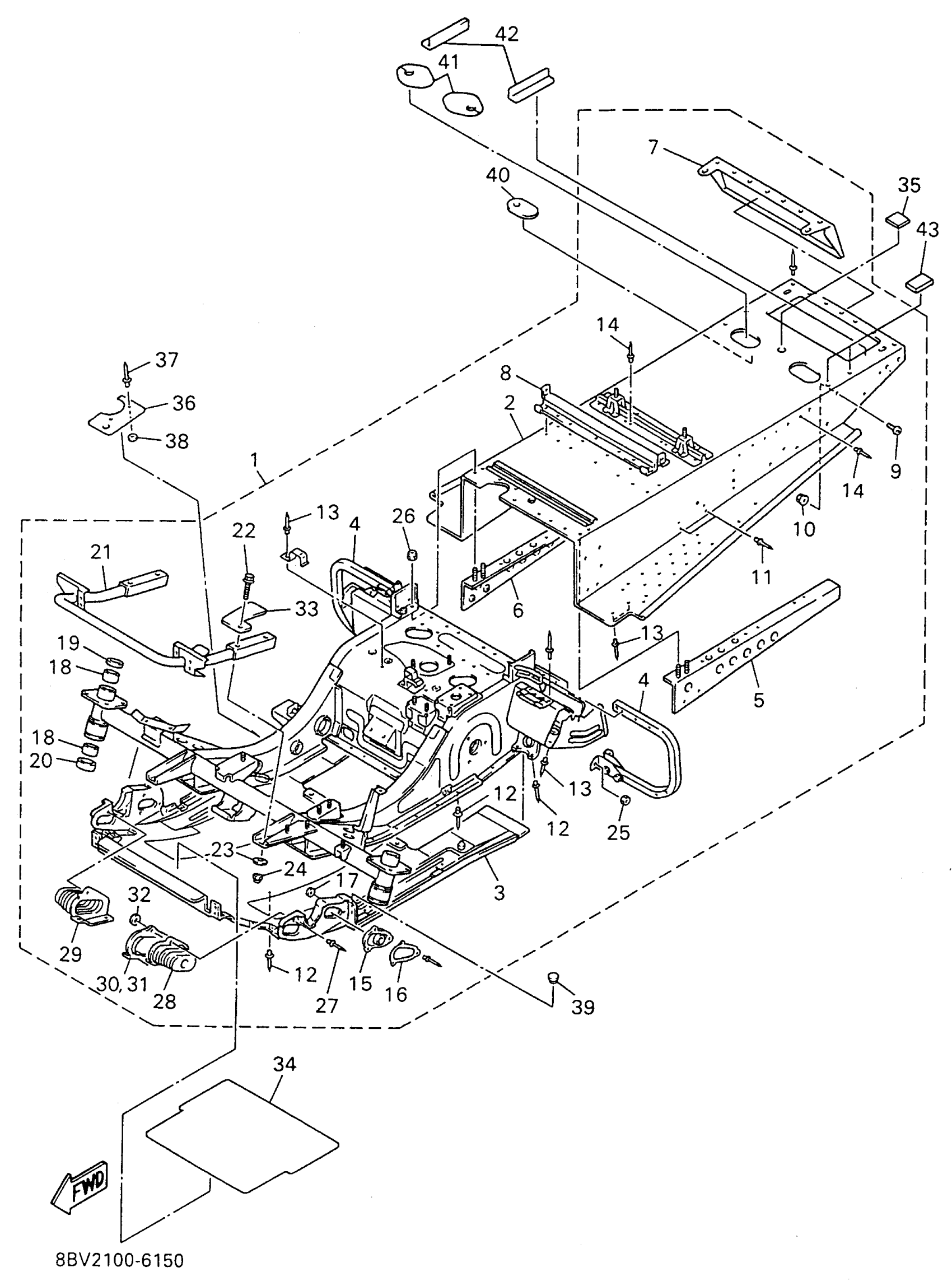

1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8CM-21910-10-00

1
Out of stock

2

. PANEL, FRAME

8CM-21911-10-00

1
Out of stock

3

. PANEL, SUB FRAME 1

8AB-21912-00-00

1
Out of stock

4

. REINFORCEMENT, FOOTREST 1

8AB-21926-00-00

1
Out of stock

5

. PATCH 4

8AB-21964-00-00

1
Out of stock

6

. PATCH 5

8AB-21965-00-00

1
Out of stock

7

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

8

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

9

SCREW,BINDING

98907-08014-00

1
Out of stock

10

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

13

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

14

RIVET(89R)

90269-04044-00

—
Out of stock

15

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

16

SPACER

8M6-21998-00-00

—

$3.05

In stock

17

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

18

—

$9.68

In stock

19

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

20

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

21

. BUMPER, FRONT 2

8AB-77512-00-00

1
Out of stock

22

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

23

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

24

NUT, NYLON

95717-08300-00

—

$2.57

In stock

25

NUT, NYLON

95707-06300-00

—

$3.20

In stock

26

NUT, NYLON

95717-08300-00

—

$2.57

In stock

27

RIVET, BLIND

90267-47197-00

—

$1.91

In stock

28

. COVER 1

8AB-2198F-00-00

1
Out of stock

29

. COVER 2

8AB-2198G-00-00

1
Out of stock

30

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

31

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

32

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

33

. COVER 3

8AB-2198J-00-00

1
Out of stock

34

SHIELD, HEAT

8AB-2199H-00-00

1
Out of stock

35

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

36

SHIELD, NOISE

8AB-2199F-00-00

1
Out of stock

37

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

38

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

39

PLUG(2GU)

90338-12192-00

—

$6.18

In stock

40

PATCH 5

82M-21965-00-00

1
Out of stock

41

PATCH 5

88R-21965-00-00

1
Out of stock

42

COVER 6

8CM-1246J-10-00

1
Out of stock

43

SPACER

8BN-21998-00-00

1
Out of stock
