1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA) Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

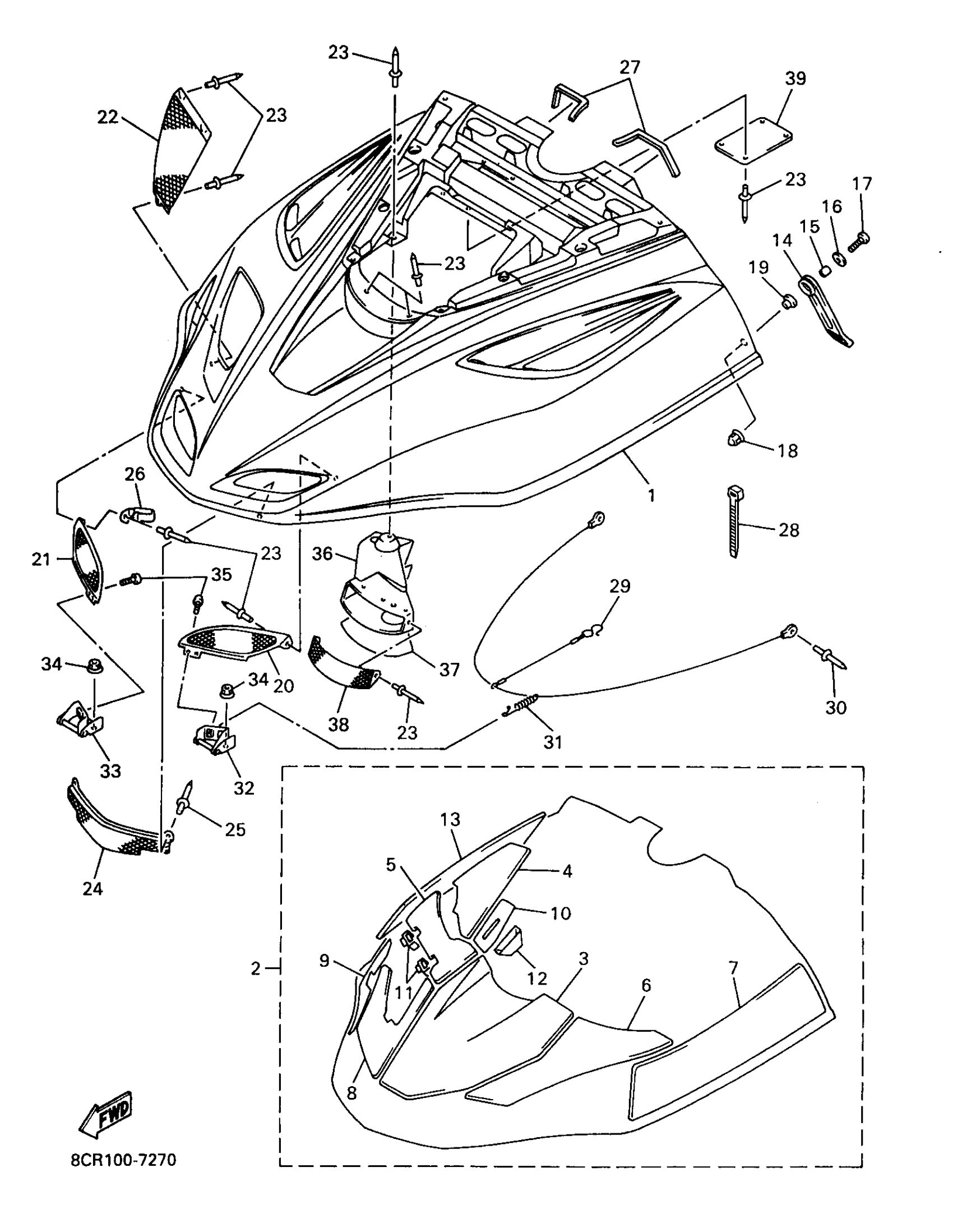

1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD 1

8DB-77111-01-00

1
Out of stock

1

SHROUD (YAMAHA BLACK)

8DB-77111-10-00

1
Out of stock

2

LINING SET

8CR-W7726-00-00

1
Out of stock

3

DAMPER, NOISE 12

8CR-77272-00-00

—
Out of stock

4

. DAMPER, NOISE 13

8CR-77273-00-00

1
Out of stock

5

. DAMPER, NOISE 14

8CR-77274-00-00

1
Out of stock

6

DAMPER, NOISE 15

8CR-77275-00-00

—
Out of stock

7

DAMPER, NOISE 16

8CR-77276-00-00

—
Out of stock

8

. DAMPER, NOISE 18

8CR-77278-00-00

1
Out of stock

9

. TAPE 1

8CR-7717E-00-00

1
Out of stock

10

. TAPE 2

8CR-7717F-00-00

1
Out of stock

11

. TAPE 3

8CR-7717G-00-00

1
Out of stock

12

. TAPE 4

8CR-7717H-00-00

1
Out of stock

13

. SHIELD, HEAT

8CR-2199H-00-00

1
Out of stock

14

BODY, LATCH 1

8V0-77171-00-00

1
Out of stock

15

COLLAR (420)

90387-06241-00

—
Out of stock

16

WASHER, PLATE

90201-06020-00

—
Out of stock

17

SCREW, BINDING

98907-06025-00

—
Out of stock

18

NUT, CROWN(1FN)

90176-06055-00

—
Out of stock

19

C0LLAR

90387-062M9-00

—
Out of stock

20

LOUVER 1

8CR-77131-00-00

—
Out of stock

21

LOUVER 2

8CR-77132-00-00

—
Out of stock

22

LOUVER 3

8CR-77133-00-00

1
Out of stock

23

RIVET, BLIND(8CJ)

90267-48182-00

—
Out of stock

24

LOUVER 4

8CR-77134-00-00

—
Out of stock

25

RIVET, BLIND (8L0)

90267-48059-00

—
Out of stock

26

CLAMP(51Y)

90465-08277-00

—
Out of stock

27

TRIM 6

8CR-77226-00-00

1
Out of stock

28

CLAMP(4FM)

90464-15195-00

—
Out of stock

29

STOPPER, SHROUD

8CR-77118-00-00

1
Out of stock

30

RIVET, BLIND

90267-48018-00

—
Out of stock

31

CLAMP, ROD

89A-77159-00-00

—
Out of stock

32

HINGE ASSY

8CR-77140-00-00

1
Out of stock

33

HINGE ASSY 2

8CR-7714A-00-00

—
Out of stock

34

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

35

SCREW, BINDING

98907-06014-00

—
Out of stock

36

DUCT

8CR-77194-00-00

—
Out of stock

37

DAMPER, NOISE 17

8CR-77277-00-00

—
Out of stock

38

LOUVER 5

8CR-77109-00-00

1
Out of stock

39

PLATE 1

8CR-77185-00-00

1
Out of stock
