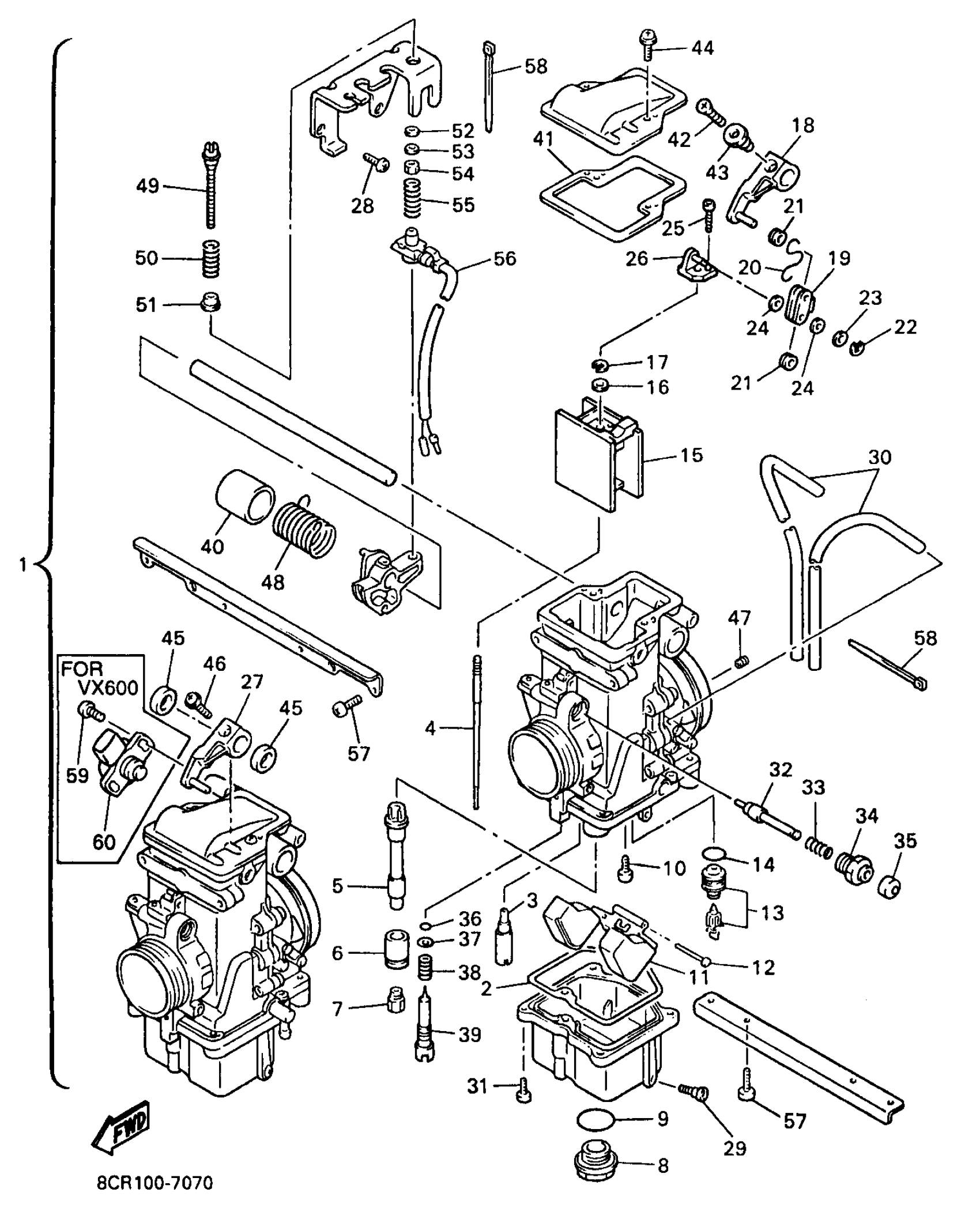

1998 Yamaha Vmax 600 XTC (VX600XTCB) Carburetor Diagram
Find the part on the Carburetor diagram for your 1998 Yamaha Vmax 600 XTC (VX600XTCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY
8CJ-14100-00-00
1
CARBURETOR ASSEMBLY
8CR-14100-00-00
4
. NEEDLE
8CA-14116-A3-00
4
. NEEDLE
8CR-14116-A2-00
5
. NOZZLE, MAIN
8AY-14141-56-00
6
. RING
8CA-14194-00-00
7
JET, MAIN (#140)
3G2-14231-28-00
7
JET, MAIN (#145)
3G2-14231-29-00
7
JET,MAIN #152.5
3G2-1423A-81-00
9
O-RING (541)
558-14147-00-00
10
SCREW
2LN-14565-00-00
11
. FLOAT
8AY-14185-10-00
12
PIN, FLOAT
537-14186-00-00
14
O-RING
8F2-14147-00-00
15
. VALVE, THROTTLE 1
8CJ-14112-30-00
18
LEVER, STARTER
8CW-14905-00-00
19
. PLATE
8AY-14243-00-00
20
. CLIP
8CD-14137-00-00
25
. SCREW
8CC-14216-00-00
27
LEVER,STARTER
8CW-14905-10-00
30
HOSE
88R-14987-00-00
32
. PLUNGER, STARTER
8CW-14171-00-00
33
. SPRING, PLUNGER
256-14135-00-00
34
. CAP, PLUNGER
1FN-14174-00-00
35
. COVER, PLUNGER CAP
302-14173-00-00
40
. COLLAR
8AY-14265-00-00
41
. GASKET
8AY-14199-00-00
42
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
43
. RING
8AY-14918-00-00
44
SCREW, PAN HEAD WITH WASHER
97607-04108-00
45
. SPACER
583-14264-00-00
47
. PILOT JET, AIR (05)
239-14172-05-00
47
. PILOT JET, AIR (06)
239-14172-06-00
47
. PILOT JET, AIR (08)
239-14172-08-00
48
SPRING
8CJ-14275-00-00
48
SPRING
8CJ-14275-00-00
53
. WASHER
1UF-14952-00-00
58
CLIP, PIPE
35H-14139-00-00
59
. SCREW
8CC-14216-00-00
60
. THROTTLE SENSOR ASSEMBLY
8CR-85885-00-00
