1998 Yamaha Vmax 600 XT (VX600XTB) Intake Diagram

← All diagrams

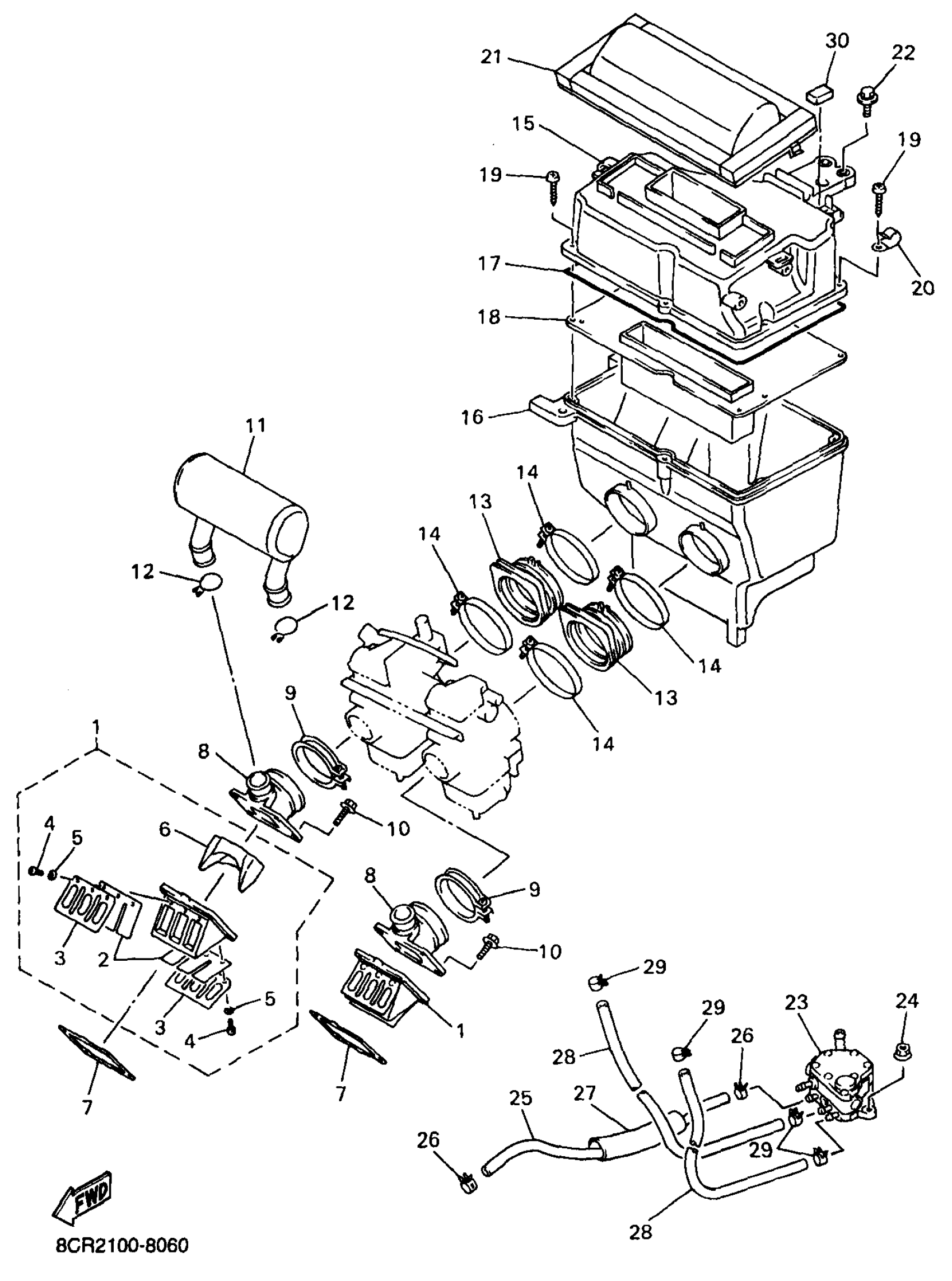

Find the part on the Intake diagram for your 1998 Yamaha Vmax 600 XT (VX600XTB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Vmax 600 XT (VX600XTB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4DA-13610-01-00

1
Out of stock

2

REED, VALVE

3SP-13613-01-00

1
Out of stock

3

STOPPER, REED VALVE

8DJ-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

. SPACER, REED VALVE

4DA-13625-00-00

1
Out of stock

7

GASKET, VALVE SEAT

80L-13621-01-00

1
Out of stock

8

MANIFOLD, INTAKE

8CR-13555-00-00

1
Out of stock

9

BAND

86M-13575-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06020-00

1
Out of stock

11

CHAMBER, AIR

8CR-13581-00-00

—
Out of stock

12

CLIP(8V0)

90467-24096-00

1
Out of stock

13

JOINT, AIR CLEANER 1

8CR-14453-00-00

1
Out of stock

14

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

15

SILENCER, INTAKE 1

8CR-14431-01-00

1
Out of stock

16

SILENCER, INTAKE 2

8CR-14441-01-00

1
Out of stock

17

SEAL

51Y-14462-00-00

—
Out of stock

18

PLATE

8CR-14477-00-00

1
Out of stock

19

SCREW, TAPPING(82M)

90167-05043-00

—
Out of stock

20

CLAMP

90465-08028-00

1
Out of stock

21

ELEMENT ASSY, AIR CLEANER

8CR-14450-00-00

—
Out of stock

22

BOLT, WITH WASHER(3FC)

90119-06163-00

—
Out of stock

23

FUEL PUMP ASSY

8CR-24410-01-00

—
Out of stock

24

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

25

HOSE (L450)

90445-10144-00

—
Out of stock

26

CLIP (3G0)

90467-10039-00

—
Out of stock

27

HOSE (L150)

90445-226J7-00

1
Out of stock

28

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

29

CLIP (8A1)

90467-09026-00

—
Out of stock

30

SPACER 2

8CR-24175-00-00

1
Out of stock
