1997 Yamaha Vmax 600 XT (VX600XTA) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1997 Yamaha Vmax 600 XT (VX600XTA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

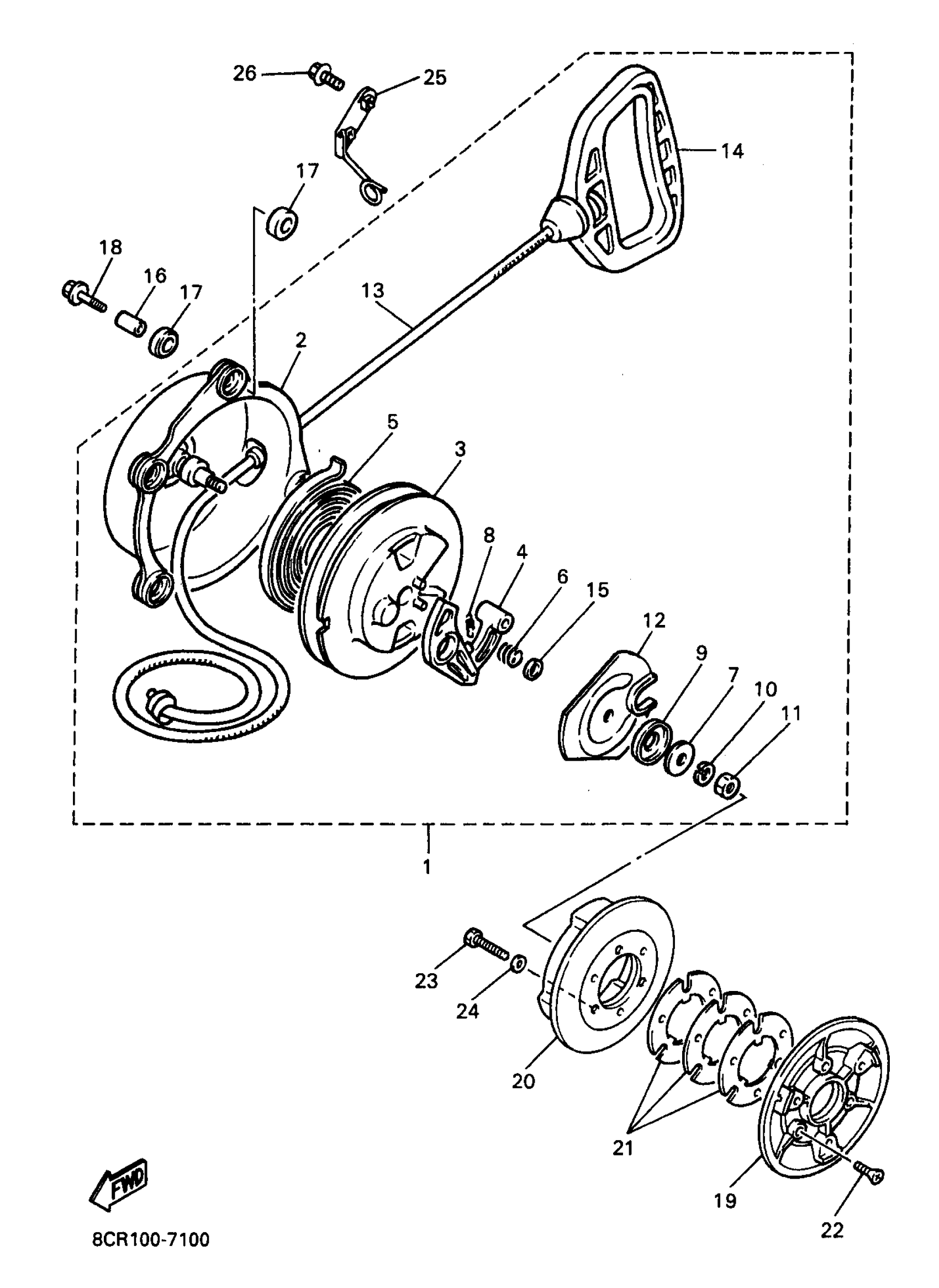

1997 Yamaha Vmax 600 XT (VX600XTA) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

84M-15710-01-00

1
Out of stock

2

. CASE, STARTER

82M-15711-00-00

1
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8F3-15741-01-00

1
Out of stock

5

SPRING, STARTER

8F3-15713-01-00

1
Out of stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1
Out of stock

7

WASHER, THRUST

8F3-15739-01-00

1
Out of stock

8

SPRING, RETURN

8F3-15734-00-00

1
Out of stock

9

WASHER, THRUST

8G5-15739-00-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

NUT(650)

95380-06700-00

1
Out of stock

12

. PLATE, DRIVE

82M-15716-00-00

1
Out of stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1
Out of stock

14

HANDLE, STARTER

8F3-15755-00-00

1
Out of stock

15

COLLOR

82M-15779-00-00

1
Out of stock

16

COLLAR

90387-063E9-00

1
Out of stock

17

BUSH (8M6)

90385-12036-00

—
Out of stock

18

BOLT, WITH WASHER(89J)

90119-06211-00

—
Out of stock

19

PULLEY 1

8CA-12618-00-00

1
Out of stock

20

PULLEY, STARTER

8CA-15723-00-00

1
Out of stock

21

SHIM

8CA-15721-00-00

1
Out of stock

21

SHIM

8CA-15721-00-00

1
Out of stock

22

SCREW, FLAT HEAD(4EM)

98707-06016-00

—
Out of stock

23

BOLT, HEXAGON

97017-08030-00

—
Out of stock

24

WASHER(6TA)

92907-08600-00

—
Out of stock

25

GUIDE, ROPE

8CR-15758-00-00

1
Out of stock

26

BOLT, FLANGE

95817-06012-00

—
Out of stock
