1996 Yamaha Vmax 600 (VX600W) SKI Diagram

← All diagrams

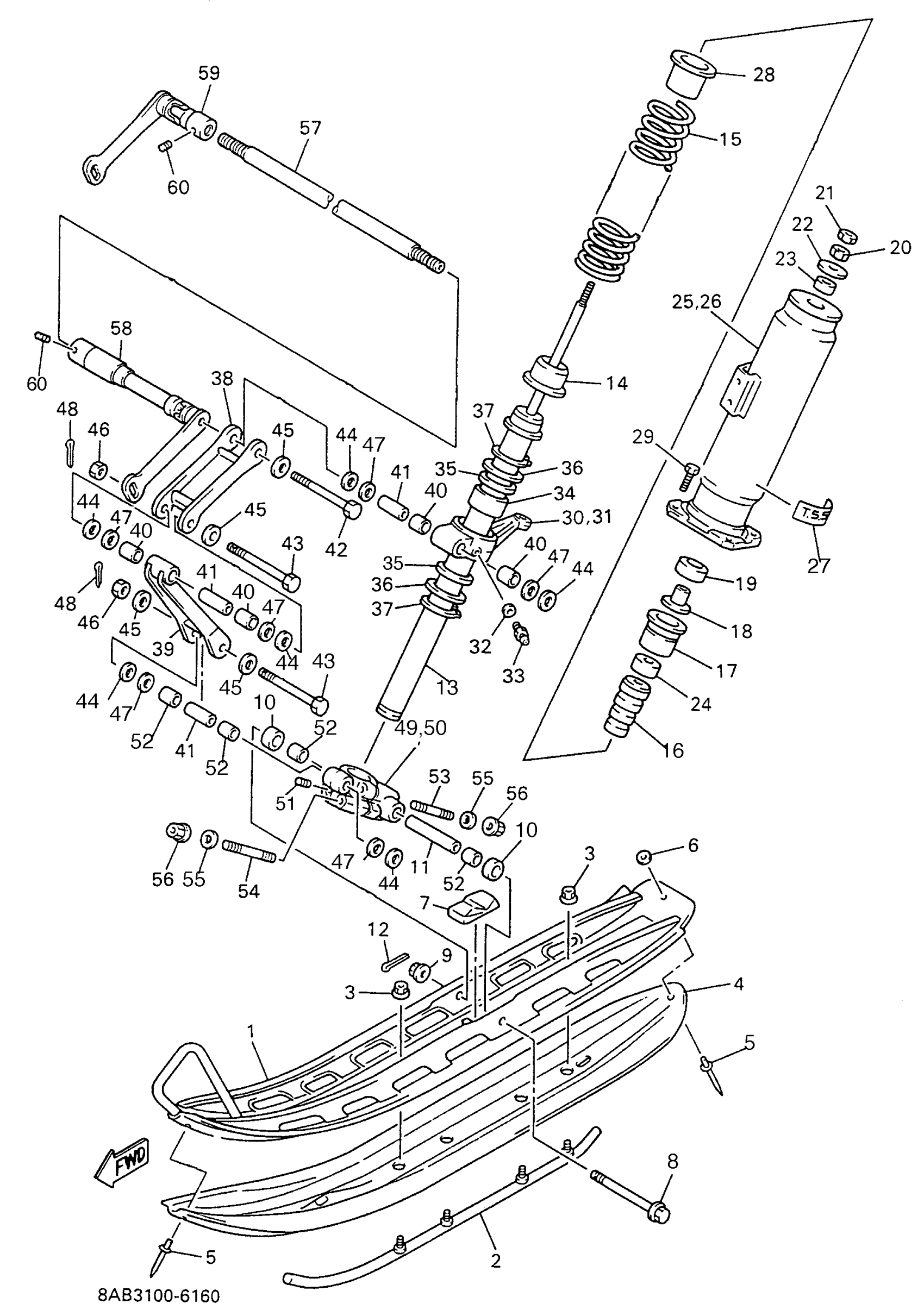

Find the part on the SKI diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 (VX600W) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AB-23710-01-00

1
Out of stock

2

RUNNER 1 (8CM-23731-00-00)

8CM-23731-00-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

RUNNER 2

8AB-23732-11-RD

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1

$5.77

In stock

6

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

7

STOPPER 1

8AB-23743-01-00

1
Out of stock

8

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

10

COLLAR

90387-1402C-00

1
Out of stock

11

COLLAR(8AB)

90387-1002P-00

1

$19.05

In stock

12

PIN, COTTER

91490-20025-00

1

$1.31

In stock

13

DAMPER SUB ASSEMBLY

8BN-22401-00-00

1
Out of stock

14

SEAT, SPRING 2

82M-23777-00-00

—

$16.71

In stock

15

SPRING, COMPRESSION

90501-753J5-00

1
Out of stock

16

BUMP, STOP

89L-22493-00-00

—

$50.17

In stock

17

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

18

COLLAR(82M)

90387-084R1-00

—

$12.29

In stock

19

WASHER

82M-23779-00-00

—

$12.78

In stock

20

. NUT

90170-08220-00

1
Out of stock

21

NUT(6TA)

95337-08600-00

—

$6.17

In stock

22

WASHER, PLATE(82M)

90201-080L1-00

—

$2.67

In stock

23

COLLAR

90387-1702A-00

1
Out of stock

24

COLLAR

90387-1102B-00

1
Out of stock

25

HOLDER,ABSORBER

8AB-2376J-10-00

1
Out of stock

25

HOLDER,ABSORBER

8AS-2376J-10-00

1
Out of stock

26

HOLDER,ABSORBER 2

8AB-2377J-10-00

1
Out of stock

26

HOLDER,ABSORBER 2

8AS-2377J-10-00

1
Out of stock

27

EMBLEM 15

8BF-77371-00-00

1
Out of stock

28

PROTECTOR

8AB-2376R-01-00

1
Out of stock

28

PROTECTOR

8CA-2376R-00-00

1
Out of stock

29

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

30

ARM, OUTSIDE 1

82M-23851-00-00

—

$108.65

In stock

31

ARM, OUTSIDE 2 (R, H)

82M-23852-00-00

1
Out of stock

32

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

33

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

34

—

$33.18

In stock

35

OIL SEAL (8U7)

93109-53036-00

—

$10.34

In stock

36

WASHER, PLATE(8W1)

90201-535H6-00

—

$3.78

In stock

36

WASHER, PLATE (8L9)

90201-536A1-00

—

$3.66

In stock

37

CIRCLIP (8L9)

93410-52061-00

—

$10.51

In stock

38

ARM, FRONT 1

8AB-2382E-00-00

1
Out of stock

39

ARM, FRONT 2

8AB-2382F-00-00

1
Out of stock

40

—

$9.15

In stock

41

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

42

BOLT

90101-10040-00

1
Out of stock

43

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

44

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

45

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

46

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

47

WASHER(82M)

90209-14296-00

—

$9.10

In stock

48

PIN, COTTER

91490-20025-00

1

$1.31

In stock

49

BRACKET 1

84M-2376E-00-00

—

$259.32

In stock

50

BRACKET 2

84M-2377E-00-00

—

$339.69

In stock

51

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

52

—

$9.15

In stock

53

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

54

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

55

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

56

NUT, NYLON

95717-08300-00

—

$2.57

In stock

57

BAR,STABLZR FRONT

8AB-2386E-01-00

1
Out of stock

58

JOINT, STABILIZER 1

8CL-2385L-00-00

—
Out of stock

59

JOINT, STABILIZER 2

8CL-2385M-00-00

1
Out of stock

60

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock
