1996 Yamaha Vmax 600 (VX600W) Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

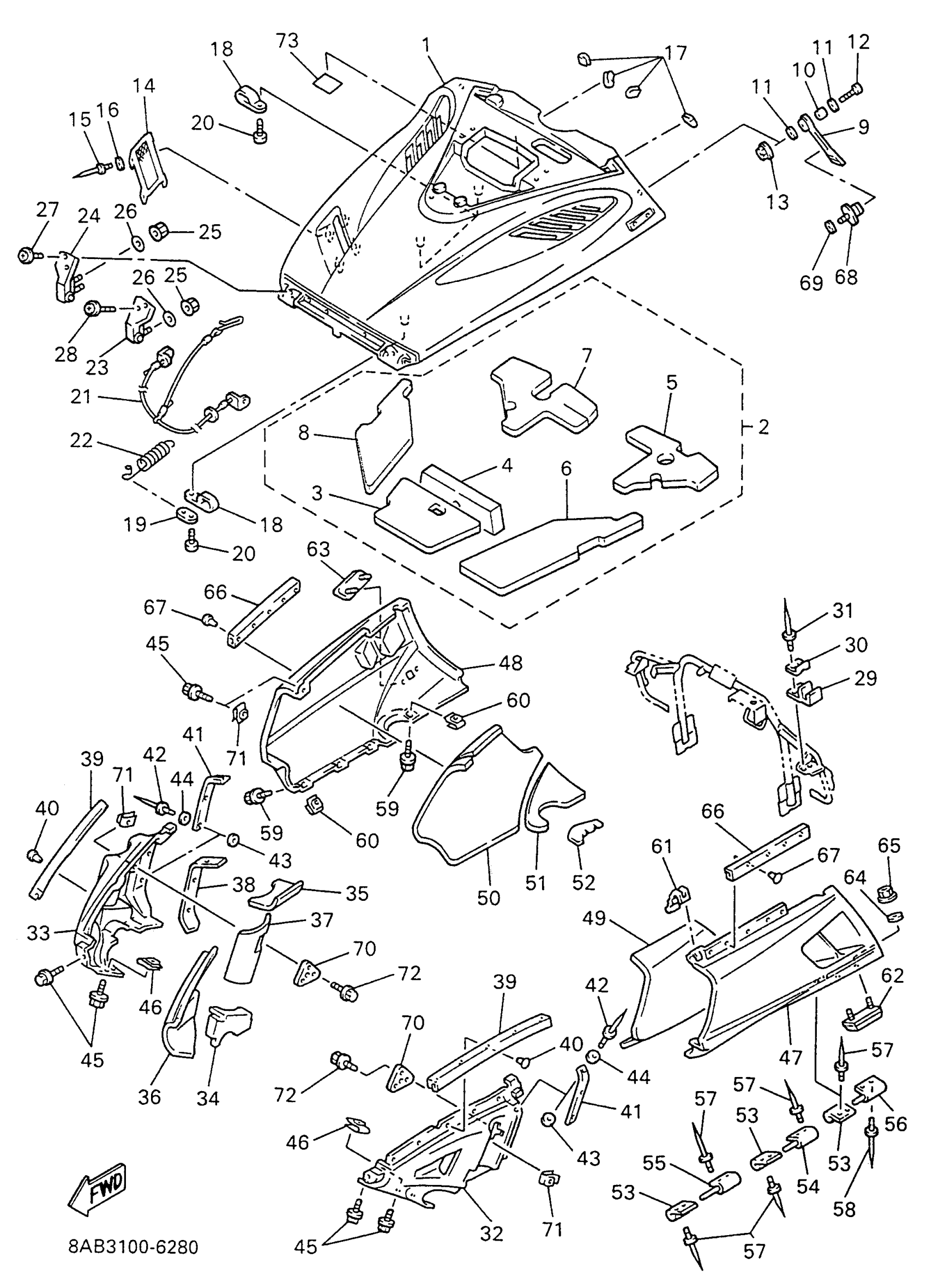

1996 Yamaha Vmax 600 (VX600W) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8AB-77111-00-00

1
Out of stock

1

SHROUD

8AB-77111-10-00

1
Out of stock

2

LINING SET

8AB-W7726-00-00

—
Out of stock

3

. LINING, SHROUD 1

8AB-77261-00-00

1
Out of stock

4

. LINING, SHROUD 3

8AB-77263-00-00

1
Out of stock

5

. LINING, SHROUD 4

8AB-77264-00-00

1
Out of stock

6

. LINING, SHROUD 5

8AB-77265-00-00

1
Out of stock

7

. LINING, SHROUD 6

8AB-77266-00-00

1
Out of stock

8

. LINING, SHROUD 7

8AB-77267-00-00

1
Out of stock

9

BODY, LATCH 1

8V0-77171-00-00

1

$18.37

In stock

10

COLLAR (420)

90387-06241-00

1

$6.18

In stock

11

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

12

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

13

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

14

PROTECTOR 7

8AB-77557-00-00

1
Out of stock

15

RIVET, BLIND (8M6)

90267-48051-00

—

$1.88

In stock

16

WASHER, PLAIN (3GDF)

90201-051K1-00

—

$6.46

In stock

17

TRIM 6

89A-77226-00-00

1
Out of stock

18

CLAMP(8BN)

90461-08134-00

—

$7.25

In stock

19

WASHER, SPECIAL

8AB-77116-00-00

1
Out of stock

20

SCREW, TAPPING(4MV)

97707-50016-00

—

$1.16

In stock

21

STOPPER, SHROUD

8AB-77118-00-00

1
Out of stock

22

CLAMP, ROD

89A-77159-00-00

—

$9.75

In stock

23

HINGE ASSY

89A-77140-00-00

—

$34.06

In stock

24

HINGE ASSY 2

89A-7714A-00-00

—
Out of stock

25

NUT, NYLON

95707-06300-00

—

$3.20

In stock

26

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

27

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

28

SCREW, WITH WASHER

90159-06108-00

1
Out of stock

29

STOPPER

8V0-77188-00-00

1
Out of stock

30

WASHER, SPECIAL

8V0-77116-01-00

—

$6.95

In stock

31

RIVET, BLIND (J10)

90267-40077-00

—
Out of stock

32

HOOD 1

8AB-21982-00-00

1
Out of stock

32

HOOD 1

8AB-21982-10-00

1
Out of stock

33

HOOD 2

8AB-21983-00-00

1
Out of stock

33

HOOD 2

8AB-21983-10-00

1
Out of stock

34

DAMPER, NOISE 12

8AB-77272-00-00

1
Out of stock

35

DAMPER, NOISE 13

8AB-77273-00-00

1
Out of stock

36

DAMPER, NOISE 11

8AB-77271-00-00

1
Out of stock

37

DAMPER, NOISE 14

8AB-77274-00-00

1
Out of stock

38

DAMPER, NOISE 18

8AB-77278-00-00

1
Out of stock

39

BUSH, RUBBER 1

8AB-77515-00-00

1
Out of stock

40

RIVET(81E)

90269-05055-00

—

$7.02

In stock

41

TRIM 1

82M-2196T-00-00

1
Out of stock

42

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

43

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

44

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

45

BOLT, WITH WASHER

90119-06226-00

—

$2.15

In stock

46

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

47

HOOD 3

8AB-2197H-00-00

1
Out of stock

47

HOOD 3

8AB-2197H-10-00

1
Out of stock

48

HOOD 4

8AB-2198H-00-00

1
Out of stock

48

HOOD 4

8AB-2198H-10-00

1
Out of stock

49

LINING, SHROUD 2

8AB-77262-00-00

1
Out of stock

50

DAMPER, NOISE 15

8AB-77275-00-00

1
Out of stock

51

DAMPER, NOISE 16

8AB-77276-00-00

1
Out of stock

52

DAMPER, NOISE 17

8AB-77277-00-00

1
Out of stock

53

BRACKET, 1

88F-2194X-00-00

1
Out of stock

54

BRACKET 2

88R-2195X-00-00

1
Out of stock

55

BRACKET 2

88R-2195X-00-00

1
Out of stock

56

BRACKET 3

88F-2196F-00-00

—

$11.69

In stock

57

RIVET, BLIND (8L0)

90267-48059-00

—

$2.46

In stock

58

RIVET, BLIND (8J5)

90267-48057-00

—
Out of stock

59

BOLT, WITH WASHER

90119-06226-00

—

$2.15

In stock

60

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

61

STOPPER

8AB-77188-00-00

1
Out of stock

62

PROTECTOR 1

85L-77551-00-00

1
Out of stock

63

PROTECTOR 2

85L-77552-00-00

1
Out of stock

64

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

65

NUT, NYLON

95707-05300-00

—

$2.74

In stock

66

BUSH, RUBBER 2

8AB-77516-01-00

1
Out of stock

67

RIVET(81E)

90269-05055-00

—

$7.02

In stock

68

HOLDER, LATCH

8V0-77175-00-00

—

$15.43

In stock

69

PLATE

4U5-2176E-00-00

—
Out of stock

70

BRACKET 3

8AB-2196F-00-00

1
Out of stock

71

NUT

83R-77144-00-00

—

$6.20

In stock

72

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

73

LABEL, WARNING

8AB-77768-11-00

1
Out of stock
