1996 Yamaha Vmax 600 (VX600W) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

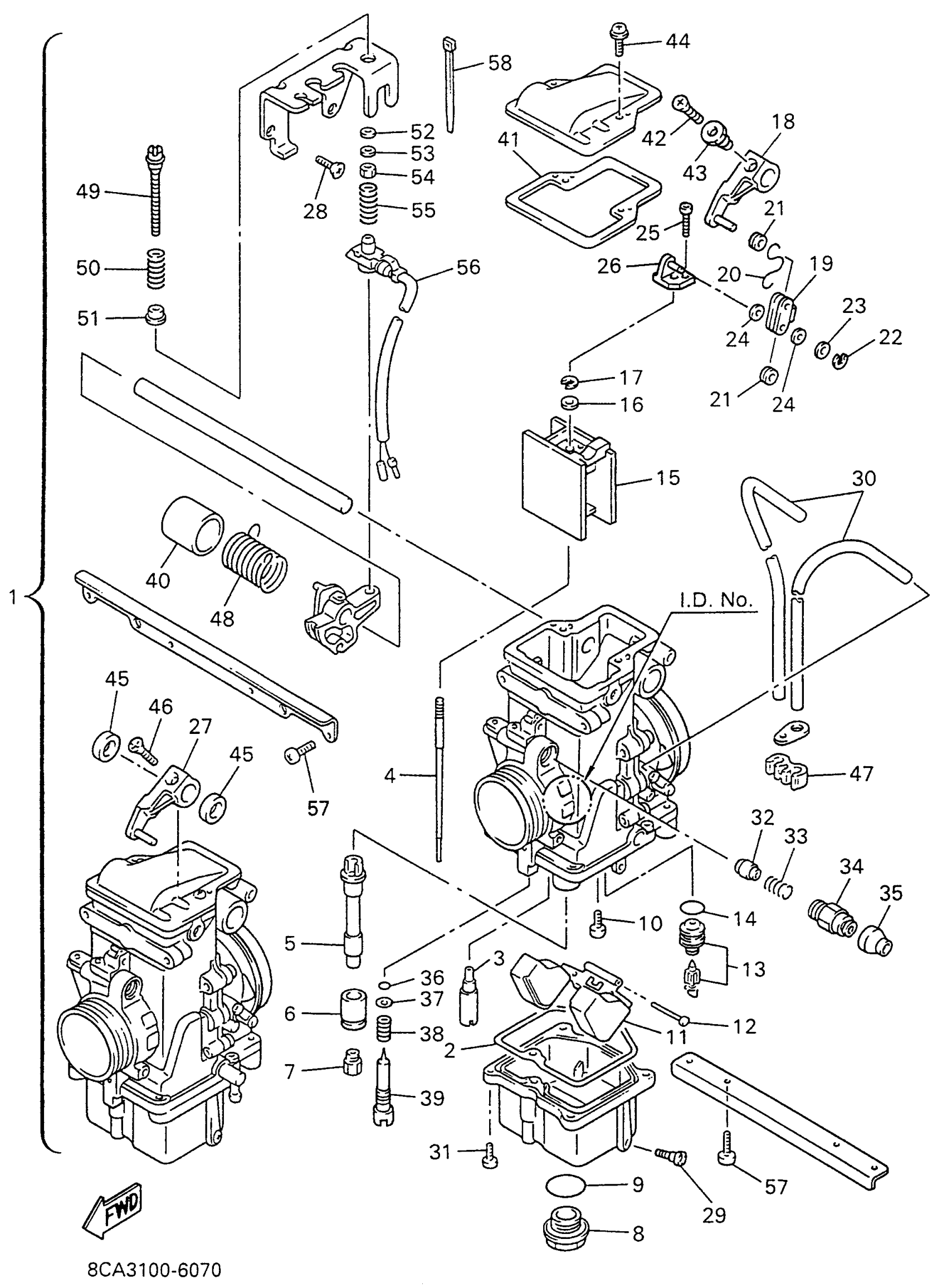

1996 Yamaha Vmax 600 (VX600W) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY

8CA-14100-10-00

1
Out of stock

2

O-RING

8AY-14147-00-00

1

$10.65

In stock

3

JET, PILOT (# 50)

3H1-14142-50-00

1

$14.25

In stock

3

JET, PILOT (# 52.5)

3H1-14142-52-00

1

$13.06

In stock

4

. NEEDLE

8CA-14116-A0-00

1
Out of stock

5

. NOZZLE, MAIN

8AY-14141-58-00

1
Out of stock

6

. RING

8CA-14194-00-00

1
Out of stock

7

JET, MAIN (#140)

3G2-14231-28-00

1
Out of stock

7

JET, MAIN (#145)

3G2-14231-29-00

1
Out of stock

7

JET, MAIN (#150)

3G2-14231-30-A0

1

$10.72

In stock

7

JET, MAIN (#155)

3G2-14231-31-00

1

$9.63

In stock

7

JET,MAIN #142.5

3G2-1423A-79-00

1

$8.02

In stock

7

JET,MAIN #147.5

3G2-1423A-80-A0

1

$10.52

In stock

7

JET,MAIN #152.5

3G2-1423A-81-00

1
Out of stock

7

JET, MAIN (#138.8)

3G2-1423E-55-00

1

$12.09

In stock

7

JET, MAIN (#141.3)

3G2-1423E-56-00

—

$10.45

In stock

7

JET MAIN (#143.8)

3G2-1423E-57-00

—

$12.58

In stock

7

JET, MAIN (#146.3)

3G2-1423E-58-00

—

$11.71

In stock

7

JET, MAIN #148.8

3G2-1423E-59-00

—

$11.08

In stock

7

JET, MAIN (#151.3)

3G2-1423E-60-00

—

$11.98

In stock

7

JET, MAIN (#153.8)

3G2-1423E-61-00

—

$10.29

In stock

7

JET, MAIN (#156.3)

3G2-1423E-62-00

—

$12.02

In stock

8

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

9

O-RING (541)

558-14147-00-00

—
Out of stock

10

SCREW

2LN-14565-00-00

—
Out of stock

11

. FLOAT

8AY-14185-10-00

1
Out of stock

12

PIN, FLOAT

537-14186-00-00

—
Out of stock

13

NEEDLE VALVE ASSY

1AE-14190-15-00

—

$42.76

In stock

14

O-RING

8F2-14147-00-00

—
Out of stock

15

. VALVE, THROTTLE 1

8CD-14112-25-00

1
Out of stock

16

WASHER

8AB-14227-00-00

—

$3.54

In stock

17

CLIP

256-14919-00-00

—

$6.17

In stock

18

. LEVER, STARTER

8CC-14905-00-00

1
Out of stock

19

. PLATE

8AY-14243-00-00

1
Out of stock

20

. CLIP

8CD-14137-00-00

1
Out of stock

21

. RING

8CC-14918-00-00

1
Out of stock

22

CLIP

3MA-14937-00-00

—

$0.54

In stock

23

GASKET

620-14198-00-00

—

$3.49

In stock

24

GASKET

3GF-14126-00-00

—

$0.63

In stock

25

. SCREW

8CC-14216-00-00

1
Out of stock

26

CONNECTOR

8CD-14188-00-00

—

$17.48

In stock

27

. LEVER, STARTER

8CC-14905-10-00

1
Out of stock

28

SCREW, FLAT

98707-05012-00

—
Out of stock

29

PLUG, DRAIN

12R-14191-00-00

—

$14.25

In stock

30

HOSE

88R-14987-00-00

1
Out of stock

31

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

32

PLUNGER, STARTER

8U9-14171-00-00

—

$24.23

In stock

33

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

34

. HOLDER

8AY-14261-00-00

1
Out of stock

35

COVER, PLUNGER CAP

22F-14173-00-00

—
Out of stock

36

O-RING, PILOT SCREW

3H1-14147-00-00

—

$7.51

In stock

37

WASHER, PILOT SCREW

3H1-14962-00-00

—

$6.43

In stock

38

SPRING

5K7-14134-00-00

—

$10.34

In stock

39

SCREW, ADJ.

89A-14565-00-00

—

$17.83

In stock

40

. COLLAR

8AY-14265-00-00

1
Out of stock

41

. GASKET

8AY-14199-00-00

1
Out of stock

42

. SCREW, FLAT HEAD (98701-05018-00)

98703-05018-00

1
Out of stock

43

. RING

8AY-14918-00-00

1
Out of stock

44

SCREW, PAN HEAD WITH WASHER

97607-04108-00

—
Out of stock

45

. SPACER

583-14264-00-00

1
Out of stock

46

SCREW, FLAT

98707-05014-00

—

$7.68

In stock

47

CLIP

87M-14137-00-00

—

$11.91

In stock

48

SPRING

8CJ-14275-00-00

1
Out of stock

49

SCREW, THROTTLE

8CC-14122-00-00

—

$30.68

In stock

50

SPRING

8X0-14500-00-00

—

$17.91

In stock

51

RING

8X0-14184-00-00

—

$20.43

In stock

52

WASHER, PLUG SCREW

22F-14117-00-00

—

$6.38

In stock

53

. WASHER

1UF-14952-00-00

1
Out of stock

54

NUT

89A-14594-00-00

—

$6.80

In stock

55

SPRING, THROTTLE STOP

8X0-14133-00-00

—

$15.40

In stock

56

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

57

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

58

CLIP, PIPE

35H-14139-00-00

—
Out of stock
