1996 Yamaha Vmax 600 (VX600W) Brake 1 Diagram

← All diagrams

Find the part on the Brake 1 diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

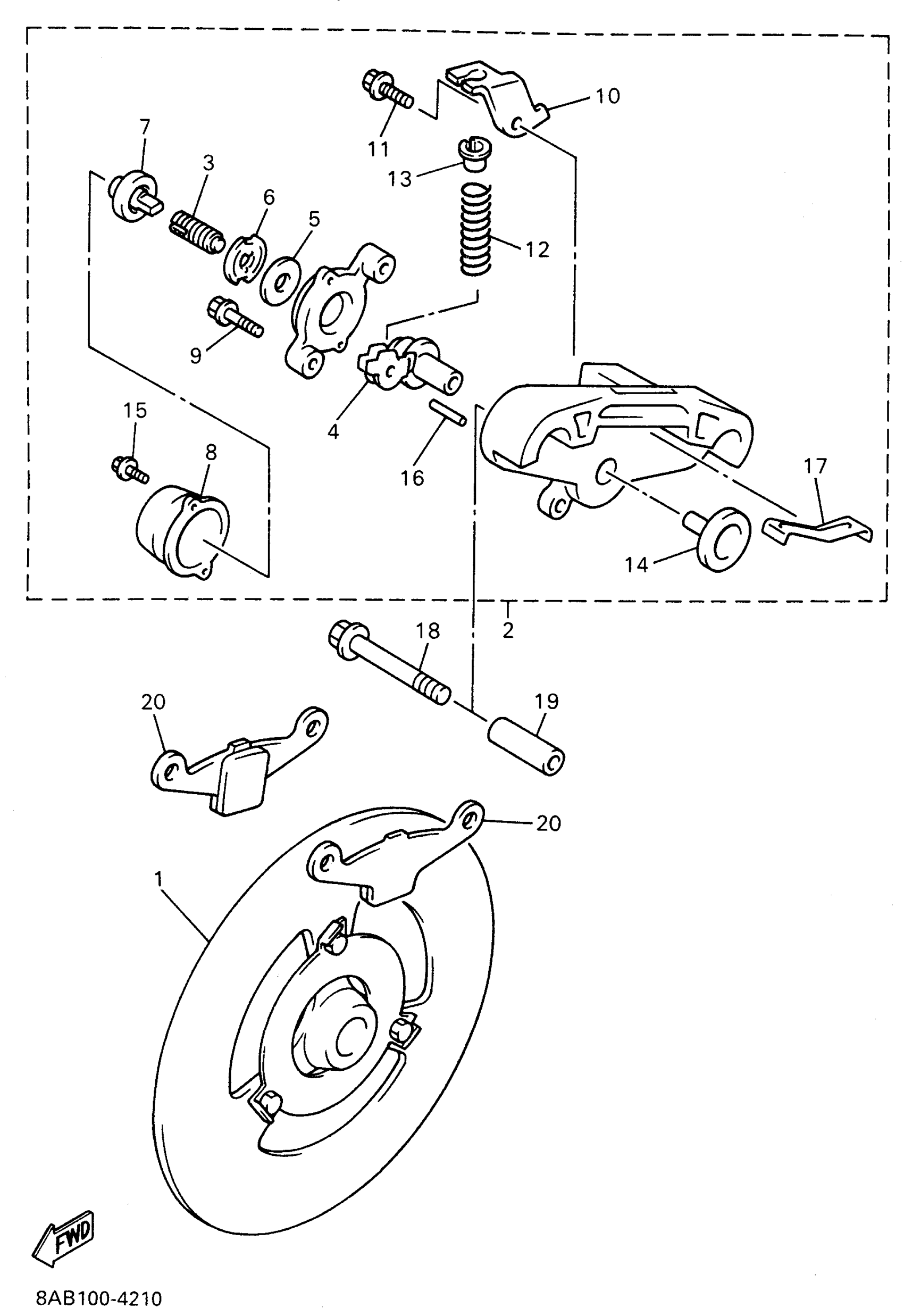

1996 Yamaha Vmax 600 (VX600W) Brake 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSEMBLY

8AB-25830-02-00

1
Out of stock

2

CALIPER BODY COMP.1

8AB-25730-00-00

1
Out of stock

3

SCREW, ADJUSTING 1

86M-25738-00-00

1

$8.91

In stock

4

. LEVER, BRAKE

86M-25726-01-00

1
Out of stock

5

SHIM, CALIPER

86M-25827-00-00

—

$2.37

In stock

6

LOCK, ONE WAY 2

86M-25773-00-00

—

$8.91

In stock

7

. RATCHET, ADJUSTING

89A-25771-00-00

1
Out of stock

8

COVER

86M-25772-00-00

—

$35.52

In stock

9

BOLT, CALIPER

86M-25818-00-00

—

$4.29

In stock

10

. BRACKET, CALIPER

8AB-25721-00-00

1
Out of stock

11

BOLT 3

86M-25826-00-00

1

$1.95

In stock

12

. SPRING, COMPRESSION

86M-25743-00-00

1
Out of stock

13

BRACKET, ADJUSTING

87R-25722-00-00

—

$45.48

In stock

14

. PLATE, BACK UP

89A-25733-00-00

1
Out of stock

15

BOLT, FITTING

86M-25833-00-00

1

$0.28

In stock

16

PIN 2

86M-25744-00-00

—

$1.27

In stock

17

. HOOK, SPRING

89A-25736-00-00

1
Out of stock

18

BOLT, WASHER BASED(4HM)

90105-10737-00

—

$9.82

In stock

19

COLLAR

90387-105Y1-00

1
Out of stock

20

PAD, LINING COMP.

89A-25811-01-00

—

$35.19

In stock
