1996 Yamaha Vmax 600 (VX600W) Alternate Windshield Diagram

← All diagrams

Find the part on the Alternate Windshield diagram for your 1996 Yamaha Vmax 600 (VX600W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

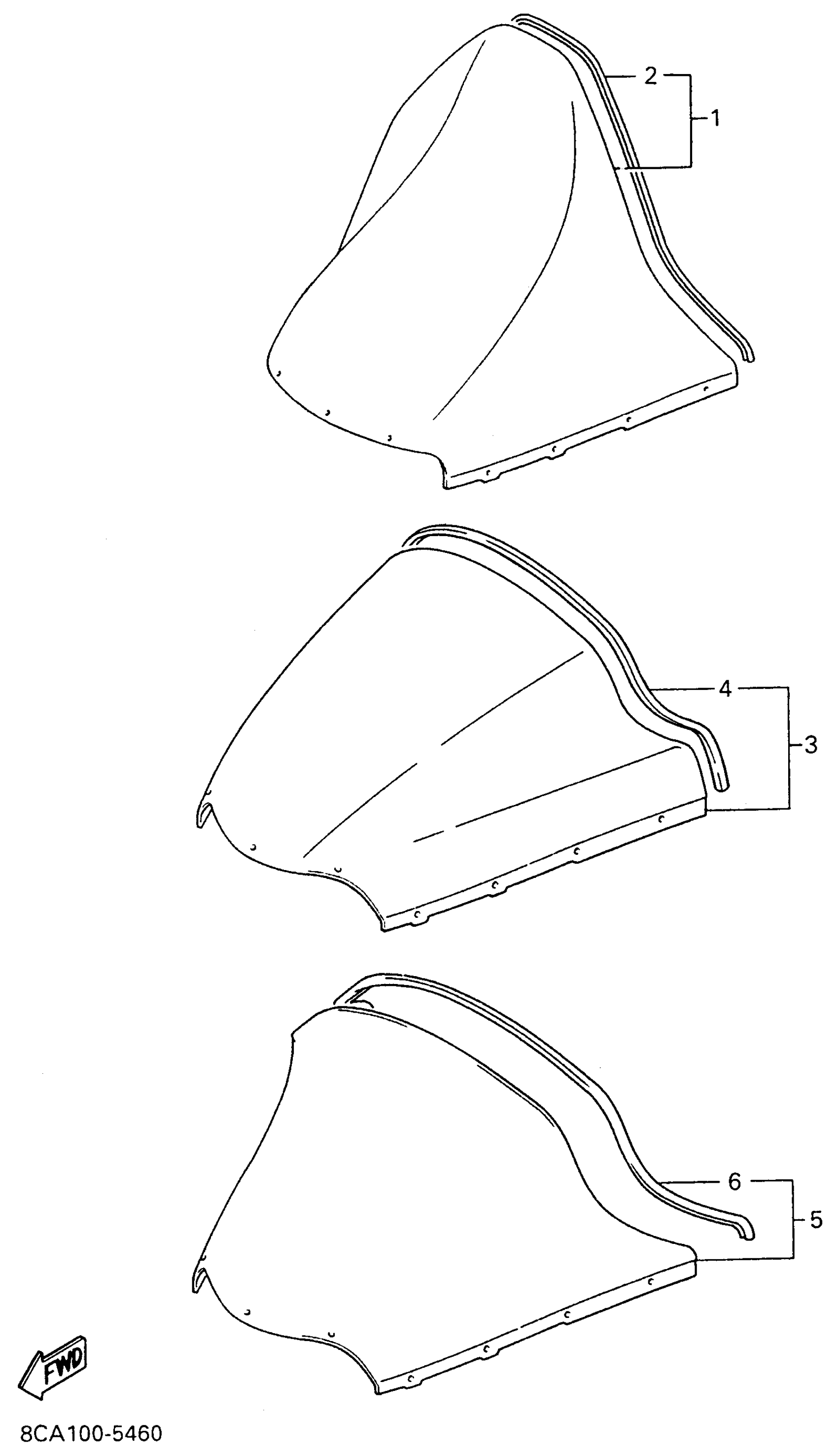

1996 Yamaha Vmax 600 (VX600W) Alternate Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD, TLVMAX

8CL-77210-00-XX

1
Out of stock

2

TRIM,UPPER

87K-77213-00-00

1
Out of stock

3

WINDSHIELD COMP.

8CM-77210-00-00

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

1
Out of stock

6

TRIM,UPPER

87K-77213-00-00

1
Out of stock
