1995 Yamaha Vmax 600 (VX600V) Bumper 1 8CA2 8CF2 Diagram

← All diagrams

Find the part on the Bumper 1 8CA2 8CF2 diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

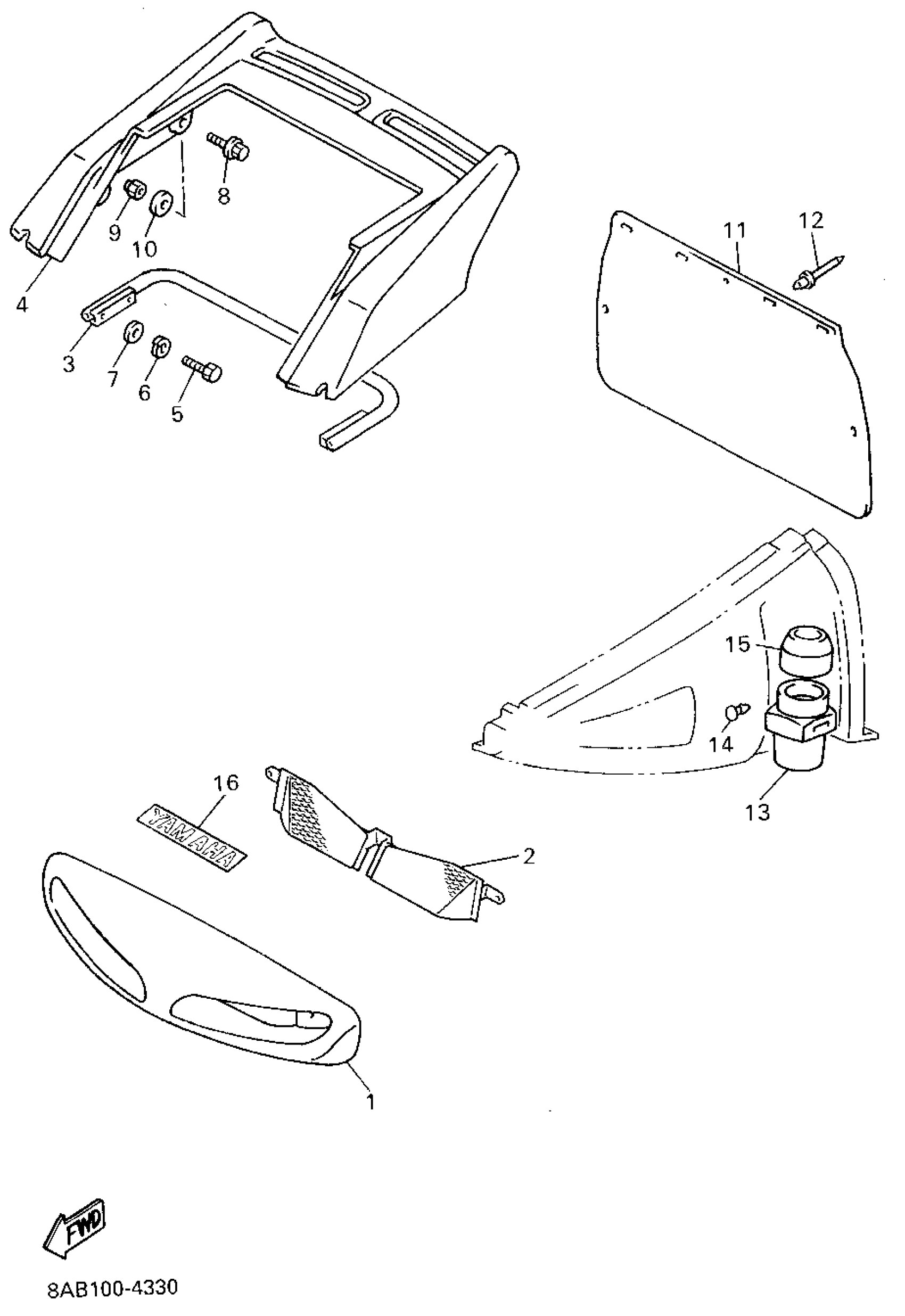

1995 Yamaha Vmax 600 (VX600V) Bumper 1 8CA2 8CF2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

89A-77511-00-00

1
Out of stock

1

BUMPER, FRONT 1

8AB-77511-00-00

1
Out of stock

2

STAY 4

8AX-77128-00-00

1
Out of stock

3

BUMPER, REAR 1

89A-77541-00-00

—
Out of stock

4

BUMPER, REAR 2

89A-77542-00-00

1
Out of stock

5

BOLT, HEXAGON

97017-08020-00

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1
Out of stock

7

WASHER(6TC)

92907-08200-00

1
Out of stock

8

BOLT, FLANGE

95817-06020-00

1
Out of stock

9

NUT, NYLON

95707-06300-00

1
Out of stock

10

WASHER, PLATE (8K2)

90201-06778-00

1
Out of stock

11

FLAP

8V9-77595-00-00

1
Out of stock

12

RIVET, BLIND (8R6)

90267-48086-00

1
Out of stock

13

PROTECTOR 1

82M-77551-00-00

1
Out of stock

14

RIVET (8M6)

90269-04025-00

1
Out of stock

15

PROTECTOR 4

82M-77554-01-00

—
Out of stock

16

EMBLEM, YAMAHA

99241-00140-00

—
Out of stock

16

EMBLEM, YAMAHA

99246-00140-00

—
Out of stock
