1994 Yamaha Vmax 600 (VX600U) Generator Diagram

← All diagrams

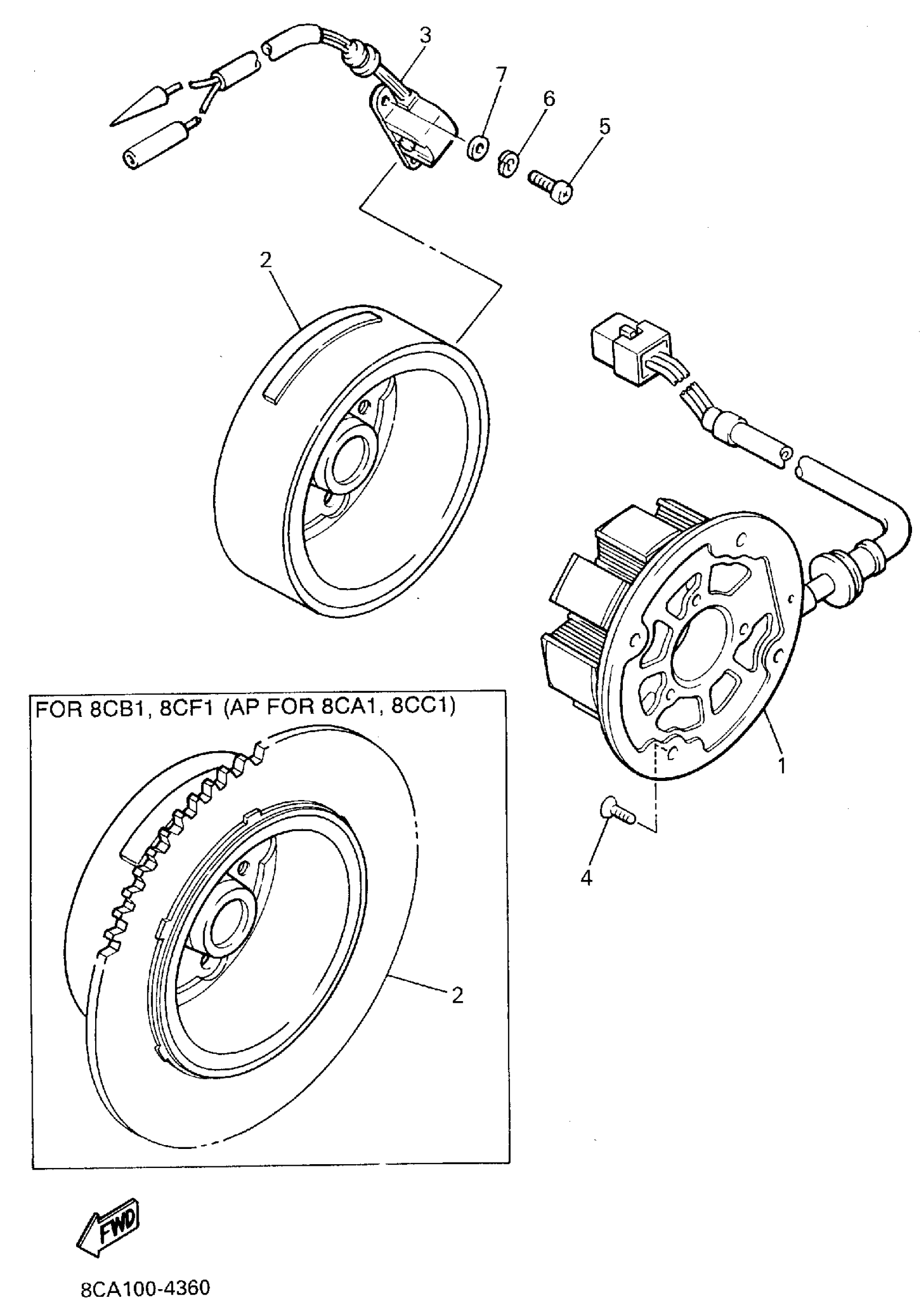

Find the part on the Generator diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax 600 (VX600U) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

8AB-85510-00-00

1
Out of stock

2

ROTOR ASY

8AB-85550-00-00

1
Out of stock

2

ROTOR ASSY

8CB-85550-00-00

1
Out of stock

3

COIL, PULSER

8AB-85580-00-00

1
Out of stock

4

SCREW, BIND (705)

98980-06016-00

1
Out of stock

5

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock
