1994 Yamaha Vmax 600 (VX600U) Brake Diagram

← All diagrams

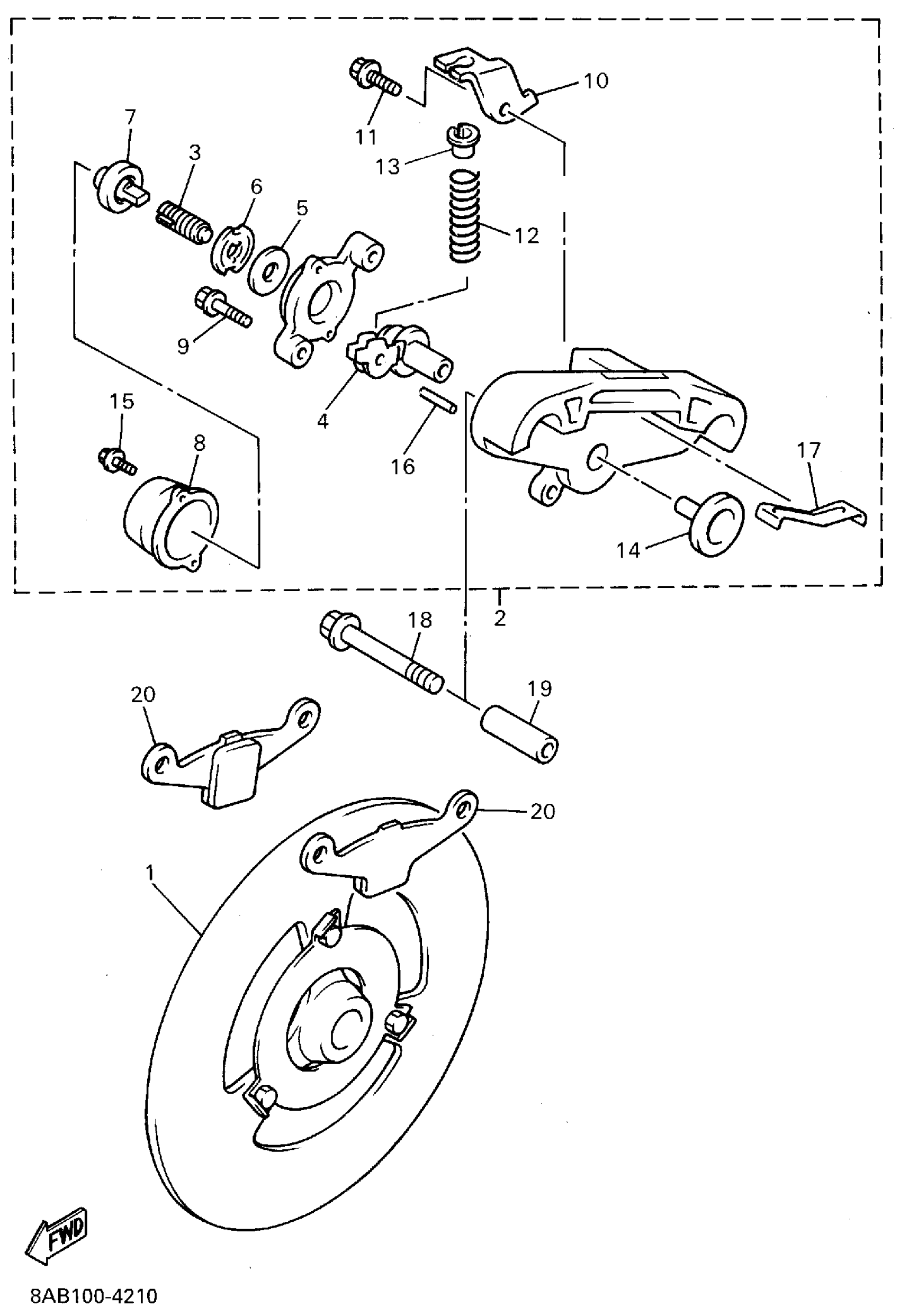

Find the part on the Brake diagram for your 1994 Yamaha Vmax 600 (VX600U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax 600 (VX600U) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSEMBLY

8AB-25830-02-00

1
Out of stock

2

CALIPER BODY COMP.1

8AB-25730-00-00

1
Out of stock

3

SCREW, ADJUSTING 1

86M-25738-00-00

1

$8.91

In stock

4

. LEVER, BRAKE

86M-25726-01-00

1
Out of stock

5

SHIM, CALIPER

86M-25827-00-00

—

$2.37

In stock

6

LOCK, ONE WAY 2

86M-25773-00-00

—

$8.91

In stock

7

. RATCHET, ADJUSTING

89A-25771-00-00

1
Out of stock

8

COVER

86M-25772-00-00

—

$35.52

In stock

9

BOLT, CALIPER

86M-25818-00-00

—

$4.29

In stock

10

. BRACKET, CALIPER

8AB-25721-00-00

1
Out of stock

11

BOLT 3

86M-25826-00-00

1

$1.95

In stock

12

. SPRING, COMPRESSION

86M-25743-00-00

1
Out of stock

13

BRACKET, ADJUSTING

87R-25722-00-00

—

$45.48

In stock

14

. PLATE, BACK UP

89A-25733-00-00

1
Out of stock

15

BOLT, FITTING

86M-25833-00-00

1

$0.28

In stock

16

PIN 2

86M-25744-00-00

—

$1.27

In stock

17

. HOOK, SPRING

89A-25736-00-00

1
Out of stock

18

BOLT, WASHER BASED(4HM)

90105-10737-00

—

$9.82

In stock

19

COLLAR

90387-105Y1-00

1
Out of stock

20

PAD, LINING COMP.

89A-25811-01-00

—

$35.19

In stock
