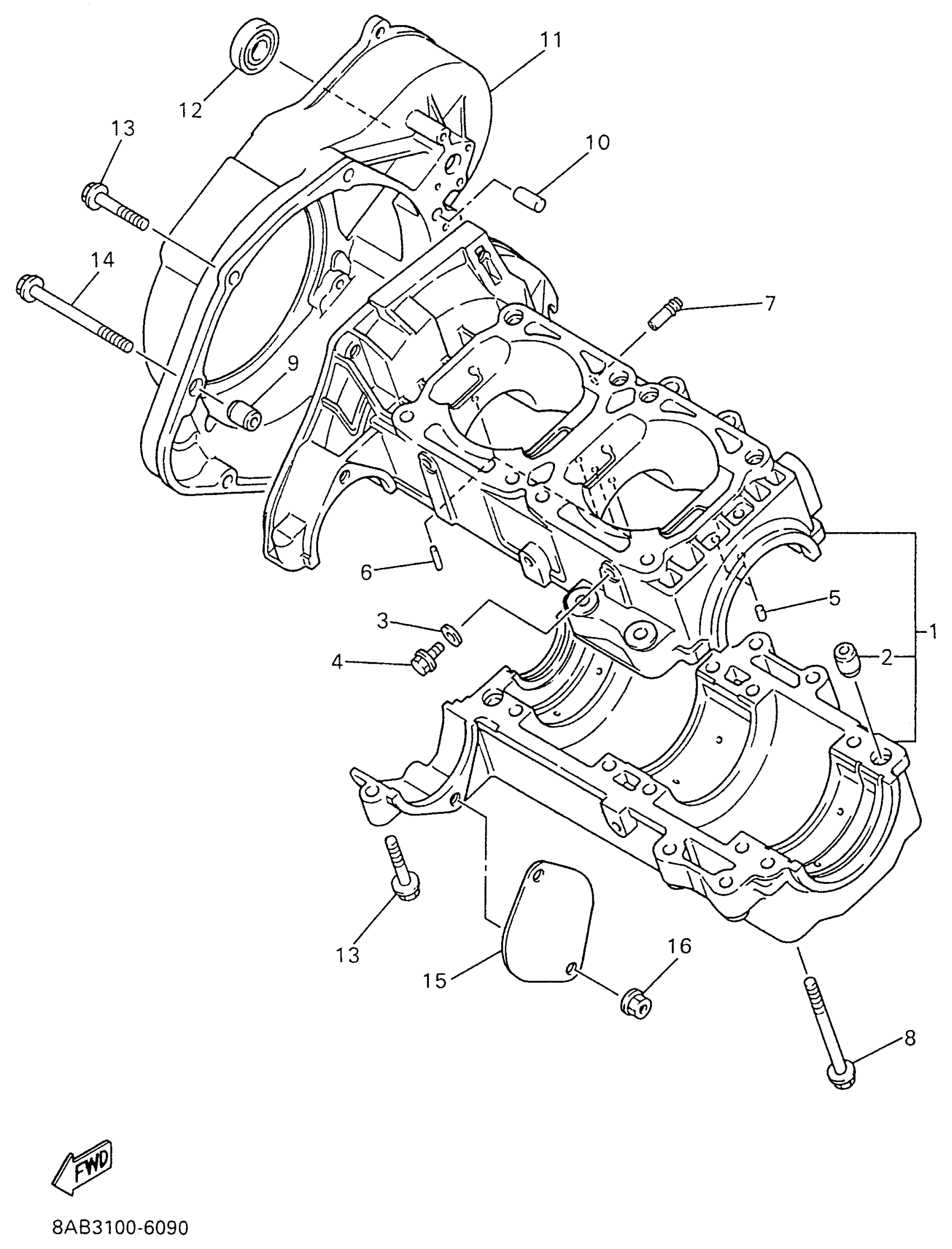

Find the part on the Crankcase diagram for your 1996 Yamaha Vmax 600 Mountain Max (VX600STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 Mountain Max (VX600STW) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8AB-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1
Out of stock

3

WASHER, PLATE 3411117500

90201-08087-00

1
Out of stock

4

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

5

PIN, DOWEL (8H1)

93604-07141-00

1
Out of stock

6

PIN (2H7)

93603-10049-00

—
Out of stock

7

JOINT, BREATHER

J38-11116-00-00

1
Out of stock

8

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

9

PIN, DOWEL

99530-12016-00

1
Out of stock

10

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

11

COVER, CRANKCASE 2

8AB-15421-01-00

1
Out of stock

12

BEARING(82M)

93306-20117-00

1
Out of stock

13

BOLT, FLANGE

95817-08040-00

1
Out of stock

14

BOLT, FLANGE(JF2)

95817-08080-00

1
Out of stock

15

PLATE

8K4-12633-00-00

1
Out of stock

16

NUT, FLANGE(JN5)

95707-08500-00

—
Out of stock
