1996 Yamaha Vmax 600 Le (Elec Start (VX600EW) Frame Diagram

← All diagrams

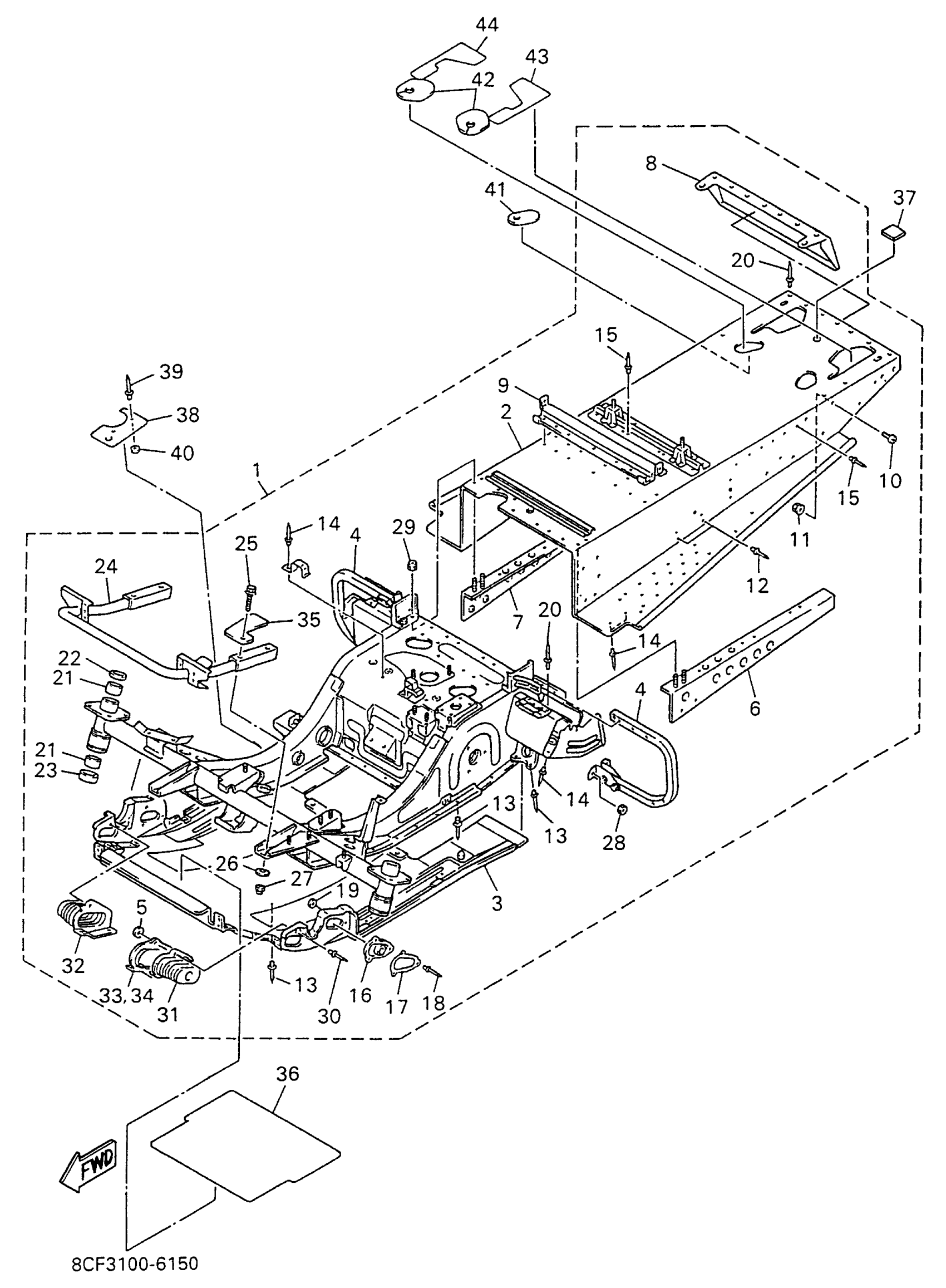

Find the part on the Frame diagram for your 1996 Yamaha Vmax 600 Le (Elec Start (VX600EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 600 Le (Elec Start (VX600EW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BP-21910-00-00

1
Out of stock

2

. PANEL, FRAME

8CL-21911-10-00

1
Out of stock

3

. PANEL, SUB FRAME 1

8AB-21912-00-00

1
Out of stock

4

. REINFORCEMENT, FOOTREST 1

8AB-21926-00-00

1
Out of stock

5

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

6

. PATCH 4

8AB-21964-00-00

1
Out of stock

7

. PATCH 5

8AB-21965-00-00

1
Out of stock

8

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

9

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

10

SCREW,BINDING

98907-08014-00

1
Out of stock

11

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

12

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

13

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

14

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

15

RIVET(89R)

90269-04044-00

—
Out of stock

16

COVER 1

8M6-2198F-00-00

—

$22.69

In stock

17

SPACER

8M6-21998-00-00

—

$3.05

In stock

18

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

19

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

20

RIVET, BLIND(3JB)

90267-48095-00

—

$2.00

In stock

21

—

$9.68

In stock

22

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

23

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

24

. BUMPER, FRONT 2

8AB-77512-00-00

1
Out of stock

25

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

26

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

27

NUT, NYLON

95717-08300-00

—

$2.57

In stock

28

NUT, NYLON

95707-06300-00

—

$3.20

In stock

29

NUT, NYLON

95717-08300-00

—

$2.57

In stock

30

RIVET, BLIND

90267-47197-00

—

$1.91

In stock

31

. COVER 1

8AB-2198F-00-00

1
Out of stock

32

. COVER 2

8AB-2198G-00-00

1
Out of stock

33

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

34

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

35

. COVER 3

8AB-2198J-00-00

1
Out of stock

36

SHIELD, HEAT

8AB-2199H-00-00

1
Out of stock

37

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

38

SHIELD, NOISE

8AB-2199F-00-00

1
Out of stock

39

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

40

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

41

PATCH 5

82M-21965-00-00

1
Out of stock

42

PATCH 5

88R-21965-00-00

1
Out of stock

43

COVER 6

8AB-1246J-00-00

1
Out of stock

44

COVER 7

8AB-1246K-00-00

1
Out of stock
