1996 Yamaha Vmax 600 DX (VX600DXW) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1996 Yamaha Vmax 600 DX (VX600DXW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

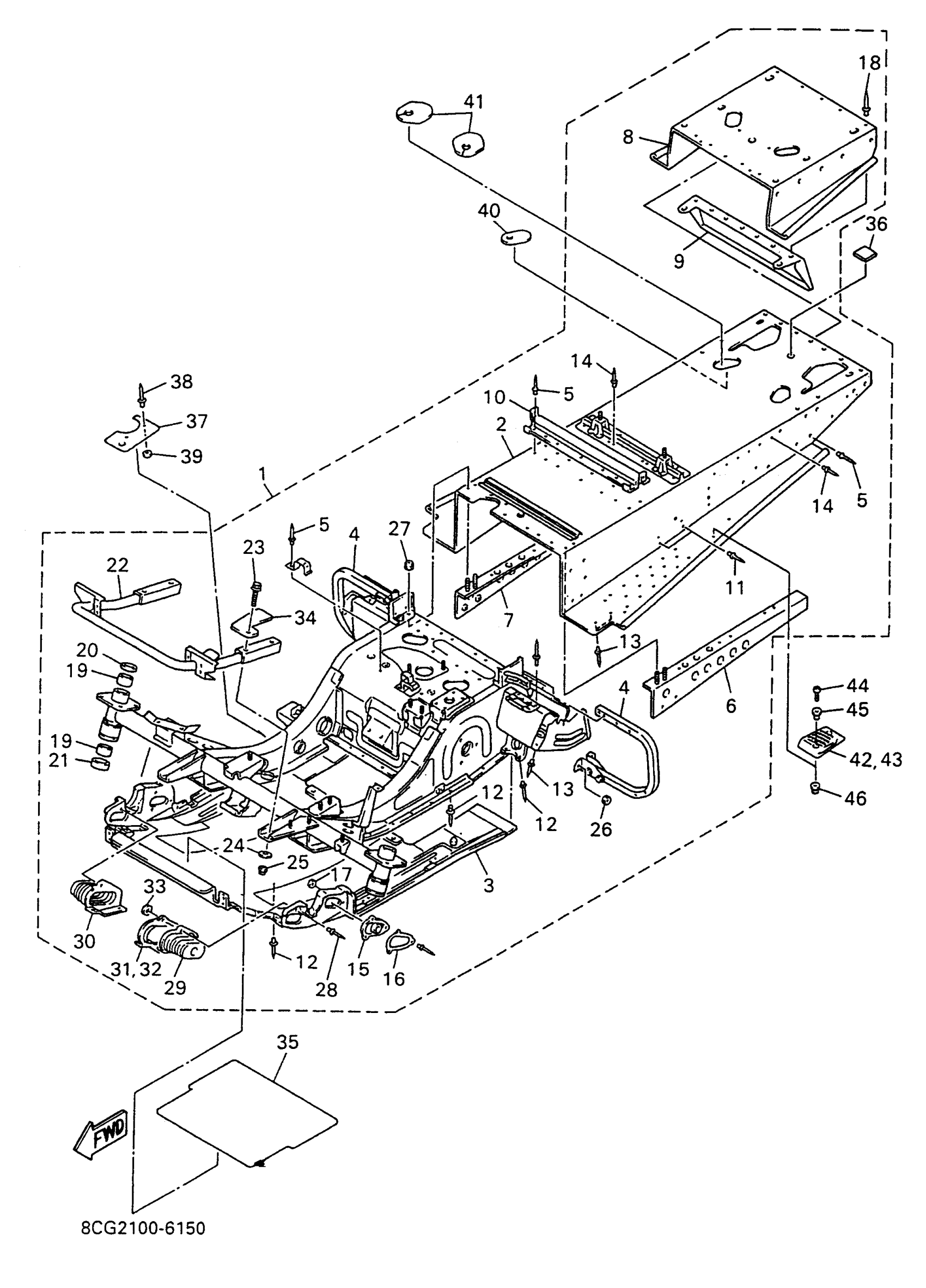

1996 Yamaha Vmax 600 DX (VX600DXW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8CL-21910-10-00

1

$1,742.99

In stock

2

. PANEL, FRAME

8CL-21911-10-00

1
Out of stock

3

. PANEL, SUB FRAME 1

8AB-21912-00-00

1
Out of stock

4

. REINFORCEMENT, FOOTREST 1

8AB-21926-00-00

1
Out of stock

5

RIVET, BLIND(8CR)

90267-47186-00

1

$2.31

In stock

6

. PATCH 4

8AB-21964-00-00

1
Out of stock

7

. PATCH 5

8AB-21965-00-00

1
Out of stock

8

PANEL, SUB-FRAME 5

8CL-21916-00-00

—

$486.99

In stock

9

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

10

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

13

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

14

RIVET(89R)

90269-04044-00

—
Out of stock

15

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

16

SPACER

8M6-21998-00-00

—

$3.05

In stock

17

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

18

RIVET, BLIND(3JB)

90267-48095-00

—

$2.00

In stock

19

—

$9.68

In stock

20

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

21

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

22

. BUMPER, FRONT 2

8AB-77512-00-00

1
Out of stock

23

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

24

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

25

NUT, NYLON

95717-08300-00

—

$2.57

In stock

26

NUT, NYLON

95707-06300-00

—

$3.20

In stock

27

NUT, NYLON

95717-08300-00

—

$2.57

In stock

28

RIVET, BLIND

90267-47197-00

—

$1.91

In stock

29

. COVER 1

8AB-2198F-00-00

1
Out of stock

30

. COVER 2

8AB-2198G-00-00

1
Out of stock

31

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

32

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

33

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

34

. COVER 3

8AB-2198J-00-00

1
Out of stock

35

SHIELD, HEAT

8AB-2199H-00-00

1
Out of stock

36

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

37

SHIELD, NOISE

8AB-2199F-00-00

1
Out of stock

38

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

39

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

40

PATCH 5

82M-21965-00-00

1
Out of stock

41

PATCH 5

88R-21965-00-00

1
Out of stock

42

FOOTREST, REAR 1

88T-27431-10-00

—

$23.57

In stock

43

FOOTREST, REAR 2

88T-27441-10-00

—

$23.57

In stock

44

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

45

COLLAR

90387-06158-00

—

$6.17

In stock

46

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock
