1996 Yamaha Vmax 600 DX (VX600DXW) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1996 Yamaha Vmax 600 DX (VX600DXW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

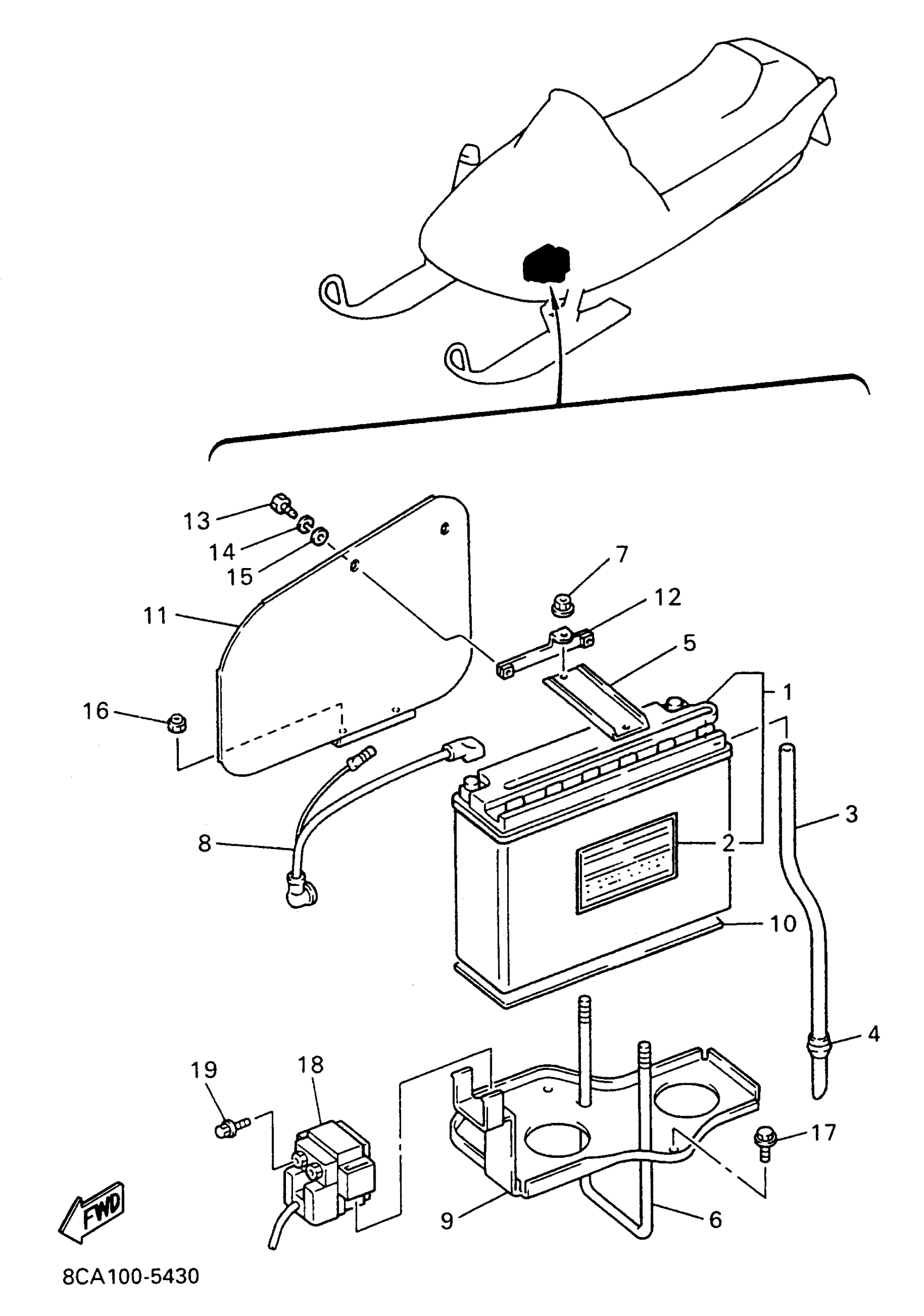

1996 Yamaha Vmax 600 DX (VX600DXW) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

1
Out of stock

2

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

3

HOSE

90445-086H3-00

1
Out of stock

4

GROMMET(3AA)

90480-12497-00

1
Out of stock

5

. PLATE, BATTERY FITTING

84N-82136-00-00

1
Out of stock

6

. SCREW, FITTING

84N-82133-00-00

1
Out of stock

7

NUT, NYLON

95707-06300-00

1
Out of stock

8

WIRE PLUS LEAD

84N-82115-00-00

1
Out of stock

9

BRACKET, BATTERY

8CL-2199G-00-00

1
Out of stock

10

SEAT, BATTERY

84N-82122-00-00

1
Out of stock

11

SHIELD, HEAT

84N-2199H-01-00

1
Out of stock

12

. BRACKET, BATTERY

8V0-82128-00-00

1
Out of stock

13

BOLT

97027-05010-00

—
Out of stock

14

WASHER(3SX)

92907-05100-00

1
Out of stock

15

WASHER(1RW)

92907-05600-00

1
Out of stock

16

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

17

BOLT, FLANGE

95817-06010-00

—
Out of stock

18

STARTER RELAY ASSY (RC19-004)

4FU-81940-02-00

—
Out of stock

19

BOLT, SMALL FLANGE

95027-06008-00

—
Out of stock
