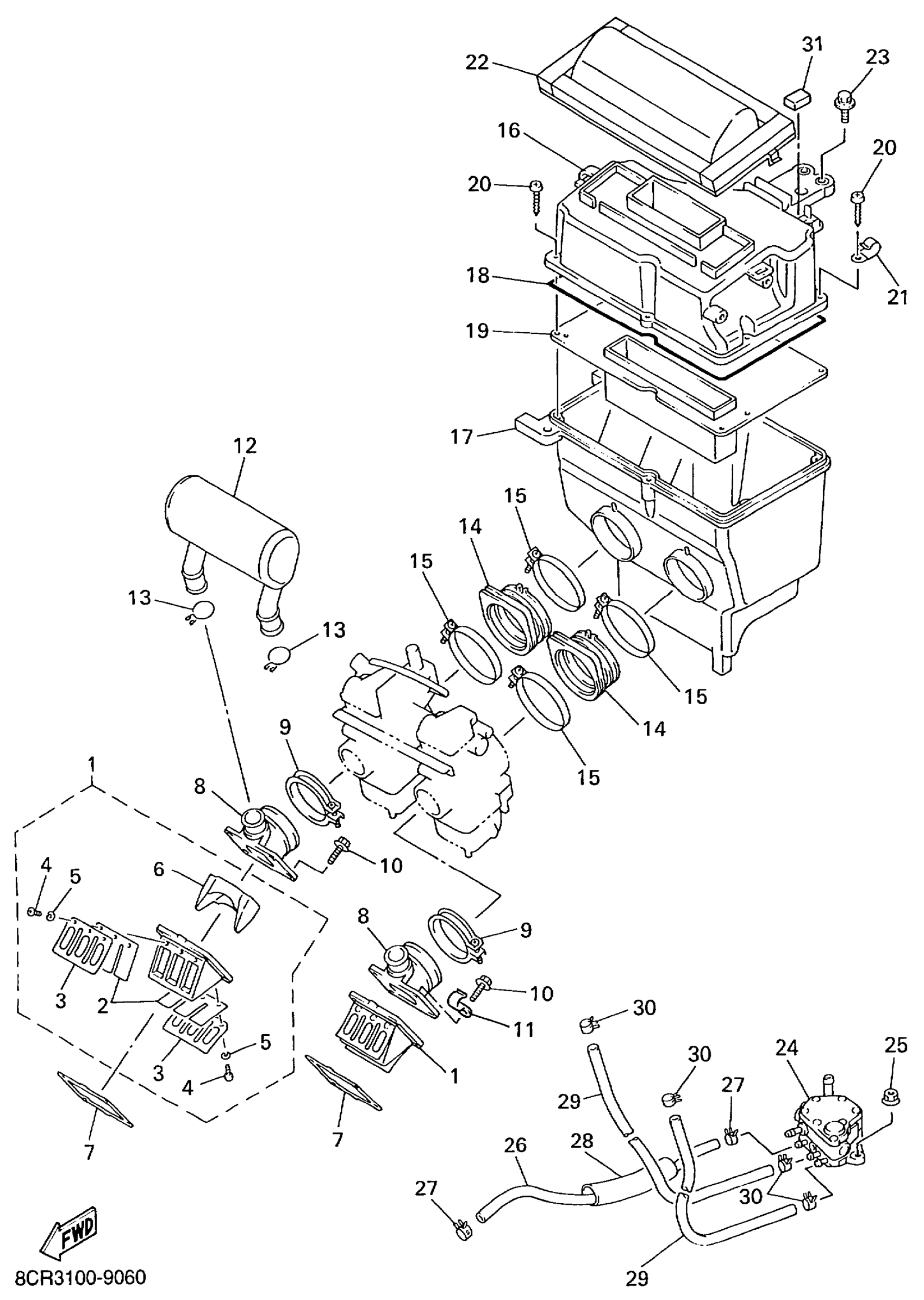

Yamaha VX600C (VMAX 600) 8CR3 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

4DA-13610-01-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$26.43

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.54

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

80L-13621-01-00

$9.80

8

MANIFOLD, INTAKE

8CR-13555-00-00

Unavailable

9

BAND

86M-13575-00-00

$16.45

10

BOLT, FLANGE

95817-06020-00

$2.69

11

CLAMP (4G0)

90462-08078-00

$5.17

12

CHAMBER, AIR

8CR-13581-00-00

$29.94

13

CLIP(8V0)

90467-24096-00

$6.38

14

JOINT, AIR CLEANER 1

8CR-14453-00-00

Unavailable

15

CLAMP, HOSE (29L)

90460-68230-00

$12.54

16

SILENCER, INTAKE 1

8CR-14431-01-00

Unavailable

17

SILENCER, INTAKE 2

8CR-14441-01-00

Unavailable

18

SEAL

51Y-14462-00-00

$11.61

19

PLATE

8CR-14477-00-00

Unavailable

20

SCREW, TAPPING(82M)

90167-05043-00

$5.62

21

CLAMP

90465-08028-00

$4.62

22

ELEMENT ASSY, AIR CLEANER

8CR-14450-00-00

$29.29

23

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.80

24

FUEL PUMP ASSY

8CR-24410-01-00

$190.38

25

NUT, FLANGE(4MV)

95707-06500-00

$0.78

26

HOSE (L400)

90445-116K9-00

$19.08

27

CLIP (7K7)

90467-11044-00

$5.10

28

HOSE (L150)

90445-226J7-00

Unavailable

29

HOSE (L420)

90445-092K1-00

$10.63

30

CLIP (8A1)

90467-09026-00

$2.72

31

SPACER 2

8CR-24175-00-00

Unavailable
