1996 Yamaha Vmax 500 XT Proaction Plus (VX500XTW) Primary Sheave Diagram

← All diagrams

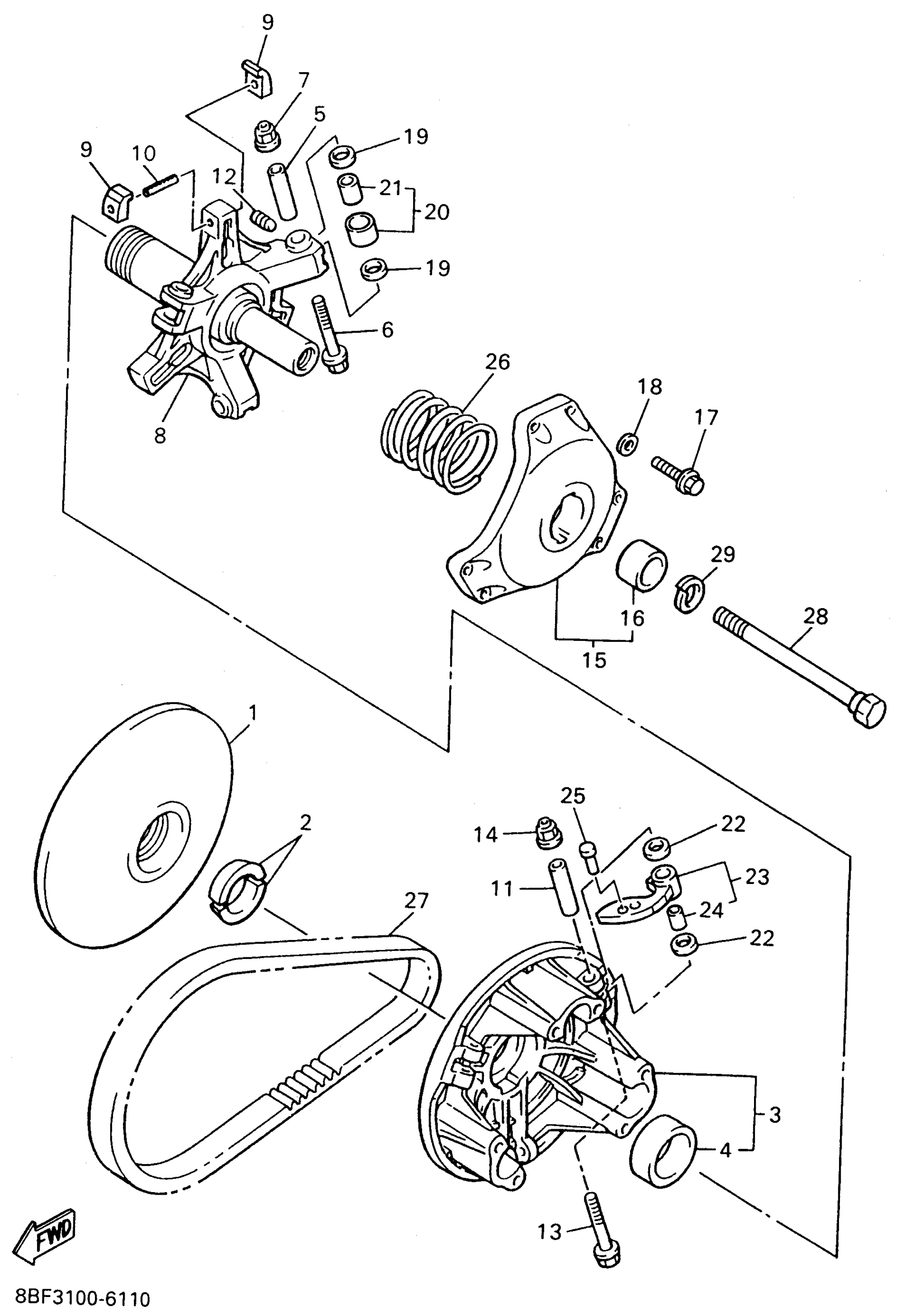

Find the part on the Primary Sheave diagram for your 1996 Yamaha Vmax 500 XT Proaction Plus (VX500XTW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax 500 XT Proaction Plus (VX500XTW) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8BV-17611-19-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1
Out of stock

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

1
Out of stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

7

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

8

SPIDER COMPLETE

8BW-17640-11-00

—
Out of stock

9

SLIDER

8BW-17653-00-00

1
Out of stock

10

PIN, SPRING (7F7)

91609-50032-00

1
Out of stock

11

COLLAR

90387-0514T-00

1
Out of stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

14

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

15

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

—
Out of stock

16

. BUSH, BIMETAL FORMED

90384-28244-00

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—
Out of stock

18

WASHER(6TA)

92907-06600-00

—
Out of stock

19

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

20

ROLLER, COMP

8BH-17624-10-00

—
Out of stock

20

ROLLER, COMP

8BH-17624-00-00

1
Out of stock

21

. BUSH, SOLID

90380-08244-00

1
Out of stock

22

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

23

WEIGHT COMP

8AB-17605-10-00

—
Out of stock

24

. BUSH, SOLID

90380-08244-00

1
Out of stock

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

—
Out of stock

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

—
Out of stock

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

25

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

—
Out of stock

26

SPRING, COMPRESSION(89L)

90501-521J6-00

—
Out of stock

26

PRIMARY SPRING

90501-525J8-00

—
Out of stock

26

SPRING, COMPRESSION(8BH)

90501-526J9-00

—
Out of stock

26

SPRING, COMPRESSION(8AV)

90501-550J8-00

—
Out of stock

26

SPRING, COMPRESSION(8AB)

90501-555J9-00

—
Out of stock

26

SPRING, COMPRESSION(8AY)

90501-582J1-00

—
Out of stock

26

SPRING, COMPRESSION(8CG)

90501-585J3-00

—
Out of stock

26

SPRING, COMPRESSION(8AY)

90501-602J0-00

—
Out of stock

26

SPRING, COMPRESSION(8CG)

90501-605J5-00

—
Out of stock

27

V-BELT

89L-17641-02-00

1
Out of stock

28

BOLT (L=156.5MM)

8V0-17647-10-00

—
Out of stock

29

WASHER(JN5)

92907-16100-00

—
Out of stock
