1996 Yamaha Vmax 500 (VX500W) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1996 Yamaha Vmax 500 (VX500W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

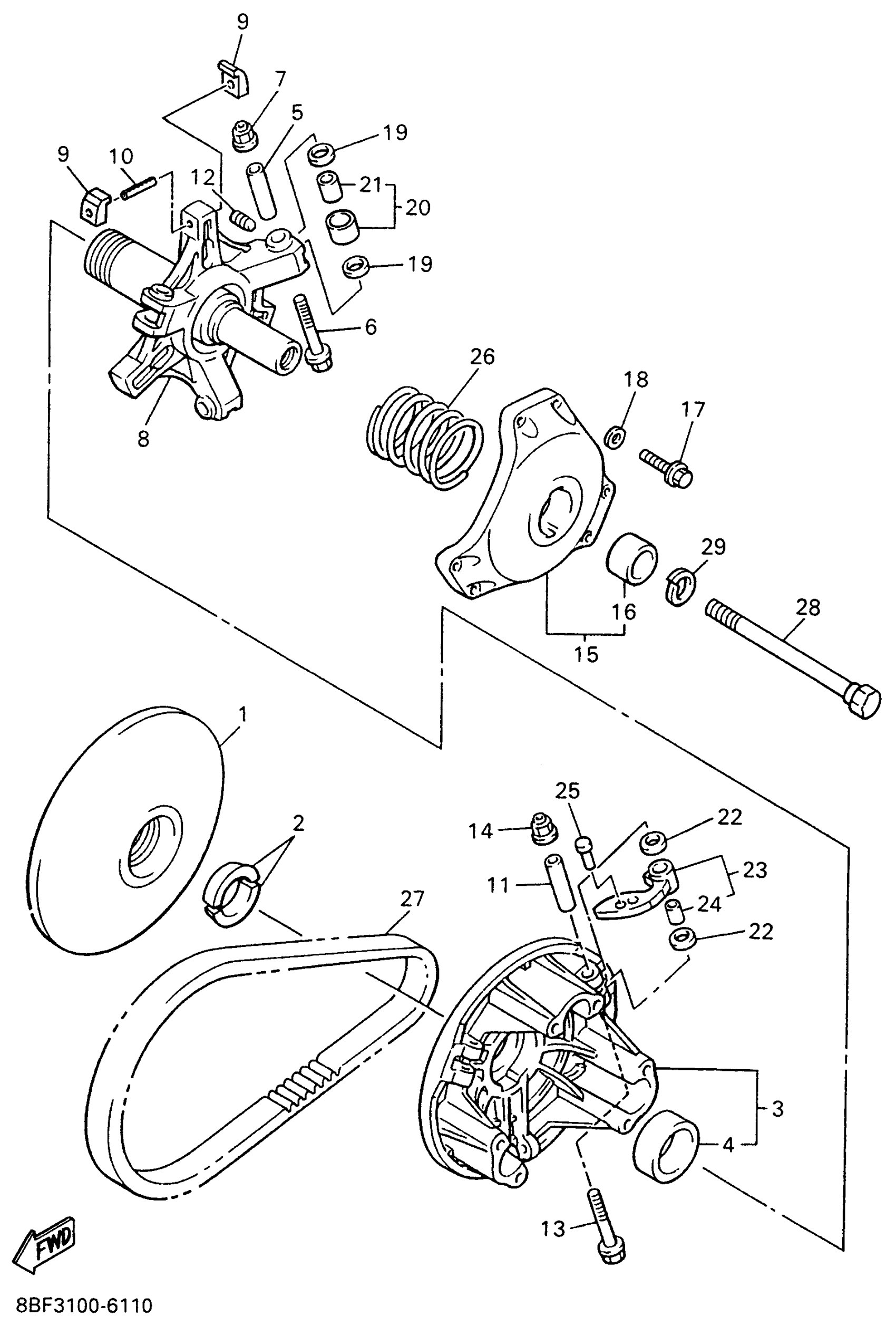

1996 Yamaha Vmax 500 (VX500W) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8BV-17611-19-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1

$10.52

In stock

3

1

$430.68

In stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

5

COLLAR

90387-0514T-00

1

$14.86

In stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

7

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

8

SPIDER COMPLETE

8BW-17640-11-00

—

$293.52

In stock

9

SLIDER

8BW-17653-00-00

1

$13.86

In stock

10

PIN, SPRING (7F7)

91609-50032-00

1

$3.66

In stock

11

COLLAR

90387-0514T-00

1

$14.86

In stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

14

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

15

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

—

$90.97

In stock

16

. BUSH, BIMETAL FORMED

90384-28244-00

1
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

19

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

20

ROLLER, COMP

8BH-17624-10-00

—

$57.62

In stock

20

ROLLER, COMP

8BH-17624-00-00

1
Out of stock

21

. BUSH, SOLID

90380-08244-00

1
Out of stock

22

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

23

WEIGHT COMP

8AB-17605-10-00

—

$123.98

In stock

24

. BUSH, SOLID

90380-08244-00

1
Out of stock

25

—

$7.55

In stock

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

25

—

$6.82

In stock

25

—

$2.72

In stock

25

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

25

—

$5.62

In stock

26

SPRING, COMPRESSION(89L)

90501-521J6-00

—

$37.82

In stock

26

PRIMARY SPRING

90501-525J8-00

—

$37.45

In stock

26

SPRING, COMPRESSION(8BH)

90501-526J9-00

—

$27.91

In stock

26

SPRING, COMPRESSION(8AV)

90501-550J8-00

—

$45.37

In stock

26

SPRING, COMPRESSION(8AB)

90501-555J9-00

—

$51.03

In stock

26

SPRING, COMPRESSION(8AY)

90501-582J1-00

—

$58.54

In stock

26

SPRING, COMPRESSION(8CG)

90501-585J3-00

—

$28.94

In stock

26

SPRING, COMPRESSION(8AY)

90501-602J0-00

—

$38.97

In stock

26

SPRING, COMPRESSION(8CG)

90501-605J5-00

—

$35.58

In stock

27

V-BELT

89L-17641-02-00

1
Out of stock

28

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
