1995 Yamaha Vmax 500 (VX500V) Alternate Windshields Diagram

← All diagrams

Find the part on the Alternate Windshields diagram for your 1995 Yamaha Vmax 500 (VX500V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

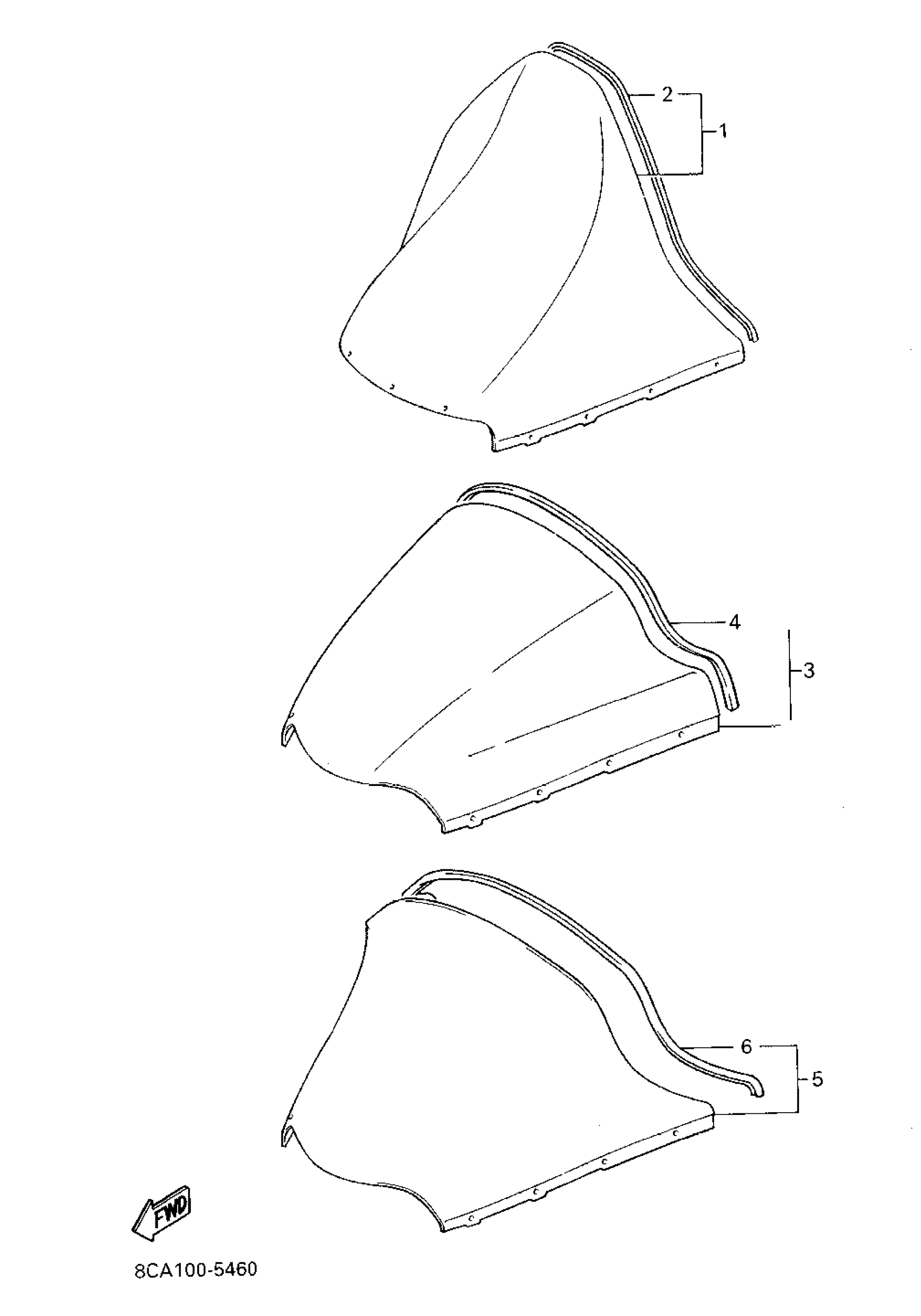

1995 Yamaha Vmax 500 (VX500V) Alternate Windshields Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD, TLVMAX

8CL-77210-00-XX

1
Out of stock

2

TRIM,UPPER

87K-77213-00-00

1
Out of stock

3

WINDSHIELD COMP.

8CM-77210-00-00

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

1
Out of stock

6

TRIM,UPPER

87K-77213-00-00

1
Out of stock
