1994 Yamaha Vmax 500 (VX500U) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1994 Yamaha Vmax 500 (VX500U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

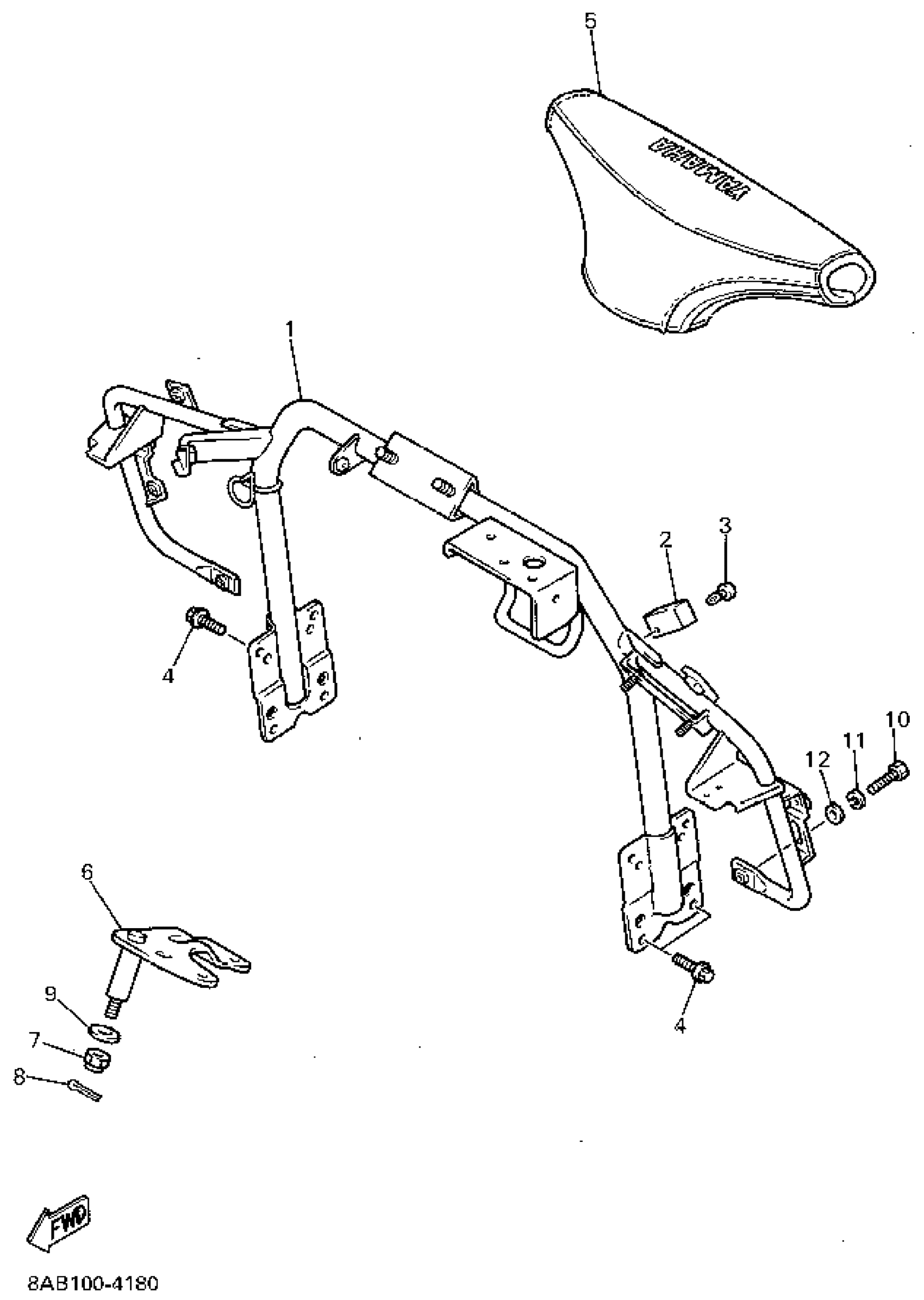

1994 Yamaha Vmax 500 (VX500U) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

8AB-23870-10-00

1
Out of stock

2

PAD 1

8AB-77151-00-00

1
Out of stock

3

RIVET

90269-06072-00

1
Out of stock

4

BOLT, WASHER BASED

90105-08590-00

1
Out of stock

5

PAD, STEERING

8CR-23815-01-00

—

$149.63

In stock

6

ARM, IDLER

8AB-23826-00-00

1
Out of stock

7

NUT, NYLON

95717-12300-00

1

$5.85

In stock

8

PIN, COTTER

91490-30030-00

1

$7.15

In stock

9

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

10

BOLT, HEXAGON

97017-08030-00

1

$6.85

In stock

11

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
