1994 Yamaha Vmax 500 (VX500U) Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1994 Yamaha Vmax 500 (VX500U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

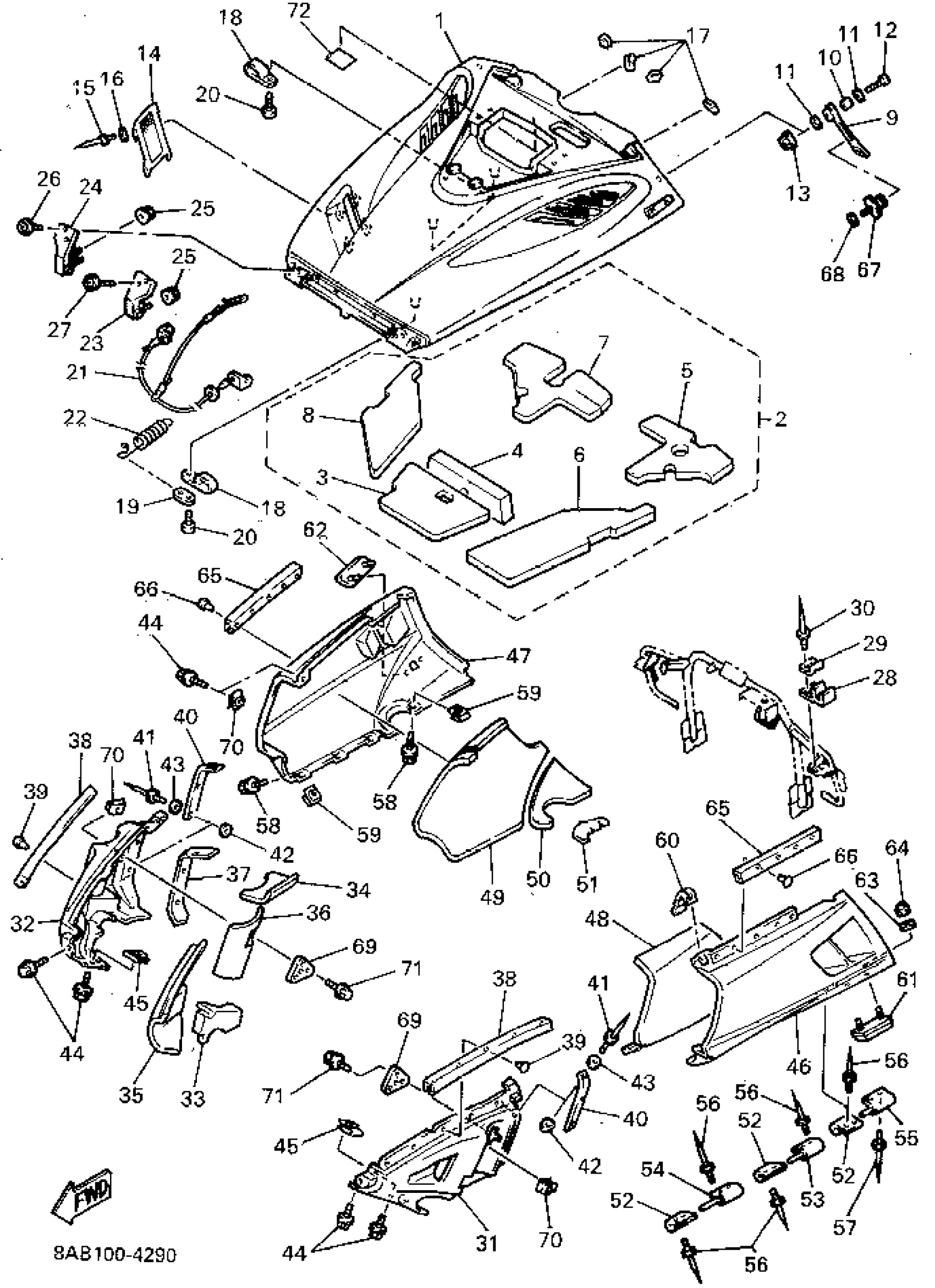

1994 Yamaha Vmax 500 (VX500U) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8AB-77111-00-00

1
Out of stock

1

SHROUD

8AB-77111-10-00

1
Out of stock

1

SHROUD

8BB-77111-00-00

1
Out of stock

2

LINING SET

8AB-W7726-00-00

—
Out of stock

3

. LINING, SHROUD 1

8AB-77261-00-00

1
Out of stock

4

. LINING, SHROUD 3

8AB-77263-00-00

1
Out of stock

5

. LINING, SHROUD 4

8AB-77264-00-00

1
Out of stock

6

. LINING, SHROUD 5

8AB-77265-00-00

1
Out of stock

7

. LINING, SHROUD 6

8AB-77266-00-00

1
Out of stock

8

. LINING, SHROUD 7

8AB-77267-00-00

1
Out of stock

9

BODY, LATCH 1

8V0-77171-00-00

1
Out of stock

10

COLLAR (420)

90387-06241-00

1
Out of stock

11

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

12

SCREW, BINDING

98907-06030-00

1
Out of stock

13

NUT, FLANGE(7NB)

95780-06500-00

1
Out of stock

14

PROTECTOR 7

8AB-77557-00-00

1
Out of stock

15

RIVET, BLIND (8M6)

90267-48051-00

—
Out of stock

16

WASHER, PLAIN (3GDF)

90201-051K1-00

—
Out of stock

17

TRIM 6

89A-77226-00-00

1
Out of stock

18

CLAMP(83R)

90461-08113-00

—
Out of stock

19

WASHER, SPECIAL

8AB-77116-00-00

1
Out of stock

20

SCREW, TAPPING(4MV)

97707-50016-00

—
Out of stock

21

STOPPER, SHROUD

8AB-77118-00-00

1
Out of stock

22

CLAMP, ROD

89A-77159-00-00

—
Out of stock

23

HINGE ASSY

89A-77140-00-00

—
Out of stock

24

HINGE ASSY 2

89A-7714A-00-00

—
Out of stock

25

NUT, FLANGE(7NB)

95780-06500-00

1
Out of stock

26

SCREW, W/WASHER (4L0)

90159-06060-00

—
Out of stock

27

SCREW, WITH WASHER

90159-06108-00

1
Out of stock

28

STOPPER

8V0-77188-00-00

1
Out of stock

29

WASHER, SPECIAL

8V0-77116-01-00

—
Out of stock

30

RIVET, BLIND (J10)

90267-40077-00

—
Out of stock

31

HOOD 1

8AB-21982-00-00

1
Out of stock

31

HOOD 1

8AB-21982-10-00

1
Out of stock

32

HOOD 2

8AB-21983-00-00

1
Out of stock

32

HOOD 2

8AB-21983-10-00

1
Out of stock

33

DAMPER, NOISE 12

8AB-77272-00-00

1
Out of stock

34

DAMPER, NOISE 13

8AB-77273-00-00

1
Out of stock

35

DAMPER, NOISE 11

8AB-77271-00-00

1
Out of stock

36

DAMPER, NOISE 14

8AB-77274-00-00

1
Out of stock

37

DAMPER, NOISE 18

8AB-77278-00-00

1
Out of stock

38

BUSH, RUBBER 1

8AB-77515-00-00

1
Out of stock

39

RIVET(81E)

90269-05055-00

—
Out of stock

40

TRIM 1

82M-2196T-00-00

1
Out of stock

41

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

42

WASHER, PLATE(26H)

90201-044H9-00

—
Out of stock

43

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

44

BOLT, WITH WASHER

90119-06226-00

—
Out of stock

45

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

46

HOOD 3

8AB-2197H-00-00

1
Out of stock

46

HOOD 3

8AB-2197H-10-00

1
Out of stock

47

HOOD 4

8AB-2198H-00-00

1
Out of stock

47

HOOD 4

8AB-2198H-10-00

1
Out of stock

48

LINING, SHROUD 2

8AB-77262-00-00

1
Out of stock

49

DAMPER, NOISE 15

8AB-77275-00-00

1
Out of stock

50

DAMPER, NOISE 16

8AB-77276-00-00

1
Out of stock

51

DAMPER, NOISE 17

8AB-77277-00-00

1
Out of stock

52

BRACKET, 1

88F-2194X-00-00

1
Out of stock

53

BRACKET 2

88R-2195X-00-00

1
Out of stock

54

BRACKET 2

88R-2195X-00-00

1
Out of stock

55

BRACKET 3

88F-2196F-00-00

—
Out of stock

56

RIVET, BLIND (8L0)

90267-48059-00

—
Out of stock

57

RIVET, BLIND (8J5)

90267-48057-00

—
Out of stock

58

BOLT, WITH WASHER

90119-06226-00

—
Out of stock

59

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

60

STOPPER

8AB-77188-00-00

1
Out of stock

61

PROTECTOR 1

85L-77551-00-00

1
Out of stock

62

PROTECTOR 2

85L-77552-00-00

1
Out of stock

63

WASHER, PLATE 8067717800

90201-05029-00

—
Out of stock

64

NUT, NYLON

95707-05300-00

—
Out of stock

65

BUSH, RUBBER 2

8AB-77516-01-00

1
Out of stock

66

RIVET(81E)

90269-05055-00

—
Out of stock

67

HOLDER, LATCH

8V0-77175-00-00

—
Out of stock

68

PLATE

4U5-2176E-00-00

—
Out of stock

69

BRACKET 3

8AB-2196F-00-00

1
Out of stock

70

NUT

83R-77144-00-00

—
Out of stock

71

BOLT, FLANGE

95812-06010-00

—
Out of stock

72

LABEL, CAUTION

8AB-1417F-00-00

1
Out of stock

72

LABEL, CAUTION

8BP-1417F-00-00

1
Out of stock
